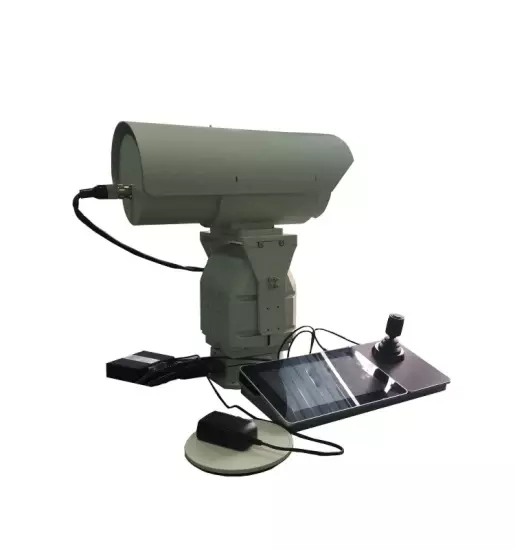

Long Range Thermal Imaging IP Camera

Model NO. TIR185R Sensor CCD Kind Autofocus Lens Certification CE, FCC, RoHS, ISO9001: 2000 Feature Waterproof / Weatherproof, Mini Size Effective Distance Over 1000m Sensor Size 1/3 inch Remote Control With Remote Control Thermal Detection Distance 4320m for Human, 11880m for Vehicle Thermal Recognition Distance 1080m for Human, 29700m for Vehicle Thermal Lens 36-180mm, 5X Optical Zoom Detector Uncooled Fpa Detector(Vox) Thermal Lens F Value F 1.2 Thermal Lens Control Electric Focus, Auto Focus Pixel 324×256, Pixel 25µm Protection Degree IP66 Size 440mm×213mm×217mm Transport Package Carton / Wooden Case Specification 7.5kg Trademark CZVZ Origin Shandong Province, China Production Capacity 1000 Units / Month

Packaging & Delivery

Package Size 45.00cm * 40.00cm * 35.00cm Package Gross Weight 25.000kg

Product Description

1  Specifications  Monitoring distanceObjectPeople(1.8m×0.5m)Vehicle(2.3m×2.3m)Detect distance4320m11880mRecognize distance1080m2970mIdentification distance540m1440mThermal lensFocal length36~180mm,5x optical zoomFOV2.5°×2.0°~12.7°×10.2°F1.2Lens controlElectronic zoom/focus(auto focus is optional)DetectorDetector typeUncooled FPA detector(vox)Pixel324×256,pixel 25µmSpectrum8~14μmNETD≤50mKFrame25HzNUCAuto/Manual/Background correctionImage processDDE,pseudo colorVideo outputPALInterfacePower supply interfaceDC12VOther interfaceRS485,BNC video outputEnvironmental indicatorsWorking temperature-25ºC~+55ºCStorage temperature-40ºC~+65ºCInternational protectionIP66Anti-vibrationGB/T 4857.10-2005Anti-impactGB/T 15412-94 Free drop test methodAnti-thunder2000VPowerPower supplyDC12V(attached AC220V/DC12V power adapter)Power consumption≤8WPhysical featuresWeight≤7KgSize440mm×213mm×217mm(L×W×H,contain sunshield cover)InstallationOutdoor base install 2  Product Features High resolution uncooled microbolometer infrared focal plane arrays,vox 25µm or 17 µm pixel,image quality fine,observe small target more clearly,further detection distance High sensitivity, NETD can reach 50mk and frame at 25Hz Word originate 36~180mm continuous zooming,can search in a wide range as well as identify target far,don't lost target Image noise reduction processing,add DDE function; output hot white/ hot black/pseudo color Low power consumption, quick start-up, stable performance, image clearly with high uniformity RS 485 interface control, analog video signal output Simple operation,easy to use and maintain Precision casting aluminium alloy shell,sealed and waterproof,nitrogen inside, anti-harsh environment,overlength working lifetime 3 Our Services (1)  We generally offer one year warranty. Extended warranty is also available.  (2) Life-long technical support. Professional technical team and salesperson help you with troubleshooting procedures any time when needed. (3) We accept OEM. (4) We offer customized product.    4 Company Introduction China CZVZ Optics & Electronics Co., Ltd, which was founded in 2004, is a leading night vision equipment and rugged information equipment supplier, as well as a relying construction company of Shandong Province Academician Workstation and Night Vision Surveillance Engineering Technology Research Center. CZVZ adheres to independent innovation, developed the world's first laser night vision camera and the first uncooled continuous zoom infrared thermal imaging camera with independent intellectual property rights, its synchronous zoom laser night vision technology and continuous zoom thermal imaging technology have reached international advanced standard level, possess the world's largest market share in laser night vision market. CZVZ's laser night vision and infrared thermal imaging products have been widely used in national defense, safe cities, railways, highways, forest fire, oil and other fields, achieved all-weather surveillance, provided technical support for the maintenance of national security and social stability. CZVZ's rugged information equipment have been widely used in land, sea, air, the Second Artillery Corps, armed police and other branches of the military, greatly promoted the national defense information technology. In addition to domestic market, the company's products have been exported to more than 40 countries and regions all over the world. CZVZ always adheres to "military technology for civilian use " and "joint development of military products and civilian products" strategy, mastered the key technology in optics and rugged computer field, possess complete qualification for research and production of military equipment, directed or participated in a number of military research and production tasks. CZVZ insists on the belief "growing up with customers and employees" and ready to make more contribution to national defense and public security.
