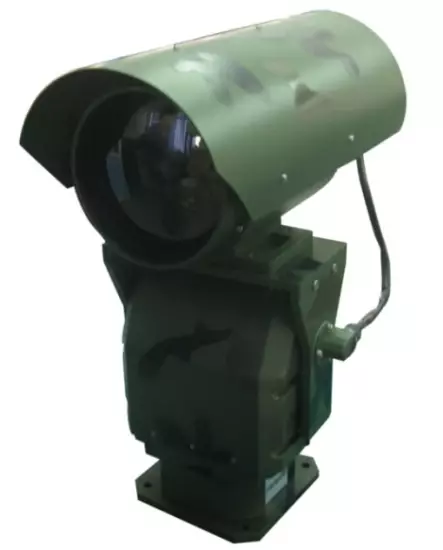

Long Range Surveillance Security Thermal Imaging Camera

Model NO. SHR-HTIR185RE Sensor Vox HDMI Format PAL Video Output Horizontal Resolution 640X480 Resolution Kind Auto / Manual Certification CE, FCC Feature Waterproof / Weatherproof Effective Distance ≧30m Sensor Size Same as Lens Sizse Remote Control With Remote Control Transport Package Aluminum Alloy Box Specification CE FCC Trademark can OEM Origin Shandong Province, China Production Capacity 2000 Units / Month

Product Description

Product features                                                                *High resolution uncooled microbolometer infrared focal plane arrays,vox * 25µm or 17 µm pixel,image quality fine,observe small target more clearly,further detection distance * High sensitivity, NETD can reach 50mk and frame at 25Hz * Word originate 36~180mm continuous zooming,can search in a wide range as well as identify target far,don't lost target * Image noise reduction processing,add DDE function,AGC; output hot white/ hot black/pseudo color * Low power consumption, quick start-up, stable performance, image clearly with high uniformity * RS 485 interface control, analog video signal output * Simple operation,easy to use and maintain * Precision casting aluminium alloy shell,sealed and waterproof,nitrogen inside, anti-harsh environment,overlength working lifetime Main Use                                                               Frontier and coast defense,Border defense,Oilfields,Railway,Airports,Harbors, Armored monitoring,large areas real-time monitoring day & night. Technical Indicators                                                      Monitoring distanceObjectPeople(1.8m×0.5m)Vehicle(2.3 m×2.3 m)Detect distance6000m16600mRecognize distance1700m4400mIdentification distance850m2200mThermal lensFocal length36~180mm,5x optical zoomFOV2.5°×2.0°~12.7°×10.2°F1.2Lens controlElectronic zoom/focus(auto focus is optional)DetectorDetector typeUncooled FPA detector(vox)Pixel640×512,pixel 17µmSpectrum8~14μmNETD≤50mKFrame25HzNUCAuto/Manual/Background correctionImage processDDE,10 kinds of pseudo colorVideo outputPAL  Pan-tilt              Pan-tiltRotating anglePan:0°~ 360°continuous;Tilt:+30°~ -45°Rotating speedPan:0.1°~9°/S;Tilt:0.1~4°/SPresettings255AgreementPelco-D,Pelco-P OptionalBaud rate2400/4800/9600/19200 bps OptionalInterfaceRS485Power supplyAC24V±10%,50HzPower consumption≤30WWorking temperature-25ºC~+55ºCStorge temperature-40ºC~+65ºCLoad capacity20kgWeight10KgSize265mm×180mm×315mm(L×W×H)InterfacePower supply interfaceDC12VOther interfaceRS485,BNC video outputEnvironmental indicatorsWorking temperature-25ºC~+55ºCStorage temperature-40ºC~+65ºCInternational protectionIP66Anti-vibrationGB/T 4857.10-2005Anti-impactGB/T 15412-94 Free drop test methodAnti-thunder2000VPowerPower supplyDC12V(attached AC220V/DC12V power adapter)Power consumption≤8WPhysical featuresWeight≤7KgSize440mm×213mm×217mm(L×W×H,contain sunshield cover)InstallationOutdoor base install  Effect demo  Application Our Services (1)  We generally offer one year warranty. Extended warranty is also available.  (2) Life-long technical support. Professional technical team and salesperson help you with troubleshooting procedures any time when needed. (3) We accept OEM. (4) We offer customized product.    Company Introduction China CZVZ Optics & Electronics Co., Ltd, which was founded in 2004, is a leading night vision equipment and rugged information equipment supplier, CZVZ adheres to independent innovation, developed the world's first laser night vision camera and the first uncooled continuous zoom infrared thermal imaging camera with independent intellectual property rights, its synchronous zoom laser night vision technology and continuous zoom thermal imaging technology have reached international advanced standard level, possess the world's largest market share in laser night vision market.
