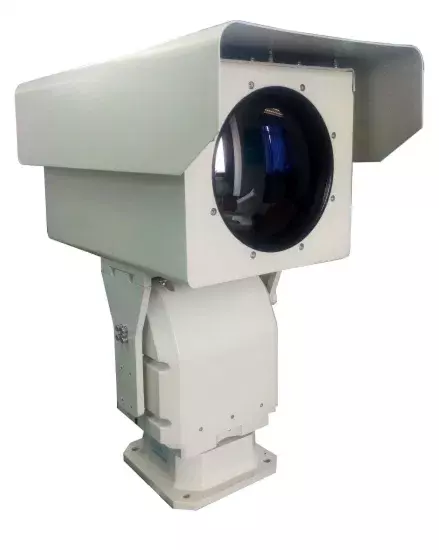

Long Range PTZ Thermal IR Camera

Model NO. SHR-HTIR210R Sensor Vox HDMI Format IP/BNC Horizontal Resolution 640*512 Kind Autofocus Lens Certification CE, FCC, CCC, RoHS, ISO9001: 2000 Feature Waterproof / Weatherproof, High Definition, Vandal-proof, Auto BLC Effective Distance 16km Vehicle/6km People Sensor Size Thermal Camera Remote Control Remote Control Optional Distance 16km to Vehicle Detector Uncooled 642X512 Vox Thermal Lens 20-200mm Zoom Lens Warranty One/Two Year Transport Package Wooden Case/Carton Specification CE, FCC Trademark SHEENRUN/OEM Origin China Production Capacity 100 Units / Month

Product Description

Introduction 20~200mm 10X continuous zoom, can search in a wide range as well as identify target far.  640×512 High resolution uncooled microbolometer infrared focal plane arrays, vox High sensitivity, NETD can reach 50mk and frame at 25Hz DDE function, thermal image hot white/ hot black/pseudo color Low power consumption, quick start-up, stable performance, image clearly with high uniformity RS485interface control, analog video signal output / IP output Simple operation, easy to use and maintenance Technical Indicators DistanceObjectPeople(1.8m×0.5m)Vehicle(2.3m×2.3m)Detect distance5600m16000mRecognize distance1400m4000mIdentification distance700m2000mThermal lensFocal length20~200mm, 10X optical zoomFOV3.1°×2.5°~30.4°×24.6°F1.0-1.2Lens controlElectronic zoom/focus, auto focusThermal detectorDetector typeUncooled FPA detector(vox)Pixel640×512Spectrum8~14μmNETD≤50mKFrame25HzNUCAuto/Manual/Background correctionImage processDDE, pseudo colorVideo outputPALInterfacePower supply interfaceDC12VOther interfaceRS485, BNC video output (IP optional)Environmental indicatorsWorking temperature-25ºC~+55ºCStorage temperature-40ºC~+65ºCInternational protectionIP66Anti-vibrationGB/T 4857.10-2005Anti-impactGB/T 15412-94 Free drop test methodAnti-thunder2000VPowerPower supplyDC12V(attached AC220V/DC12V power adapter)Power consumption≤10WPhysical featuresWeight≤15KgSize530mm×275mm×245mm(L×W×H, contain sunshield cover)InstallationOutdoor base install

Application: Boarder security surveillance patrol Coastal & sea port long range monitor & search rescue Military/Police mission assistance Forest Fireproof monitor Oilfields, Railways, Airports, Harbors, Large areas real-time monitor

Package & Delivey  Delivery: Air Express, DHL, TNT, FedEx, UPS, Forwarder, etc.       Company photos
