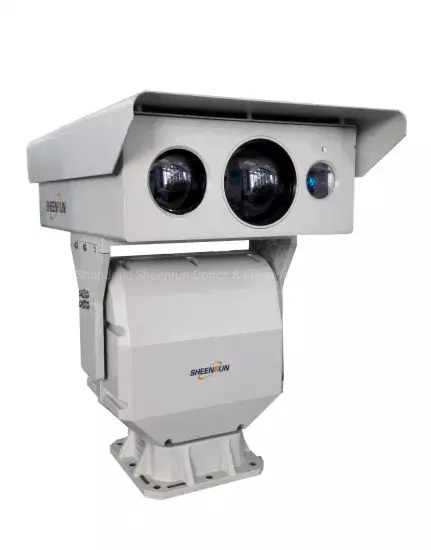

Long Range PTZ Night Vision Three Sensor Infrared Laser Thermal Imaging Camera for Coastal Security

Model NO. SHR-WHLV1520ATIR155R Sensor CMOS HDMI Format 1080P Horizontal Resolution 600tvl Kind Autofocus Lens Certification CE, FCC, ISO9001: 2000 Feature Waterproof / Weatherproof, High Definition, Vandal-proof Effective Distance ≧30m Sensor Size 1/3 inch Remote Control With Remote Control Monitor Distance Thermal Camera 12km Thermal Lens Focal Length 30~150mm Thermal Lens F Value 1.0 Detector Effective Pixels 324X256 Laser Illuminating Lens 60X Zooming Laser Telephoto Lens Laser Illuminator Power 10W Illuminator Wave Length 810nm Visible Light Camera Lens 15.6~500mm Video Code Format H.264/H.265/Mjpeg Pantilt Preset 255 Pantilt Cruising Function 8 Paths Protection Grade IP66 Transport Package Carton/Wooden Package Specification 240mmx374mmx243mm Trademark CZVZ Origin Shandong, China Production Capacity 1000set/Month

Product Description

Long Range PTZ Night Vision Three Sensor Infrared Laser Thermal Imaging Camera for Coastal Security   Features: > Three spectral imaging design, thermal imaging camera detecting far and laser night vision range large> Adopting continuous zooming thermal imaging technology> Infrared detector with high temp sensitivity, with min temp resolution of 50mK> Synchronous zooming laser illuminating system, long illuminating distance, large illuminating range, realizing monitoring in 0Lux complete black> Day and night low illuminance 2 megapixels color to black camera, day and night continuous monitoring> MCIC multi-tube core fusion mixed mode light homogenization technology> Supporting fog penetration, backlight compensation, multistage wide dynamic> Optional auto focusing function, realizing multiple focusing mode and triggering mode> Optional thermal imaging camera presetting function, remembering FOV of each preset bit, enhancing working efficiency> 3D locating function, can realize frame selection magnifying function and clicking to center function, reducing operating difficulty, enhancing device usability> External MMA fine adjustment mechanism, no need to disassemble to complete laser alignment adjustment  Technical Data:                      Model                                                   WHLV1520ATIR155RMonitoring distance Visible light Night vision: 1500m           Day vision: 3000mThermal ImagingDetection distanceHuman: 3600m, Vehicle: 9900mRecognition distanceHuman: 900m,   Vehicle: 2470mIdentification distanceHuman: 450m,   Vehicle: 1200mLaser illuminatorPower10WIlluminating lens60* zooming laser telephoto lensWave length810nmAngle0.5°~30°continuous changingLight homogenizationMCICHight Definition cameraLens Focal length15.6~500mmLens FOV0.8°~25°Lens Auto focusingsupporting(optional)Lens Fog penetrationsupporting(optional)Sensor1/1.8" Progressive Scan CMOSCoded formatH.264/H.265/MJEPGVideo resolution1080P,CIF,supporting three streamVideo bit rate32Kbps~16MbpsVideo frame rate1~25f/s(50Hz),1~30f/s(60Hz)Infrared lensFocal length30~150mmFOV3.1°×2.4°~15.2°×12.2°F valueF1.0~F1.2Lens controlelectric zooming, electric focusing(auto focusing optional)DetectorDetector typeuncooled microbolometer focal plane array(VOx)Effective pixels324×256Spectral range8~14μmTemp sensitivity≤[email protected],300KFrame rate25HzImage processingDDE, pseudo colorPantiltAngleHorizontal 360°continuous rotation,pitching: -60°~+20°SpeedHorizontal 0.01°~12°/s,pitching 0.01°~8°/sPresets255Anti-lightning2000VCruising function8 paths,10 bits each pathCarrying capacity50kg(top load)InterfaceNetwork interface1x10Base-T/100Base-TX,RJ45Power supply interfaceAC 24V Other interfaceRS422 communication,BNC video outputEnvironmental indicatorsWorking temperature-25ºC~÷55ºCStorage temperature-40ºC ~÷65ºCProtection levelIP66Power supplyPowerAC24V±10%,appendant AC220V~AC24V/8A water proof power supplyConsumption≤150WPhysical featuresWeight45kgInstallation methodOutdoor pedestal mounting Application:     High altitude monitoring system                                  Railway monitoring system                                  Harbor monitoring system         Package&Shipment:   Wooden / carton package means will be supplied to ensure the transport safety.   FAQ: 1. Q: Is your company manufacturer?           Yes, CZVZ is the thermal camera and laser camera manufacturer since year 2004. 2. Q: Can you supply OEM service?          Yes, CZVZ can do OEM products as customer's requirement. 3. Q: What is the product's lead time?          It is confirmed by the order quantity. 4. Q: What is the warranty?          It is generally 1 year warranty, extend warranty is available. 5. Q: How will the product be shipped?          For sample order, it will be shipped by DHL, FEDEX, UPS or TNT.          For bulk order, we can arrange the shipment as customer requirement. 6. Q: How about your after sale service?          Any problem about our product, you can contact with us at any time. Our team will supply technical service for you. Company Introduction: CZVZ company, which was founded in year 2004, is one of the largest manufaturer of long range thermal imaging camera and laser night vision camera, as well as a relying Academician serveillance Engineering Technology Research Center in China. CZVZ adheres to independent innovation, which developed the world's first laser night vision camera,  and the continuous zoom infrared thermal imaging technology has reached the international advanced standard level.  The laser night vision and infrared thermal imaging products have been widely used in nation defense, safe cities, railways, highways, forest fire, oil and other fields, achieved all-weather surveillance, provided technical support for the maintenance of national security and socal stability. The company photo:  The exhibition:
