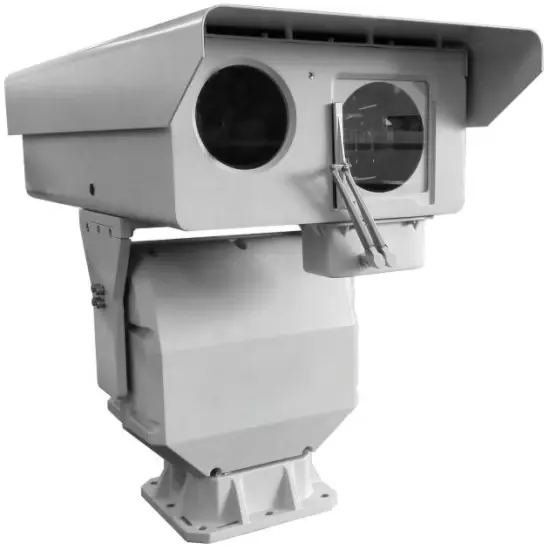

Long Range PTZ IR Thermal Camera 16km Security Camera Price

Model NO. SHR-HLV1520YADIR155A Sensor CMOS HDMI Format 1080P Horizontal Resolution 480tvl Kind Autofocus Lens Certification CE, FCC, ISO9001: 2000 Feature Waterproof / Weatherproof, High Definition Effective Distance ≧30m Sensor Size 1/3 inch Remote Control Remote Control Protection Grade IP66 Thermal Lens F Value 1.0 Monitor Distance Thermal Camera 12km Pantilt Cruising Function 8 Paths Laser Illuminator Power 10W Thermal Lens Focal Length 30~150mm Visible Lens F=4.5~135mm Power Supply Interface DC12V Installation Method Outdoor Pedestal Mounting Transport Package Carton/Wooden Package Specification 240mmx500mmx243mm Trademark CZVZ Origin Shandong, China Production Capacity 1000piece/Month

Packaging & Delivery

Package Size 64.00cm * 38.00cm * 58.00cm Package Gross Weight 25.500kg

Product Description

Product Description

Product Features

 Synchronous zooming laser illuminating system, long illuminating distance, large illuminating range, realizing monitoring in 0Lux complete black

Day and night low illuminance 2 megapixels color to black camera, day and night continuous monitoring

MCIC multi-tube core fusion mixed mode light homogenization technology, no speckle and dark ring, high edge definition

Supporting fog penetration, backlight compensation, multistage wide dynamic

Optional auto focusing function, realizing multiple focusing mode and triggering mode

Supporting camera back focal length fine adjustment technology and camera remote debugging

Supporting long focal length speed limit and 3D locating function

Abundant network protocol and good network applicability, adapting all kinds of network environment

External MMA fine adjustment mechanism, no need to disassemble to complete laser alignment adjustment

Professionally designed shell, artistic, light, firm, anti-high temp, anti-corrosion, water proof, anti-acid rain



Technical Data:

SHR-HLV1520YADIR155AMonitor distanceObjectPeople(1.8m×0.5m)Vehicle(2.3×2.3)Detection distance4050m11400mRecognition distance1012m2850mIdentification distance506m1425mDay vision5000mHD cameraFocal lens15.2~500mmFOV0.8°~25.6°Aperture TypeAuto ApertureFocusManual focus / auto focusCameraSensor1/1.8"Progressive Scan CMOSCamera controlAuto gain control, auto white balance, auto backlight compensation, supporting manual and auto day and night mode switchPenetrate fogOn/Off optionalPost-focusingSupport, Remote-testNoise reduction3D Digital noise reductionCoding formatH.265/H.264/MJPEGVideo resolution1080p, three stream supportedVideo frame rate50Hz:25fps(1920×1080),25fps (1280×720)60Hz:30fps(1920×1080),30fps (1280×720)Infrared lensFocal length30~150mm,5x optical zoomingFOV2.93°x2.20°~14.59°x10.97°F valueF1.0~F1.2Lens controlelectric zooming, electric focusing (auto focusing optional)DetectorDetector typeUncooled microbolometer focal plane arrayEffective pixels384x288Spectral range8~14μmTemp sensitivity≤[email protected],300KFrame rate25HzImage processingDDE, pseudo colorPan tiltCarrying capacity50kg(top load)AngleHorizontal 360°continuous rotation, pitching -45°~+45°SpeedHorizontal 0.01°~20°/s, pitching 0.1°~10°/sPreset bits255Preset positioning accuracy±0.1°Cruising2 paths,64 bits each pathAuto-scan1 pathInterfacePower supply interfaceDC30VNetwork interface1×10Base-T/100Base-TX,RJ45Environment indicatorsWorking temp-25ºC~+55ºCStorage temp-40ºC~+65ºCProtection gradeIP66Power supplyWhole machine power supply90VAC~305VAC to DC30V water proof power supplyWhole machine power consumption≤120WPhysical featuresDimension637×377×573(L×W×H)mmWhole machine weight≤45kgInstallation methodOutdoor pedestal mounting   Effect Demo   Application for various fields: safe city monitoring, forest fire-proof monitoring, high attitude monitoring, railway monitoring, harbor monitoring, oilfield monitoring, freeway monitoring etc. Company Profile

China CZVZ Optics & Electronics Co., Ltd, which was founded in 2004, is a leading night vision equipment and rugged information equipment supplier, as well as a relying construction company of Shandong Province Academician Workstation and Night Vision Surveillance Engineering Technology Research Center. CZVZ adheres to independent innovation, developed the world's first laser night vision camera and the first uncooled continuous zoom infrared thermal imaging camera with independent intellectual property rights, its synchronous zoom laser night vision technology and continuous zoom thermal imaging technology have reached international advanced standard level, possess the world's largest market share in laser night vision market.

Certificate
