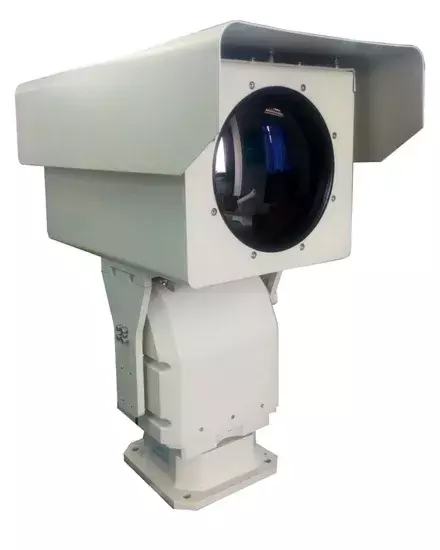

Long Range Pan Tilt Scanner Surveillance Thermal Imaging Camera

Model NO. SHR-HTIR312A Sensor Uncooled Fpa Detector HDMI Format 1080P Horizontal Resolution 1024X768 Resolution Kind Autofocus Lens Certification CE, FCC, ISO9001: 2000 Feature Waterproof / Weatherproof, High Definition, Vandal-proof Effective Distance ≧30m Sensor Size 1/3 inch Remote Control With Remote Control Detection Distance Human: 8km, Vehicle: 12km Identification Human:1690m, Vehicle: 4000m Thermal Lens F Value 1.0 Thermal Lens Focal Length 25~300mm, 12X Optical Zoom Thermal Lens Control E Zoom/Focus(Auto Focus Is Optional) Detector Type Uncooled Fpa Detector Detector Resolution 1024X768 Netd Less Than 50mk Video Output PAL/NTSC Pantilt Preset 200 Protection Grade IP66 Transport Package Carton/Wooden Package Specification 265mmx180mmx432mm Trademark CZVZ Origin Shandong, China Production Capacity 1000set/Month

Packaging & Delivery

Package Size 26.50cm * 21.00cm * 60.00cm Package Gross Weight 45.000kg

Product Description

Long Range Pan Tilt Scanner Surveillance Thermal Imaging Camera   Features: > 1024x768 High resolution uncooled microbolometer infrared focal plane array, vox > 14um pixel, image quality fine, observe small target more clearly, further detection distance > high sensitivity, NETD can reach 50mK and frame at 30Hz > 12x continuously optical zoom, can search in a wide range as well as identify target far, won't lose target > Image noise reduction processing, add DDE function;  output hot white/hot black/psudo color > Lower power consumption, quick start-up,stable performance, image clearly wih high uniformity > Standard network interface control, HD video signal output > Simple operation, easy to use and maintain > Precision casting aluminum alloy shell, sealed and waterproof, nitrogen inside, anti-harsh environment, super long working lifetime  Technical Data:                      Model                                                     SHR-HTIR312A Monitoring distance Object Human(1.8mx0.5m) Vehicle(2.4x2.4m) Detection 8000mm 12000m Recognition 3000mm 8000m Identification 1690mm 4000m Thermal lens Focal length 25~300mm, 12x optical zoom FOV 2.7°x 2.05° ~ 32.86°x24.26° Spatial resolution 0.047~0.56mrad Lens control E-zoom, E-focus(auto focus is optional) Detector Type Uncooled microbolometer FPA detector (vox) Resolution 1024x768 Spectrum 8-14μm NETD ≤[email protected],300K Frame rate 30Hz FFC Auto/manual/scene correction Image process DDE, pseudo color Video output PAL Pan-tilt Load capacity 18kg Rotate angle  Pan: 0°~360°; Tilt: +20°~-60° Rotate speed Pan: 0.1°/s ~9°/s; Tilt: 0.1°/s ~ 4°/s Preset 200, 8paths, each has 10 presets Baud rate 2400/4800/9600/19200 bps optional Interface RS485/RS422 Protocol Pelco-D, Pelco-P optional Power supply AC 24V±20%, 50/60Hz; DC28V±20% Power consumption ≤40W Protection level IP66 Interface Power supply interface DC12V Other interface VGA Environmental indicators Working temperature -25ºC~÷55ºC Storage temperature -40ºC ~÷65ºC Whole machine power supply AC24V±20% Whole machine power consumption ≤80W Physical features Weight ≤50kg Installation Outdoor base installation Application:  It is widely used for the workshop monitoring, power station inspection, high speed railway,  road patrol, forest anti fire, coastal defense, oilfield monitoring and commerce etc.     Harbor Monitoring System                                    Patrol Vehicle Surveillance System                           Oilfield Monitoring System         Package&Shipment:   Wooden / carton package means will be supplied to ensure the transport safety.   FAQ: 1. Q: Is your company manufacturer?           Yes, CZVZ is the thermal camera and laser camera manufacturer since year 2004. 2. Q: Can you supply OEM service?          Yes, CZVZ can do OEM products as customer's requirement. 3. Q: What is the product's lead time?          It is confirmed by the order quantity. 4. Q: What is the warranty?          It is generally 1 year warranty, extend warranty is available. 5. Q: How will the product be shipped?          For sample order, it will be shipped by DHL, FEDEX, UPS or TNT.          For bulk order, we can arrange the shipment as customer requirement. 6. Q: How about your after sale service?          Any problem about our product, you can contact with us at any time. Our team will supply technical service for you. Company Introduction: CZVZ company, which was founded in year 2004, is one of the largest manufaturer of long range thermal imaging camera and laser night vision camera, as well as a relying Academician serveillance Engineering Technology Research Center in China. CZVZ adheres to independent innovation, which developed the world's first laser night vision camera,  and the continuous zoom infrared thermal imaging technology has reached the international advanced standard level.  The laser night vision and infrared thermal imaging products have been widely used in nation defense, safe cities, railways, highways, forest fire, oil and other fields, achieved all-weather surveillance, provided technical support for the maintenance of national security and socal stability. The company photo:  The exhibition:
