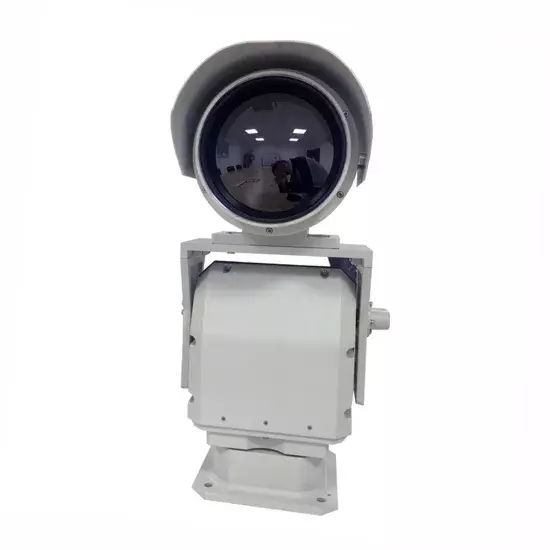

Long Range IP Infrared PTZ Thermal Night Vision Camera

Model NO. htir185r Sensor CCD Kind Autofocus Lens Certification CE, FCC, ISO9001: 2000 Feature Waterproof / Weatherproof, High Definition, Auto BLC Effective Distance ≧30m Remote Control With Remote Control Specification CE, FFC Trademark SHEENRUN Origin Shandong Jinan Production Capacity 500PCS/Month

Product Description

Product features                                                               1. High resolution uncooled microbolometer infrared focal plane arrays,vox 2. 25µm or 17 µm pixel,image quality fine,observe small target more clearly,further detection distance 3. High sensitivity, NETD can reach 50mk and frame at 25Hz 4. Word originate 36~180mm continuous zooming,can search in a wide range as well as identify target far,don't lost target 5. Image noise reduction processing,add DDE function,AGC; output hot white/ hot black/pseudo color 6. Low power consumption, quick start-up, stable performance, image clearly with high uniformity 7. RS 485 interface control, analog video signal output  8. Simple operation,easy to use and maintain 9. Precision casting aluminium alloy shell,sealed and waterproof,nitrogen inside, anti-harsh environment,overlength working lifetime Main Use                                                               Frontier and coast defense,Border defense,Oilfields,Railway,Airports,Harbors, Armored monitoring,large areas real-time monitoring day & night. Technical Indicators                                                      Monitoring distance Object People(1.8m×0.5m) Vehicle(2.3 m×2.3 m) Detect distance 5000m 15000m Recognize distance 1250m 3500m Identification distance 625m 1750m Thermal lens Focal length 36~180mm,5x optical zoom FOV 2.5°×2.0°~12.7°×10.2° F 1.2 Lens control Electronic zoom/focus/auto focus Detector Detector type Uncooled FPA detector(vox) Pixel 640×512,pixel 17µm Spectrum 8~14μm NETD ≤50mK Frame 25Hz NUC Auto/Manual/Background correction Image process DDE,10 kinds of pseudo color Video output PAL                 Pan-tilt Rotating angle Pan:0°~ 360°continuous;Tilt:+30°~ -45° Rotating speed Pan:0.1°~9°/S;Tilt:0.1~4°/S Presettings 255 Agreement Pelco-D,Pelco-P Optional Baud rate 2400/4800/9600/19200 bps Optional Interface RS485 Power supply AC24V±10%,50Hz Powerconsumption ≤30W Working temperature -25ºC~+55ºC Storge temperature -40ºC~+65ºC Load capacity 20kg Weight 10Kg Size 265mm×180mm×315mm(L×W×H) Interface Power supply interface DC12V Other interface RS485,BNC video output Environmental indicators Working temperature -25ºC~+55ºC Storage temperature -40ºC~+65ºC International protection IP66 Anti-vibration GB/T 4857.10-2005 Anti-impact GB/T 15412-94 Free drop test method Anti-thunder 2000V Power Power supply DC12V(attached AC220V/DC12V power adapter) Power consumption ≤8W Physical features Weight ≤7Kg Size 440mm×213mm×217mm(L×W×H,contain sunshield cover) Installation Outdoor base install
