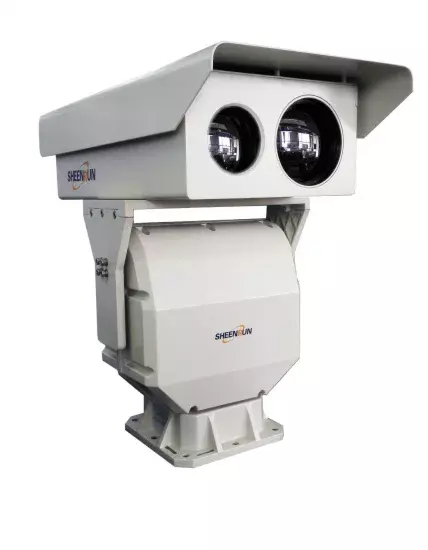

Long Range Hybrid PTZ IR Thermal Camera (thermal and visible)

Model NO. SHR-HLV3020TIR185 Sensor CMOS & Uncooled Fpa HDMI Format 1080P Horizontal Resolution 540tvl Kind Autofocus Lens Certification CE, FCC, ISO9001: 2000 Feature Waterproof / Weatherproof, High Definition, Vandal-proof Effective Distance 14.4km Sensor Size 1/3 inch Remote Control With Remote Control Day Camera Focal Lens 12.5~750mm Day Camera Fov 0.5°~28.7° Day Camera Sensor Type 1/2′′progressive Scan CMOS Day Camera Coding H.264/Mjpeg/MPEG4 Thermal Camera Lens 36~180mm Thermal Camera Fov 2.5°×2.0°~12.7°×10.2° Thermal Camera F Value F1.0~F1.2 Thermal Camera Ifov 0.69~0.14mrad Thermal Detector Uncooled Microbolometer Focal Plane Array(Vox) Thermal Camera Resolution 384X288 (640X512 Optional) Thermal Camera Spectrum 8~14μm PTZ Angle P: 0~360° T: -60°~+20° PTZ Load 50kg Interface 1×10base-T/100base-Tx,RJ45 Working Temperature -25ºC~+55ºC Transport Package Carton Specification 400mm× 400mm× 500mm Trademark CZVZ Origin Shandong Province, China Production Capacity 200 Units / Month

Packaging & Delivery

Package Size 65.00cm * 56.00cm * 45.00cm Package Gross Weight 45.000kg

Product Description

1 Product Features Adopting continuous zooming thermal imaging technology, imaging clearly, can search in large area and recognize objectives in long distance Infrared detector with high temp sensitivity, with min temp resolution of 50mK Day and night 2 megapixels low illuminance color camera, realizing day and night continuous monitoring Optional auto focusing function, realizing multiple focusing mode and triggering mode Optional thermal imaging camera presetting function, remembering FOV of each preset bit, enhancing working efficiency 3D locating function, can realize frame selection magnifying function and clicking to center function, reducing operating difficulty, enhancing device usability Professionally designed shell, artistic, light, firm, anti-high temp, anti-corrosion, water proof, anti-acid rain   2 Specification Detection distanceVisible light5000mThermal imagingobjecthuman(1.8m×0.5m)vehicle(2.3m×2.3m)Detection distance5040m14400mRecognition distance1260m3600mIdentification distance630m1800mHigh definition lensFocal length12.5~750mmFOV0.5°~28.7°Double lenssupporting(optional)Fog penetrationsupporting(optional)Auto focusingsupporting(optional)Camera   Sensor type1/2''Progressive Scan CMOSCoding formatH.264/MJPEG/MPEG4Video resolution1080P,CIF,supporting three streamVideo bit rate32Kbps~16MbpsVideo frame rate1~25F/S(50Hz),1~30F/S(60Hz)Infrared lensFocal length36~180mmFOV2.5°×2.0°~12.7°×10.2°F valueF1.0~F1.2Lens controlelectric zooming, electric focusing, auto focusing(optional)Spatial resolution0.69~0.14mradDetectorDetector typeuncooled microbolometer focal plane array(VOX)Effective pixels384×286Spectral range8~14μmTemp sensitivity≤[email protected],300KFrame rate25HzImage processingDDE, pseudo colorPan-tiltCarrying capacity50kg(top load)AngleHorizontal 360°continuous rotation,pitching -60°~+20°speedHorizontal 0.01°~12°/s,pitching 0.01°~8°/sPreset bit255Auto cruising8 paths, 10 bits each pathAuto scan1 pathAnti-lightning2000VinterfacePower supply interfaceDC24VNetwork interface1×10Base-T/100Base-TX,RJ45Video controlling interfaceRS422communication, BNC video outputEnvironment indicatorsWorking temp-25ºC~+55ºCStorage temp-40ºC~+65ºCProtection gradeIP66Power supplyWhole machine power supplyAC24V±10%,appendant AC220V~AC24V/5A water proof power supplyWhole machine power consumption≤120WPhysical featuresInstallation methodOutdoor pedestal mounting  3 Our Services (1)  We generally offer one year warranty. Extended warranty is also available.  (2) Life-long technical support. Professional technical team and salesperson help you with troubleshooting procedures any time when needed. (3) We accept OEM. (4) We offer customized product.    4 Company Introduction China CZVZ Optics & Electronics Co., Ltd, which was founded in 2004, is a leading night vision equipment and rugged information equipment supplier, as well as a relying construction company of Shandong Province Academician Workstation and Night Vision Surveillance Engineering Technology Research Center. CZVZ adheres to independent innovation, developed the world's first laser night vision camera and the first uncooled continuous zoom infrared thermal imaging camera with independent intellectual property rights, its synchronous zoom laser night vision technology and continuous zoom thermal imaging technology have reached international advanced standard level, possess the world's largest market share in laser night vision market.
