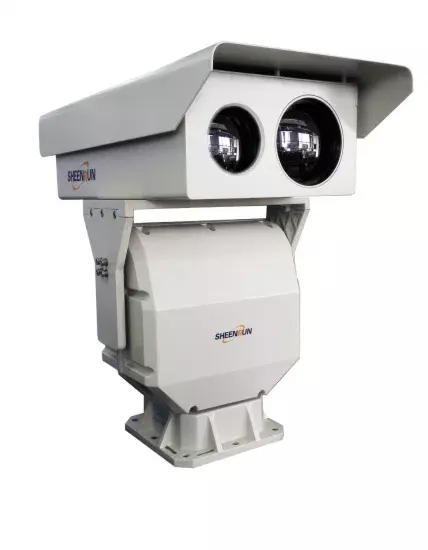

Long Range Day/Night Thermal Dual Sensor PTZ IP Camera

Model NO. SHR-Dual sensor series Sensor CMOS & Uncooled Fpa HDMI Format 1080P Horizontal Resolution 540tvl Kind Autofocus Lens Certification CE, FCC, ISO9001: 2000 Feature Waterproof / Weatherproof, High Definition, Vandal-proof Effective Distance 14.4km Sensor Size 1/3 inch Remote Control With Remote Control Thermal Camera F Value F1.0~F1.2 Thermal Detector Uncooled Microbolometer Focal Plane Array(Vox) Thermal Camera Resolution 384X288 (640X512 Optional) Thermal Camera Spectrum 8~14μm PTZ Angle P: 0~360° T: -60°~+20° PTZ Load 50kg Interface 1×10base-T/100base-Tx,RJ45 Working Temperature -25ºC~+55ºC Transport Package Carton Specification 400mm× 400mm× 500mm Trademark CZVZ Origin Shandong Province, China Production Capacity 200 Units / Month

Product Description

1 Product Features Adopting continuous zooming thermal imaging technology, imaging clearly, can search in large area and recognize objectives in long distance Infrared detector with high temp sensitivity, with min temp resolution of 50mK Day and night 2 megapixels low illuminance color camera, realizing day and night continuous monitoring Optional auto focusing function, realizing multiple focusing mode and triggering mode Optional thermal imaging camera presetting function, remembering FOV of each preset bit, enhancing working efficiency 3D locating function, can realize frame selection magnifying function and clicking to center function, reducing operating difficulty, enhancing device usability Professionally designed shell, artistic, light, firm, anti-high temp, anti-corrosion, water proof, anti-acid rain   2 Specification   ModelHLV1020DIR104HLV1520DIR155HLV3020DIR185HLV4020DIR210HD camera Monitoring DistanceDay:3kmDay:5kmDay:8kmDay:10kmThermal Camera Monitoring DistanceHuman(1.8x0.5m)Detect:2,800mRecognize:7000mIdentification:350mDetect:4,200mRecognize:1,050mIdentification:520mDetect:5,040mRecognize:1,260mIdentification:630mDetect:5,600mRecognize:1,400mIdentification:700mVehicle(2.3x2.3m)Detect:8,000mRecognize:2,000mIdentification:1,000mDetect:12,000mRecognize:3,000mIdentification:1,500mDetect:14,400mRecognize:3,600mIdentification:1,800mDetect:16,000mRecognize:4,000mIdentification:2,000mThermal detector384×288 (640x512 optional), 17μm; Ucooled FPA Vox; 8~14μm/ PAL/ 25HZ; ≤[email protected],300KThermal lens25~100mm, 4x optical zoom4.40°×3.30°~17.46°×13.14°F 1.030~ 150mm, 5x optical zoom2.93°x2.20°~14.59°x10.97°F 1.036~180mm, 5x optical zoom2.44°x1.83°~12.18°x9.15°F 1.0~1.220~ 200mm, 10x optical zoom2.20°x1.65°~21.74°x16.39°F 1.2HD camera1/1.8"Progressive Scan CMOS12.5~400mm1°~33.5°H.264/H.2651080p1920×1080/1280×7201/1.8"Progressive Scan CMOS15.2~500mm0.8°~25.6°H.264/H.2651080p1920×1080/1280×7201/1.8"Progressive Scan CMOS12.5~750mm0.6°~35.0°H.264/H.2651080P1920×1080/1280×7201/1.8"Progressive Scan CMOS16.7~1000mm0.45°~25.0°H.264/H.2651080P1920×1080/1280×720PTZ Pan 360° continuouslyTilt ±45°Pan speed: 0°~20°/sTilt  speed: 0°~10°/s255 presets2 cruise line  3 Our Services (1)  We generally offer one year warranty. Extended warranty is also available.  (2) Life-long technical support. Professional technical team and salesperson help you with troubleshooting procedures any time when needed. (3) We accept OEM. (4) We offer customized product.    4 Company Introduction China CZVZ Optics & Electronics Co., Ltd, which was founded in 2004, is a leading night vision equipment and rugged information equipment supplier, as well as a relying construction company of Shandong Province Academician Workstation and Night Vision Surveillance Engineering Technology Research Center. CZVZ adheres to independent innovation, developed the world's first laser night vision camera and the first uncooled continuous zoom infrared thermal imaging camera with independent intellectual property rights, its synchronous zoom laser night vision technology and continuous zoom thermal imaging technology have reached international advanced standard level, possess the world's largest market share in laser night vision market.
