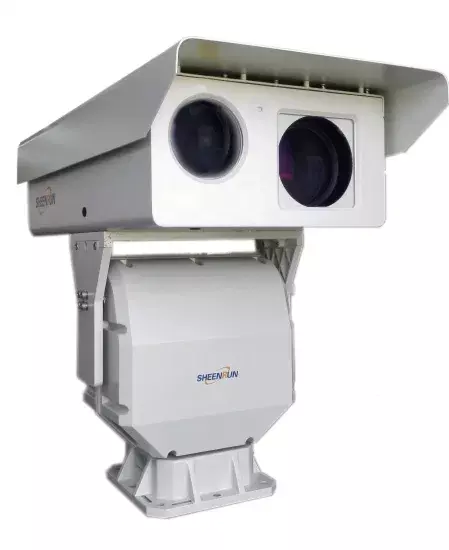

Long Distance10km Electric Focus Security System PTZ Laser Night Vision Camera

Model NO. SHR-HLV4020 Sensor CMOS HDMI Format 1080P Horizontal Resolution 540tvl Kind Auto / Manual Certification CE, FCC, RoHS, ISO9001: 2000 Feature Waterproof / Weatherproof, High Definition Effective Distance 3000m Night Vision, 6500m Day Vision Sensor Size Same as Lens Size Remote Control With Remote Control Focal Length 12.5-750mm, 2X Extender Can Be 25-1500mm Fov 0.5°-28.7° Auto Focus Support Fog Penetration Auto Focus Video Resolution 1080P, CIF, Supporting Three Data Rates Video Bitrate 32kbps-16Mbps Transport Package Wooden/Carton Case Specification CE FCC Trademark CZVZ Origin Shandong Province, China HS Code 8525 Production Capacity 20 Units / Month

Product Description

Product description 1. Synchronous zooming laser illuminating system, long illuminating distance, large illuminating range, realizing monitoring in 0Lux complete black 2. Day and night low illuminance 2 megapixels color to black camera, day and night continuous monitoring MCIC multi-tube core fusion mixed mode light homogenization technology, no speckle and dark ring, high edge definition 3. Supporting fog penetration, backlight compensation, multistage wide dynamic 4. Optional auto focusing function, realizing multiple focusing mode and triggering mode 5. Supporting camera back focal length fine adjustment technology and camera remote debugging 6. Supporting long focal length speed limit and 3D locating function 7. Abundant network protocol and good network applicability, adapting all kinds of network environment 8. External MMA fine adjustment mechanism, no need to disassemble to complete laser alignment adjustment 9. Professionally designed shell, artistic, light, firm, anti-high temp, anti-corrosion, water proof, anti-acid rain  Technical indicator   Monitoring DistanceNight vision4kmmDay vision9~10kmLensFocal length16.7~1000mm  60XIrisF3.5~16Auto irisDC driveFOV0.45°~25°Fog penetratingsupportFocus controlelectronicFocusAuto/manualPresetSupport lens zoom and focus presetinterfaceC/CSCameraSensor1/1.8''Progressive Scan CMOSPixels2MPColor modeIntegration ICR double filter switch between day and nightShutter speedAuto/manualVideo controlAGC, AWB, support day/night mode switch auto/manualFog penetratingON/OFFWDRON/OFFBLCON/OFF and area optionalInterested areaSupport ON/FF, area optionalBack focus adjusting techSupport, remote controlNoise reduction3D digitalCode typeH.264/MJPEG/MPEG4Resolution1080p,Video rate32Kbps~16MbpsFrequency50Hz:25fps(1920×1080),25fps (1280×720) 60Hz:30fps(1920×1080),30fps (1280×720)Character addingCamera number, time, dateImage adjustmentLight, contrast, saturation, sharpInternet protocolTCP/IP/RTP/RTSP/HTTP/DNS/DDNS/DHCP/FTP/NTP/PPPOE/SMTP/UPNPfeaturesSupport heartbeat, video cover, password protected Laser lensFocal lenth100mmHD focus laser lenscoatingMultilayer near-infrared coatingPresetSupport precise potentiometer voltage feedbackFocus way3CAMAxis adjustingOutside MMALaser illuminatorpower15WWavelength810nmLighting angle0.3°~20° continuous zoomLaser switchAuto/manualMQMMMQMM Micro lens waveguide fiber mixed modeEncapsulateSealed NitrogenHeat emissionArray Air-cooled heat emission, inside fanShieldMaterialHigh precision aluminum alloy shellStructureIntegration double windowSurface coatingPTA Tri-proof Coating, Anti-saltfogCoating paintingPTA coating ,  anti sea corrosionPantiltBurden weight50kg(top load)Horizontal angleHorizontal 0°~360°Vertical angle-45°~+45°Pan speed0.01°~20°/sTilt speed0.01°~12°/sPresets200Presets precision±0.1°Auto cruise8 paths, each path can set up 10 presetsAuxiliary switch2Thunder proof2000VSize320mm×206mm×380mm(L×W×H)InterfacePowerAC24VInternet1×10Base-T/100Base-TX,RJ45Environmental indicatorsOperation temperature-25ºC~+55ºCStorage temperature-40ºC~+65ºCInternational protectionIP66Salt fog proof PH6.5~7.2, Continuously spraying 48 hoursPower supplyWhole device power supplyAttached 220VAC~30VAC/6A water proof power supplyWhole device power consumption≤150WPhysical featuresWhole device weight≤45kgInstallationOutdoor base install   Our Service (1) We accept OEM and customization  (2) Spot installation and remote technical support are available. (3) Life-long technical support. Professional technical team and salesperson help you with troubleshooting procedures any time when needed. (4) We generally offer 14months warranty. Extended warranty is also available.  Effect demo
