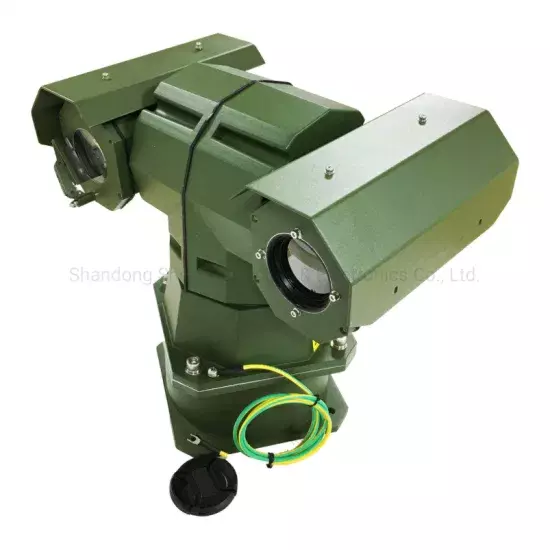

Long Distance Day-Night Vision Zooming IR IP Thermal PTZ Camera

Sensor Uncooled Fpa (Vox) HDMI Format 1080P and 480p Horizontal Resolution 520tvl Kind Autofocus Lens Certification CE, FCC, ISO9001: 2000 Feature Waterproof / Weatherproof, High Definition, Mini Size, Vandal-proof Effective Distance 3.3km Sensor Size 1/2.8"  Remote Control With Remote Control Day Camera 1000m Thermal Human Detect 1350m Thermal Human Recognize 338m Thermal Human Identify 169m Thermal Car Detect 3800m Thermal Car Recognize 950m Thermal Car Idntify 475m Thermal Detector Uncooled Microbolometer Focal Plane Array(Vox) Detector Resolution 384×288/640×512 Thermal Lens 50mm Transport Package Wooden Case Specification 218mm× 374mm× 243mm Trademark CZVZ Origin China HS Code 8525801190 Production Capacity 30/Month

Packaging & Delivery

Package Size 50.00cm * 40.00cm * 40.00cm Package Gross Weight 12.000kg

Product Description

Product features1. Integrating infrared thermal imaging, visible light camera and pan-tilt controlling system, realizing day and night omni-directional monitoring2. Adopting thermal imaging technology, not limited by light source, imaging clearly3. Day and night 2 megapixel low illuminance color camera, realizing details observing4. High intelligence, simple to operate, easy to use and maintain5. 3D locating function, realizing frame selection magnifying and clicking to center, reducing operating difficulty, enhancing device usability6. Universal variable speed pan-tilt, realizing omni-directional no blind angle monitoring and high precision locating  Specification Monitoring distanceVisible light1000mThermal imagingobjectHuman(1.8m×0.5m)Vehicle(2.3m×2.3m)Detection distance1350m3800mRecognition distance338m950mIdentification distance169m475mCamera and video codingSensor type1/2.8" Progressive Scan CMOSTotal pixels2.1 MPLens focal lengthf=4.5~135mm,30* optical zoomingCamera controlAuto gain control, auto white balance, auto backlight compensation, supporting manual and auto day and night mode switchCoding formatH.264/H.265Video resolution1080P, dual stream supportedVideo frame rate50Hz:25fps(1920×1080)60Hz:30fps(1920×1080)TitleTitle, date, timeImage adjustmentbrightness, contrast ratio, saturationThermal imaging cameraDetector typeuncooled microbolometer focal plane array(Vox)Effective pixels384×288Spectral range8~14μmTemp sensitivity≤[email protected],300KFocal length50mmFOV8.78°×6.59°Frame rate25HzLens controlElectric focusing (auto focusing optional)Image processingDDE, pseudo colorPan-tiltAngleHorizontal 360°continuous rotation, pitching -90°~+90°speedHorizontal 0°~80°/s, pitching 0°~60°/sPreset bitsMax 256Cruising6cruising paths,20 bits each pathAnti-lightningTVS 6000VInterfacePower supply interfaceDC12VNetwork interface1×10Base-T/100Base-TX,RJ45Other interfacesRS485,BNC video outputEnvironment indicatorsWorking temp-25ºC~+55ºCStorage temp-40ºC~+65ºCProtection gradeIP66Power supplyWhole machine power supplyDC12V, appendant 220VAC~12VDC/3A water proof power supplyWhole machine power consumption≤30WPhysical featuresWhole machine weight≤8 kgSize218mm×374mm×243mm(L×W×H)Installation methodOutdoor pedestal mounting
