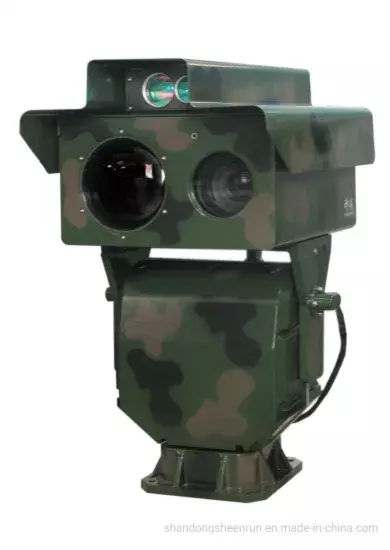

Laser Night Vision HD IP CCTV Security Camera

Model NO. HLV1020 Sensor CCD HDMI Format 1080P Horizontal Resolution 520tvl Kind Autofocus Lens Certification CE, FCC, ISO9001: 2000 Feature Waterproof / Weatherproof, High Definition, Vandal-proof, Auto BLC Effective Distance 2000m Sensor Size 1/3 inch Remote Control With Remote Control Installation Method Outdoor Pedestal Mounting Power Waterproof Power Supply Transport Package Wooden Case/Carton Specification 45KG Trademark CZVZ Origin Jinan, Shandong, China Production Capacity 500

Product Description

  Monitoring DistanceNight vision1000mDay vision2000mImaging lensFocal length15~300mmFOV0.9°~18.2°CameraSensor type1/3'' surface infrared enhanced CCDPixel752×582ResolutionColor 600 TV line,black & white 650 TV lineMin. illuminatingColor 0.02lux,black & white 0.0009luxLaser IR illuminatorIllumination lens60x zoom laser telephoto lensPower6WWavelength810nmIlluminate angle0.5°~30° continuous changeLight homogenizationMCIC light homogenization technologyShieldMaterialPrecision casting aluminium alloyWindow glass4mm Microlite super white optical glassPan-tiltLoad20kg(top-load)Angle360° continuously rotating horizontally,-60°~+20° looking up and downSpeedPan 0.1°~9°/s,tilt 0.1°~4°/sPresets255pcs,support lens zoom & focus presets memoryAuto cruising8 cruising paths,each path can set up 10 presetsAnti-thunder2000VInterfacePower supply interfaceAC24VOther interfaceRS485,BNC video outputEnvironmental indicatorsWorking temperature-25ºC~+55ºCStorage temperature-40ºC~+65ºCInternational protectionIP66PowerPower supplyAC24V±10%,equip AC220V~AC24V/5A waterproof power supplyPower consumption≤80WPhysical featuresWeight25.5kgInstallationOutdoor base install Application  national defense, safe cities, railways, highways, forest fire, oil and other fields, achieved all-weather surveillance, provided technical support for the maintenance of national security and social stability. Factory tour   Demo Effect
