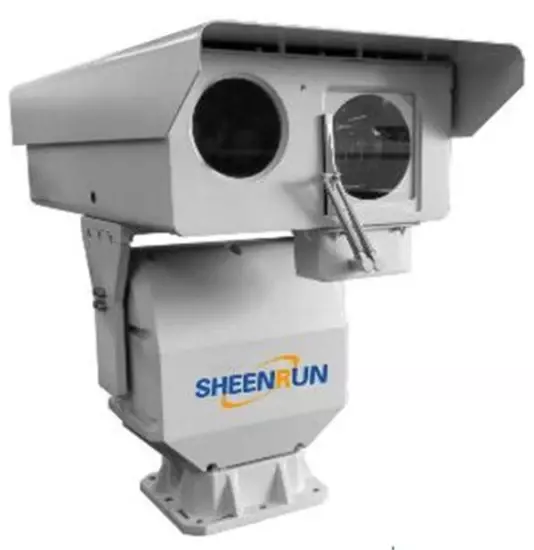

Laser Camera System with 2km Night Vision and 5km Day Vision Distance

Model NO. SHR-HLV2020 Sensor CMOS HDMI Format 1080P Horizontal Resolution 640X512 Kind Autofocus Lens Certification CE, FCC, ISO9001: 2000 Feature Waterproof / Weatherproof, High Definition, Vandal-proof Effective Distance 11.8km to Vehicle Sensor Size 1/3 inch Remote Control With Remote Control Night Vision 2000m Day Vision 5000m Focal Length 20~750mm Auto Iris DC Drive Transport Package Wooden Case/Carton Specification Thermal Sensor Trademark CZVZ Origin Shandong Province, China Production Capacity 100 Units / Month

Packaging & Delivery

Package Size 110.00cm * 57.00cm * 46.00cm Package Gross Weight 48.000kg

Product Description

Product Description Product Features:   Accompanied with color to black video camera, this series can realize continuous monitoring day and night. With the high intensity aluminum and stainless steel, this one can be used in many occasions such as night, harsh environment, long distance, large scope or hidden monitoring.It can detect 2km at daytime,5km at night under total darkness environment.    Specification: Monitoring DistanceNight vision2000mDay vision5000mLensFocal length20~750mmIris   Auto irisDC driveFOV0.5°~17.8°Fog penetratingsupportFocus controlelectronicFocusAuto/manualPresetSupport lens zoom and focus presetinterfaceC/CSCameraSensor1/1.8''Progressive Scan CMOSPixels2MPColor modeIntegration ICR double filter switch between day and nightShutter speedAuto/manualVideo controlAGC, AWB, support day/night mode switch auto/manualFog penetratingON/OFFWDRON/OFFBLCON/OFF and area optionalInterested areaSupport ON/FF, area optionalBack focus adjusting techSupport, remote controlNoise reduction3D digitalCode typeH.264/MJPEG/MPEG4Resolution1080p,Video rate32Kbps~16MbpsFrequency50Hz:25fps(1920×1080),25fps(1280×720) 60Hz:30fps(1920×1080),30fps (1280×720)Character addingCamera number, time, dateImage adjustmentLight, contrast, saturation, sharpInternet protocolTCP/IP/RTP/RTSP/HTTP/DNS/DDNS/DHCP/ FTP/NTP/PPPOE/SMTP/UPNPFeaturesSupport heartbeat, video cover, password protected Laser lensFocal lenth100mm HD focus laser lensCoatingMultilayer near-infrared coatingPresetSupport precise potentiometer voltage feedbackFocus way3CAMAxis adjustingOutside MMALaser illuminatorPower15WWavelength810nmLighting angle0.3°~30° continuous zoomLaser switchAuto/manualMQMMMQMM Micro lens waveguide fiber mixed modeEncapsulateSealed NitrogenHeat emissionArray Air-cooled heat emission, inside fanShieldMaterialHigh precision aluminum alloy shellStructureIntegration double windowSurface coatingPTA Tri-proof Coating, Anti-saltfogCoating paintingPTA coating ,  anti sea corrosionPantiltBurden weight50kg(top load)Horizontal angleHorizontal 0°~360°Vertical angle-45°~+45°Pan speed0.01°~20°/sTilt speed0.01°~12°/sPresets200Presets precision±0.1°Auto cruise8 paths, each path can set up 10 presetsAuxiliary switch2Thunder proof2000VSize320mm×206mm×380mm(L×W×H)InterfacePowerAC24VInternet1×10Base-T/100Base-TX,RJ45Environmental indicatorOperation temperature-25ºC~+55ºCStorage temperature-40ºC~+65ºCInternational protectionIP66Salt fog proofPH6.5~7.2, Continuously spraying 48 hoursPower supplyWhole device power supplyAttached 220VAC~30VAC/6A water proof power supplyWhole device power consumption≤150WPhysical featuresWhole device weight≤45kgInstallationOutdoor base install   Packaging & Shipping

 Delivery Time:10~15 days after receipt payment-----Under 10pcs 15~20 days after receipt payment----Over 10pcs   Our Advantages Certification:

(1)Technical advancement certificate

Invention patent of continuous zooming for uncooled infrared thermal imaging camera(Patent number:ZL 200810015710.6) Invention patent of large times zoom for infrared continuous zooming lens of uncooled infrared thermal imaging camera(Patent number:ZL 200910014323.5) Invention patent of auto focus method and device for thermal camera (Patent number:ZL200910019161.4) Invention patent of anti-glare damage thermal camera and its method (Patent number:ZL201210362592.2) Invention patent of a infrared thermal system blind-pixel substitution method(Patent number:ZL201310182838.2) Invention patent of super times zoom for infrared continuous zooming lens of uncooled infrared thermal imaging camera(Patent number:ZL 201410094484.0) Shandong Province Patent Technology Award Uncooled large diameter zoom infrared thermal imaging camera State Key New Products(2011TJC60003)

(2)Quality reliability certificate

ISO9001:2008 Certificate of quality management system; Inspection report from Security and Electronic Product Quality Testing Center of the Ministry of Public Security; China Saibao (Shandong) Laboratory Test Report; CE, FCC certificate Company Profile
