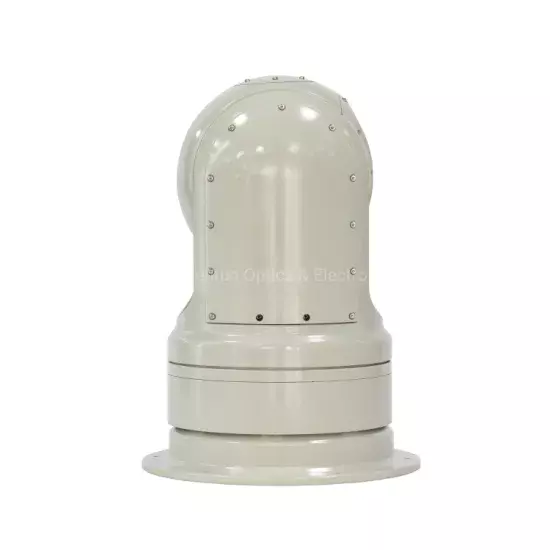

IR Shipborne Stabilization Day Night Thermal Imaging PTZ Camera for Marine

HDMI Format 1080P Horizontal Resolution 540tvl Kind Autofocus Lens Certification CE, FCC, ISO9001: 2000 Feature Waterproof / Weatherproof, High Definition Sensor Size 1/3 inch Remote Control With Remote Control Human Detection 1400m Car Detection 4000m Human Recognition 350m Car Recognition 1000m Human Identification 170m Car Identification 500m Visible Light Camera 1/2" Progressive Scan CMOS Thermal Lens 50mm Thermal Detector 640X512 Uncooled Fpa Detector HD Camera Lens 120mm HD Camera Snsor 1/1.8" Progressive Scan CMOS Size 390X250X150mm Weight 15kg Transport Package Carton Specification 540mm× 343mm× 560mm Trademark CZVZ Origin Shandong Province, China Production Capacity 200 Units / Month

Product Description

IR Shipborne Stabilization Day Night Thermal Imaging PTZ Camera for Marine 1. Product Features

 Integrate infrared detection system, video recording system, high precision transmission system and gyro image stabilizing system;

 High precision two axis gyro stabilization technology;

 CCTV camera wavelength extend infrared enhancement technology;

 High performance parallel process ability, real-time functional ARM+FPGA hardware process platform;

 Modularization and parallelization real-time embedded system;

 Real-time video OSD;

 High intensity, high precision, super-low resistance design;

 Spherical design with strong wind resistance, all-metal shell;

 Special reinforced design, suitable for UAV, aircraft, vehicle and vessel;

 Low power consumption and heat, stable performance;

 Video camera lens with heater enable normal starting under low temperature;

 Position lock after power off to protect thermal lens;

 GPS function;

 Two axis stabilization, separated control;

 Full aluminum alloy shell for anti-salt-fog

2. Technical Specifications   Distance Thermal camera Target  Human(1.8m×0.5m) Vehicle(2.3m×2.3m) detection 1400m 4000m recognition 350m 1000m identification 170m 500m Visible                 1000m Platform Two axis stabilization (Target-tracking optional ) Rotation range Horizontal 360° horizontal rotation Vertical +90° ~-90° Rotation speed Orientation and vertical angle speed ≥100°/s Orientation and vertical angle accelerated speed ≥60°/s2 Precision stabilization precision ≤1mrad(RMS) optical axis overlap ratio ≤2 pixel Visible CCTV camera Sensor type ¼ EXview HAD CCD Valid pixel 440000 pixel Horizontal resolution 530TVL(color), 570TVL(black&white) Focal length 3.4~122.4 mm, 36X optical zoom Iris F1.6~F4.5 FOV 57.8°(wide)~1.7°(tele) Focus auto/manual/zoom trigger Lowest illumination 0.2Lux/F1.4(color);0.001Lux/F1.4(black&white) White balance Auto/auto-tracking/indoor/outdoor/trigger/manual SNR ≥50db Thermal camera Detector Uncooled microbolometer focal array (Vox) Valid pixel 640×512 Spectrum range 8~14μm NETD ≤[email protected],300K Focal length 50 mm (25/35 optional) FOV 12.4°×9.9° IFOV 0.34mrad Frame rate 50Hz Image process 4× digital zoom, pseudo color Video format PAL OSD

Two axis status: On/Off separated;

Video camera/thermal camera zoom information;

GPS information (optional);

Pantilt information

Interface Power supply interface DC(direct current) Others

RS422/485(Optional),

1×BNC daylight video output,

 1×BNC  thermal  output

Environmental indicators Operation temperature -35ºC~+50ºC Storage temperature -40ºC~+70ºC Protection grade IP66 Anti-vibration

10~150Hz, 2g accelerated speed,

 3 axial direction sweep frequency 7.5hours, meet GJB150.162A-2009

Anti-impact 150m/s², 11ms, meet GJB150.162A-2009 Anti-saltfog PH 6.5~7.2, spray fog for 48hours Power supply Operation voltage DC18V~36V Whole consumption

continuous consumption≤55W,

 Peak consumption≤70W;

Others Weight ≤15Kg Size 385×250×150mm Installation way lifting or base installation                                GPS Function on top                                                                             Anti-freezing design                                                         3 Our Services (1)  We generally offer one year warranty. Extended warranty is also available.  (2) Life-long technical support. Professional technical team and salesperson help you with troubleshooting procedures any time when needed. (3) We accept OEM. (4) We offer customized product. 4 Package&Shippment Wooden and carton case to ensure the shipping safety. FEDEX, UPS, TNT, DHL etc can be choosed.  5 Company Introduction China CZVZ Optics & Electronics Co., Ltd, which was founded in 2004, is a leading night vision equipment and rugged information equipment supplier, as well as a relying construction company of Shandong Province Academician Workstation and Night Vision Surveillance Engineering Technology Research Center. CZVZ adheres to independent innovation, developed the world's first laser night vision camera and the first uncooled continuous zoom infrared thermal imaging camera with independent intellectual property rights, its synchronous zoom laser night vision technology and continuous zoom thermal imaging technology have reached international advanced standard level, possess the world's largest market share in laser night vision market. Company Photo: Exhibition:
