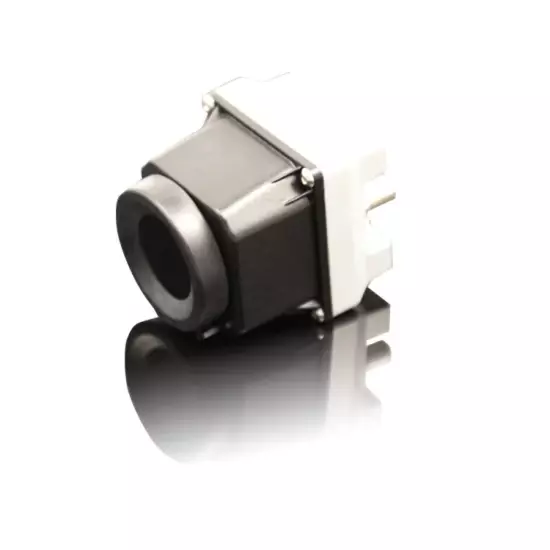

IP67 Waterproof Anti-Fog Military Vehicle Day and Night Vision Thermal Imaging Car Camera

Model NO. DA-D Kind Thermal Imaging Night Vision Operation Principle Infrared Night Vision Shell Material Metal Customized Customized Sensor Uncooled Vox Resolution 1280*1024px Wavelength Response Range 8-12um Detector Size 640*512px Focal Length Thermal 19mm Waterproof IP66 Video Format NTSC/PAL Pixel Size 17um Video Output Interface CVBS Transport Package Hard Paper Box with Sponge Specification DA-D Trademark CZVZ Origin Shaanxi Production Capacity 1000PCS/Month

Product Description

High Quality Night Vision Infrared Cars Camera Automotive Thermal Imaging Obstacle Avoidance System can see through total darkness, thick smoke, dense fog, and other bad weather. It effectively helps drivers from unexpected obstacles. Featured extremely wide viewing range, incredible durability in diverse harsh environments, instant installation on any vehicle, and high affordability for any budget.   Product Description

Thermal imaging vehicle car night vision thermal camera for automotive, another name is Night Vision thermal imaging car camera made in China, which can help save lives of drivers and passengers and other road users such as cyclists and pedestrians, so it is very useful.DA-D Night vision car camera is absolutely the perfect choice for a driving assistant vision system.

  Product Parameters   Detector type Uncooled focal plane infrared detector Detector specifications 640*512px Working band 8~12μm Pixel size 17μm Image frame rate 50Hz Polarity White hot / black hot (optional pseudo color) Objective lens 19mm, F# 1.0 Field of view 32°×26° Interface Analog PAL video output; RS232-C communication interface System weight ~500g Monitor(Optional) Specification 10 inch Resolution 1280×1024px Detection Distance Human (1.8×0.5m) Detection: 600m Identification: 250m Vehicle (2.3×2.3m) Detection: 1500m Identification: 500m Power Supply Power supply voltage DC12V±2V Power consumption 12W (Low temperature heating off) Environmental Adaptability Operating temperature range -40°C~+60°C Storage temperature range -40°C~+70°C Protection Level IP66 Humidity 5%~95% (non-condensing) Vibrate Scanning frequency: 5-200-5Hz, G-force: 2.5g Shock 110g/11ms half sine wave



Company Profile

IREEDA Electronics Group is a leading manufacturer and developer of precision Night Vision and Thermal Imaging products, and other military products for army. In 17 years we have built out acompany focused on innovation,quality, and providing value to our clients in the world. IRD's R&D Department has consistently allowed us to provide you best solution of all kinds of military-quality products.
