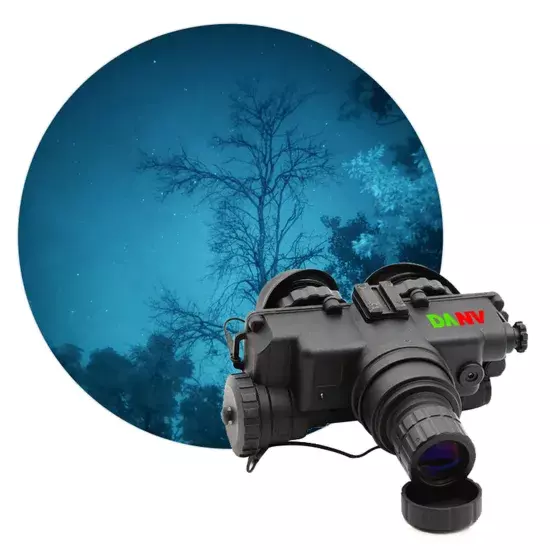

Infrared Head-Mounted Pvs-7 Gen3 Auto-Gated Night Vision Goggles

Model NO. DA-NVG7 Style Head-mounted Structure Goggles Kind Image Intensifier Night Vision Operation Principle Low-light Night Vision Shell Material Aviation Aluminum Customized Customized Resolution 48-58lp/mm(Optional 57- 64lp/mm) S/N 18-25dB Luminous Sensitivity 500-900ua/Lm Magnification 1X Fov 42degree Detection Sensitivity 250-300 M Diopter Range -1 Coating Multilayer Broadband Coating Distance Range 0.25 M to Infinty Material Aviation Aluminum Mttf 10000 Hours Battery Type AA Battery*2 Power Supply 2.6-4.2V Environment Rating IP65 (IP67 Optional) Weight (No Battery) <400g Transport Package Safety Box with Hard Paper Box Specification 130*130*56mm Trademark CZVZ Origin Shaanxi HS Code 9005809000 Production Capacity 1000PCS/Month

Product Description

Product Description   DA-NVG7 introduction *DA-NVG7 night vision goggles adopts high-performance image intensifier tube, which has the characteristics of excellent performance, light weight, clear imaging, simple operation, high cost performance, and can change the magnification by replacing the objective lens (or connecting the multiplier lens).  *It can be adjusted arbitrarily according to different eye distance, and built-in red knock light, infrared lighting, automatic anti-glare protection. *Built-in digital video capture system, which can realize digital video capture and transmission at night and in dark conditions. Excellent performance Adopt high-performance image intensifier tube, the image is clear. Excellent performance, simple operation, cost-effective. The magnification can be changed by changing the objective. Built-in infrared lighting, anti-glare protection. Built-in digital video capture system, which can realize digital video capture and transmission at night and in dark conditions. Two kinds of phosphorus tubes light weight & clear imaging simple operation & high cost performance   Product Parameters     SpecificationsOptical magnification1x/3x/5x/8xLens systemF28mm F/1.2FOV40°Focus range0.25 to infinityAdjustable interpupillary distanceYesDiopter adjustment-5-+5Flip-up shutdownYesAutomatic brightness controlYesBright light cutYesAutomatic shutdown systemYesInfrared illuminatorYesIr illuminator wavelength940nmIR indicatorYesPower supply2x AAFeeding famourtain of duration>50h(IR off)35h(IR on)Environmental classitcationIP65/66/67Operating temperature-40ºC+50ºCTube Specificationsimage intensifier tube18mm Gen2+AutogatingoptionalPhotocathode TypeMuti-alkali cathode S25ScreenGreen/White(optional)Resolution64+FOMFOM>1400/1600/1800/2000(optional)MTBF10000h Packaging & Shipping Certifications   Certification Overview As professional factory in night vision and thermal imaging technology, we strictly produce the devices and test according to the requirements, we test every one night vision goggle.CZVZ has all kinds of advance technology and certificates, Has been identified as a high-tech enterprise. We could do OEM as clients' parameter.   Company Profile



Company Introduction Our factory has very professional technical enginner team, from the product shape design, optical system and internal circuit, it is always the best solution. No matter the internal software or external hardware, our factory always have a internal technical meet to provide the best and suitable components of the product.



FAQ

Q: Are you manufacturer or trader?

A: CZVZ is a professional manufacturer of night vision, thermal vision and other photoelectric products.   Q: What products can you provide?A: We can provide high-quality night vision products, infrared thermal imaging devices, Gen2+/Gen3 image intensifier tubes, infrared detectors, other optoelectronic products and core accessories, as your requirement. Q:What is the lead time of your products? A: It depends on the order quantity and the season you place the order. Usually we can ship within 3-5 days for small quantity,for large quantity please contact us.   Q:What is the shipping method? A: Usually shipped by Express delivery (DHL, EMS, UPS, FEDEX, etc.) is adopted. Please contact us if you have any requirements.   Q:Do you accept OEM or ODM? A: Yes, our factory definitely provide OEM or ODM service, it depends on the quantity.   Q: How can I placeorder? A: You can contact us by send inquiry about your order details, or place order online.   Q: How long is the warranty? A: Most of our products provide the one year warranty.
