High Quality Automobile Driving Assistant Driver Infrared Thermal Imaging Night Vision Car Camera

Model NO. DA-D night vision car camera Kind Thermal Imaging Night Vision Operation Principle Infrared Night Vision Shell Material Metal Customized Customized Sensor Uncooled Vox Resolution 400*300px Wavelength Response Range 8-14um Frame Rate 50Hz Focal Length Thermal 19mm Polarity White/ Black Waterproof IP67 Video Format NTSC/PAL Power 9-32V Video Output Interface CVBS Transport Package Hard Paper Box with Sponge Specification DA-D Trademark CZVZ Origin Shaanxi Production Capacity 1000PCS/Month

Product Description

High quality automobile driving assistant driver infrared thermal imaging night vision car camera can see through total darkness, thick smoke, dense fog, and other bad weather. It effectively helps drivers from unexpected obstacles. Featured extremely wide viewing range, incredible durability in diverse harsh environments, instant installation on any vehicle, and high affordability for any budget.   Product Description

Long-distance IP67 waterproof infrared thermal imaging night vision vehicle car camera for automotive, another name is Night Vision thermal imaging car camera made in China, which can help save lives of drivers and passengers and other road users such as cyclists and pedestrians, so it is very useful.MH-D is absolutely the perfect choice for a driving assistant vision system.

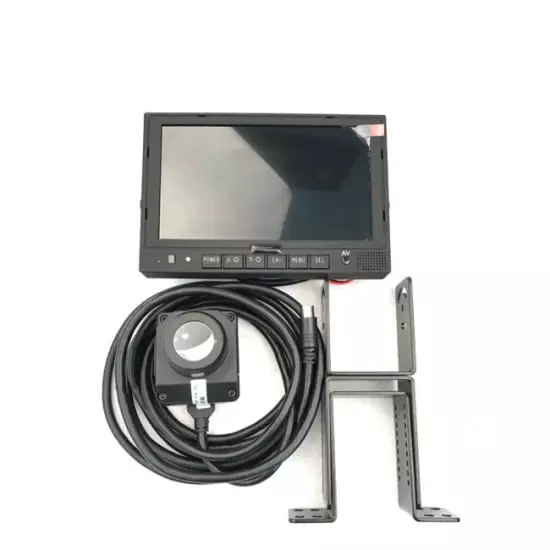

Detailed Photos



Product Parameters   Thermal Imaging Detector(Sensor) Sensor type 400X300px Uncooled Microbolometer Sensitivity ≤50mK@30ºC Optical Lens focus 19mm Field-of-View, deg 28°x21° (PAL), 27°X18°(NTSC) Image Presentation Video output 50Hz PAL or 60Hz NTSC Adjust Auto brightness and contrast adjustment Image calibration Auto calibration without shutter Image recognition Auto pedestrian recognition Alarm Auto Video output format CVBS System Performance Start up time ≤ 8s Defroster ≤2ºC activate defroster automatically @-30ºC  deice 1mm ice within 15m ≤7ºC close defroster automatically Power Power requirement, V DC 7-36 Power dissipation, W ≤3.5 Interface Video output interface Single-end/difference Environmental Operating temperature, ºC '-40ºC to 70ºC Storage temperature, ºC '-45ºC to 85ºC Rating IP67 HD Screen Size 8 inches 4: 3 digital screen Resolution,px 1024 x 768 Refresh rate,Hz  60-75 Signal input interface VGA / AV / BNC optional Video format PAL/NTSC Power, V DC 12V Effective Range Target Human(1.8x0.5m) Vehicle(2.3x2.3m) Detection range, m ≥200m ≥400m Identification range, m ≥90m ≥120m Packaging & Shipping



Company Profile

CZVZ technology researches, designs, develops, manufactures Long-distance IP67 waterproof infrared thermal imaging night vision vehicle car camera Technologies that enhance perception and awareness. we bring innovative sensing solutions into daily life through thermal imaging systems, visible-light imaging systems.
