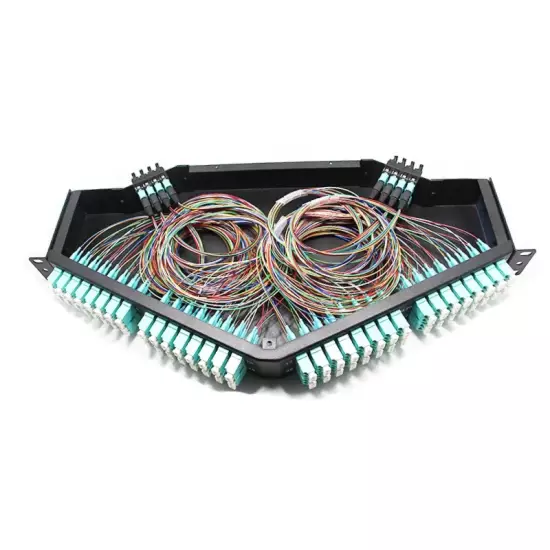

High Density Angled 96 Fibers MPO MTP Fiber Optical Patch Panel with Om3 LC Duplex Adapter Cassette,

Model NO. G710-9623 Material Shape Round Wire Allowed Lateral Pressure 100(N/100mm)<1000(N/100mm) Allowed Tensile Strength 100N<1000N Core 96 Core Certification RoHS, CE, ISO9001 Brand CZVZ Sheath Material Cold Rolled Steel MOQ 10 OEM Yes Samll Order Accepted Sample Accepted Delivery Time 1-3 Working Days Insertion Loss <0.2dB Return Loss ≤0.5 (Standard) ; ≤0.35 (Low Loss) Packing Customized Transport Package Box Trademark CZVZ Origin China HS Code 85447000

Product Description



Product Description

19" Rack mounted Modular High-Density MTP/MPO Patch Panel is specially designed to accommodate high-density cabling in high-end Data Center and Telecommunication central office environments. Front and rear cable management facilitates provide a neat solution for managing incoming and existing cables. The front adapter plate is LC duplex. The capacity can be up to 96 cores.

Features

|   Optical Multimode (OM4) fiber supporting 2000 MHz.km EMB at 850 nm. |  10 Gigabit transfers up to 300 meters using 850 nm VCSEL source |   MTP Connector:Female |   Maximum Connector Loss: 0.50 dB |   Typical Connector Loss: 0.30 dB |   Typical Return Loss: -25 dB |   Buffer Material: PVC |   Buffer OD: 900 µm |  Jacket Material: LSZH  or PVC (OFNR riser-rated) |   Cable OD: 3.0mm |   Installation Tensile Load: 100 N (445 lbs) |   Long-Term Tensile Load: 50 N (222 lbs) |   Meets IEC Standard IEC-61754-7; IEC61755, Telcordia GR-1435-CORE, JIS C5982; TIA-604-5(FOCIS5) compliant |   10G Fiber Channel Compliant |   40G and 100G IEEE 802.3

Application

|   Widely used in FTTH access network. |   Telecommunication Networks |   CCTV Networks |   Data Center Networks |   Local Area Networks

Product Parameters     Number of  MPO Patch cable8Capacity 96FFront Adapter PortLCAdapter LC Duplex Adapter TypeSinglemode/Multimode/OM3/OM4With PigtailsUnloaded  ( can load as per the requirement)With AdapterLoadedColorBlackOperating Temperature- 25ºC ~80ºCRelative Humidity- 25ºC ~80ºCAir pressure70Kpa ~ 106KpaAccessories IncludedCable glands, Cable Ties, Heat sleeves, Screws, mounting ears   About Us
