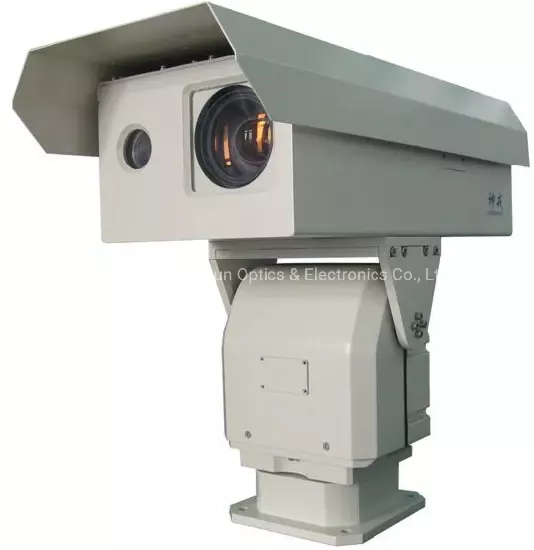

High Definition Long Range Laser Night Vision Camera Shr-Hlv4020

Model NO. SHR-HLV4020 Sensor CMOS HDMI Format 1080P Horizontal Resolution 600tvl Kind Autofocus Lens Certification CE, FCC, ISO9001: 2000 Feature Waterproof / Weatherproof Effective Distance Maximum 5km at Night, Maximum 10km in The Day Sensor Size 1/1.8′′ Remote Control With Remote Control Maximum Night Vision Distance 5km Maximum Daytime Vision Distance 10km Pixel 2.1 Mega Pixel Focal Length 20-1000mm International Protection IP66 Weight 50kg Transport Package Carton / Wooden Case Specification CE FCC Trademark CZVZ Origin Shandong Province, China Production Capacity 1000 Units / Month

Product Description

  Monitoring  Distance Night vision 4000m Day vision 9000m Lens Focal length 20-1000mm  60X Iris F3.5~16 Auto iris DC drive FOV 0.38°-17.8° Fog penetrating support Focus control electronic Focus Auto/manual Preset Support lens zoom and focus preset interface C/CS Camera Sensor 1/1.8''Progressive Scan CMOS Pixels 2MP Color mode Integration ICR double filter switch between day and night Shutter speed Auto/manual Video control AGC, AWB, support day/night mode switch auto/manual Fog penetrating ON/OFF WDR ON/OFF BLC ON/OFF and area optional  Interested area Support ON/FF, area optional Back focus  adjusting tech Support, remote control Noise reduction 3D digital Code type H.264/MJPEG/MPEG4 Resolution 1080p, Video rate 32Kbps~16Mbps Frequency 50Hz:25fps(1920×1080),25fps (1280×720) 60Hz:30fps(1920×1080),30fps (1280×720) Character adding Camera number, time, date Image adjustment Light, contrast, saturation, sharp Internet protocol TCP/IP/RTP/RTSP/HTTP/DNS/DDNS/DHCP/FTP/NTP /PPPOE/SMTP/UPNP Features Support heartbeat, video cover, password protected   Laser lens Focal lenth 100mmHD focus laser lens Coating Multilayer near-infrared coating Preset Support precise potentiometer voltage feedback Focus way 3CAM Axis adjusting Outside MMA Laser  illuminator Power 15W Wavelength 810nm Lighting angle 0.3°~20° continuous zoom Laser switch Auto/manual MQMM MQMM Micro lens waveguide fiber mixed mode Encapsulate Sealed Nitrogen Heat emission Array Air-cooled heat emission, inside fan Shield Material  High precision aluminum alloy shell Structure Integration double window Surface coating  PTA Tri-proof Coating,Anti-saltfog Coating painting PTA coating ,  anti sea  corrosion Pantilt Burden weight 50kg(top load) Horizontal angle Horizontal 0°~360° Vertical angle -45°~+45° Pan speed 0.01°~20°/s Tilt speed 0.01°~12°/s Presets 200 Presets precision ±0.1° Auto cruise 8 paths, each path can set up 10 presets Auxiliary switch 2 Thunder proof 2000V Size 320mm×206mm×380mm(L×W×H) Interface Power AC24V  Internet 1×10Base-T/100Base-TX,RJ45 Environmental  indicator Operation temperature  -25ºC~+55ºC Storage temperature -40ºC~+65ºC International protection IP66 Salt fog proof  PH6.5~7.2, Continuously spraying48 hours  Power supply Whole device power supply Attached 220VAC~30VAC/6A water proof power supply Whole device power consumption ≤150W Physical  features Whole device weight ≤45kg Installation Outdoor base install Demo Image    Factory Tour
