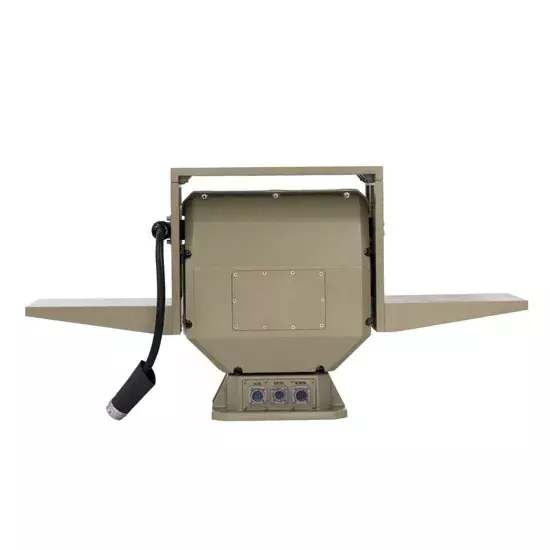

Heavy Duty Pan Tilt Platform 50kg Payload for Camera

Model NO. SHR-SP5050 Sensor CMOS HDMI Format 1080P Horizontal Resolution 540tvl Kind Autofocus Lens Certification CE, FCC, ISO9001: 2000 Feature Waterproof / Weatherproof, High Definition, Vandal-proof Effective Distance ≧30m Sensor Size 1/3 inch Remote Control Without Remote Control Support Camera Type IP or Analog Power Consumption Less Than 80W Operation Temperature -25 ~+65 Celcius Max Load 50kg Material Aluminum Die Cast Rotation Speed Pan 0.01~20 Degree/S,Tilt 0.01~10 Degree/S Protocol Pelco-D or Pelco-P Protection Class IP66 Transport Package Wooden Case/Carton Specification 23kg Trademark CZVZ Origin Shandong Province, China Production Capacity 100 Units / Month

Product Description

  Product Description   Features: -Aluminum Die Casting-Analog or IP optional-Alarm input/output function optional-Powder coated-Rotating angle 0 to 360 degree.-Tilt is -45 to +45 degree-Pan rotating speed: 0.01~20 degrees per second.-Tilt rotating speed: 0.01~10 degrees per second-Max Load: 35kg-Pan and Tilt Electric Power: Less than 1 Watts-Power Consumption: Less than 80 Watts-Input Power: Either AC 24V or DC 28V-Temperature: -25 degrees celcius to 65 degrees celcius-Weight: 23kg-IP66 Product Parameters ModelSP5050Rotating SpeedPan:0.01º~12º/s Tilt:0.01º~8º/sRotation AnglePan:0º~360º continuous,Tilt:+45º~ -45ºNumber of Presets200Preset Positioning Accuracy±0.1ºOptional functionPan tilt position data, focal length etc.Auxiliary Switch2 groupsLens PresetSupport,with self-adaptive functionLens control speedSpeed of zoom/focus can be adjustable continuouslyAuto Cruising8 tracks(each with 10 preset)HomingIt can be set up within the scope of 1~60 minAuto Scan1 pathProtocolPelco-D/PBaud Rate2400/4800/9600/19200bpsInterfaceRS485,supporting angle query returns(Or RS422,real-time returns)Input VoltageAC24V±20%,50/60HZ;DC28V±20%Power Consumption≤80WOperation TemperatureTemp:-25~ +65 celcius,Humidity:90%±3% RH; without condensation(-40~ +65 celcius)Storage Temperature-40~ +70 celciusMax Load50 kgLoad ModeTop-mounted/side-mountedDrivenWorm gear drivenProtection ClassIP66Weight23 kgDimensions350mm*206mm*380mm(L*W*H)



Effects   Packaging & Shipping FAQ

1. Q: Is your company manufacturer?          Yes, CZVZ is the thermal camera and laser camera manufacturer since year 2004.2. Q: Can you supply OEM service?         Yes, CZVZ can do OEM products as customer's requirement.3. Q: What is the product's lead time?         It is confirmed by the order quantity.4. Q: What is the warranty?         It is generally 1 year warranty, extend warranty is available.5. Q: How will the product be shipped?         For sample order, it will be shipped by DHL, FEDEX, UPS or TNT.         For bulk order, we can arrange the shipment as customer requirement.6. Q: How about your after sale service?         Any problem about our product, you can contact with us at any time. Our team will supply technical service for you.

Company Profile

CZVZ company, which was founded in year 2004, is one of the largest manufaturer of long range thermal imaging camera and laser night vision camera, as well as a relying Academician serveillance Engineering Technology Research Center in China.CZVZ adheres to independent innovation, which developed the world's first laser night vision camera,  and the continuous zoom infrared thermal imaging technology has reached the international advanced standard level.  The laser night vision and infrared thermal imaging products have been widely used in nation defense, safe cities, railways, highways, forest fire, oil and other fields, achieved all-weather surveillance, provided technical support for the maintenance of national security and socal stability.
