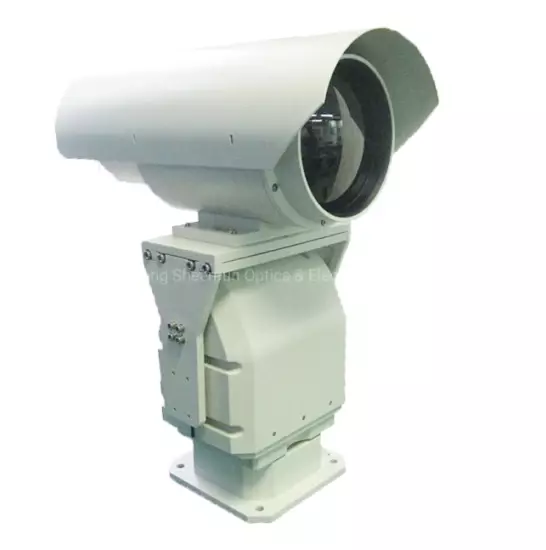

HD Long Range Thermal Imager Camera

Model NO. HDIR312JN Sensor Uncooled Fpa Detector HDMI Format 1080P Horizontal Resolution 1024X768 Resolution Kind Autofocus Lens Certification CE, FCC, ISO9001: 2000 Feature Waterproof / Weatherproof, High Definition, Vandal-proof Detector Resolution 1024X768 Transport Package Carton/Wooden Package Specification 265mmx180mmx432mm Trademark CZVZ Origin Shandong, China Production Capacity 300set/Month

Product Description

  Features: > 1024x768 High resolution uncooled microbolometer infrared focal plane array, vox > 14um pixel, image quality fine, observe small target more clearly, further detection distance > high sensitivity, NETD can reach 50mK and frame at 30Hz > 12x continuously optical zoom, can search in a wide range as well as identify target far, won't lose target > Image noise reduction processing, add DDE function;  output hot white/hot black/psudo color > Lower power consumption, quick start-up,stable performance, image clearly wih high uniformity > Standard network interface control, HD video signal output > Simple operation, easy to use and maintain > Precision casting aluminum alloy shell, sealed and waterproof, nitrogen inside, anti-harsh environment, super long working lifetime                      Model                                                     SHR-HTIR312A Monitoring distance Object Human(1.8mx0.5m) Vehicle(2.4x2.4m) Detection 8000mm 12000m Recognition 3000mm 8000m Identification 1690mm 4000m Thermal lens Focal length 25~300mm, 12x optical zoom FOV 2.7°x 2.05° ~ 32.86°x24.26° Spatial resolution 0.047~0.56mrad Lens control E-zoom, E-focus(auto focus is optional) Detector Type Uncooled microbolometer FPA detector (vox) Resolution 1024x768 Spectrum 8-14μm NETD ≤[email protected],300K Frame rate 30Hz FFC Auto/manual/scene correction Image process DDE, pseudo color Video output PAL Pan-tilt Load capacity 18kg Rotate angle  Pan: 0°~360°; Tilt: +20°~-60° Rotate speed Pan: 0.1°/s ~9°/s; Tilt: 0.1°/s ~ 4°/s Preset 200, 8paths, each has 10 presets Baud rate 2400/4800/9600/19200 bps optional Interface RS485/RS422 Protocol Pelco-D, Pelco-P optional Power supply AC 24V±20%, 50/60Hz; DC28V±20% Power consumption ≤40W Protection level IP66 Interface Power supply interface DC12V Other interface VGA Environmental indicators Working temperature -25ºC~÷55ºC Storage temperature -40ºC ~÷65ºC Whole machine power supply AC24V±20% Whole machine power consumption ≤80W Physical features Weight ≤50kg Installation Outdoor base installation
