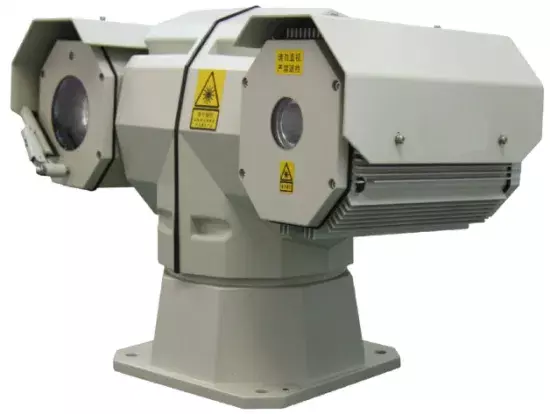

HD IP PTZ Laser Camera (300 Night Vision Distance)

Model NO. hlv311 Sensor CMOS HDMI Format 1080P Horizontal Resolution 600tvl Kind Autofocus Lens Certification CE, FCC, RoHS, ISO9001: 2000 Feature Waterproof / Weatherproof, High Definition, Vandal-proof, Auto BLC Effective Distance 300m at Night, 600m at Daytime Sensor Size 1/2.8′′ Remote Control With Remote Control Night Vision Distance 300m Daytime Vision Distance 600m Pixel 2.1 Mega Pixel Daylight Camera Lens 4.7-94mm, 20* Optical Zoom Laser Wave Length 810nm Laser Illuminator Power 5W Coding Format H.264 / H.265 Camera Type Laser Night Vision Camera Presets 256 Presets Protection Degree IP66 Transport Package Carton / Wooden Case Specification 8kg Trademark CZVZ Origin Shandong Province, China Production Capacity 100 Units / Month

Product Description

1. Product Features

 Adopting laser illuminating system, far illuminating distance, wide illuminating range, can monitor in 0Lux completely black

 Day&night low light megapixel color to black camera, day&night continuous monitoring

 Auto white balance, auto gain control, auto exposure control

 High performance video processing chip and H.264 high efficiency video code, providing millions of high definition video image

 Dual stream function, small time delay, fully satisfying different network bandwidth

Fully supporting ONVIF,GB/T28181,providing SDK, can dock with main monitoring platform home and broad

 Motion detection and alarm linkage, providing intelligent video monitoring application

 Capturing and videoing, supporting WEB browsing video, provide access to NVR platform to conduct parameter configuration and operation state management

 Adopting high performance power supply program, wide voltage input, low power consumption, suitable for special power supplying mode such as solar power

 Professionally designed shell, artistic, light, firm, anti-high temp, anti-corrosion, water proof, anti-acid rain

2. Specifications  Monitoring distanceNight vision300metersDay vision600metersCameraSensor1/2.8" Progressive Scan CMOSTotal pixels2.1MPLens focal lengthf=4.7~94mm,20* optical zoomingLens apertureF1.6~3.5Min light0.05Lux(color),0.01Lux(black and white)Electronic shutter speedAuto and manual adjustmentCamera controlAuto gain control, auto white balance, auto backlight compensation; supporting manual and auto day and night mode switchVideo coding   coded formatH.264Video resolution1920x1080Bit rate64Kbps~4MbpsFrame rate1~25F/S(50Hz),1~30F/S(60Hz)Subtitle overlaystation logo, date, timeImage adjustmentbrightness, contrast, saturabilitySupporting protocolTCP/IP,HTTP,DHCP,DNS,DDNS,RTP,RTSP,PPPoE,SMTP,NTP,UPnP,SNMP,FTP,802.1x,QoS,HTTPS,IPv6 (SIP,SRTP optional)IlluminatorPower5whjhvbWave length810nmIlluminating angle2°~50°synchronous servo continuous adjustmentHomogeneous lightLCMM homogenous technologyPan-tiltAngleHorizontal 360°continuous rotation,pitching:-90°~+90°SpeedHorizontal 0°~80°/s,pitching 0°~60°/sPreset bitMax 256Cruising function6 pathsInterfaceNetwork interface1×10Base-T/100Base-TX,RJ45Power supply interface1×AC 24V socket,for external power adapterAudio interface1×Line In,1×Line OutAlarm interface1 switch input,1 switch outputEnvironmental indicatorsWorking temp-25ºC~+55ºCStorage temp-40ºC~+65 ºCProtecting gradeIP66Anti-vibration10~55Hz,2m/s²,0.75mmAnti-impact150m/s^2,11msAnti-salt fogcontinuous spraying for 48 hours at PH 6.5-7.2,surface with no changesPower supplyWorking power supplyAC 24V±5% /2.5A,please use the appendant power supplyPower consumption≤60W          Physical          featuressize240mm×374mm×243mmWeight8Kg            OthersApplication functionReal time clock;supporting manual capturing image and manual videoingConfigurationSupporting configuration management and videobrowsing through WEB;Provide access to platform(NVR) to conductparameter configuration and operating state management,supporting ONVIF2.0,GB28181 3. Application This camera is widely used for safe city project, mining surveillance, perimeter surveillance and other outdoor surveillance.  4. 300meters Night Vision Demo Photo  5. Our Service

(1)  We generally offer one year warranty. Extended warranty is also available.

(2)  Life-long technical support. Professional technical team and salesperson help  you with troubleshooting procedures via Internet and Phone any time when needed.

(3) Door-to-door service if necessary. (4) We accept OEM. (5) Color can be customized. 6. Company Introduction

China CZVZ Optics & Electronics Co., Ltd, which was founded in 2004, is a leading night vision equipment and rugged information equipment supplier, as well as a relying construction company of Shandong Province Academician Workstation and Night Vision Surveillance Engineering Technology Research Center. CZVZ adheres to independent innovation, developed the world's first laser night vision camera and the first uncooled continuous zoom infrared thermal imaging camera with independent intellectual property rights, its synchronous zoom laser night vision technology and continuous zoom thermal imaging technology have reached international advanced standard level, possess the world's largest market share in laser night vision market.

CZVZ's laser night vision and infrared thermal imaging products have been widely used in national defense, safe cities, railways, highways, forest fire, oil and other fields, achieved all-weather surveillance, provided technical support for the maintenance of national security and social stability. CZVZ's rugged information equipment have been widely used in land, sea, air, the Second Artillery Corps and other branches, greatly promoted the national defense information technology. In addition to domestic market, the company's products have been exported to more than 40 countries and regions all over the world.

CZVZ insists on the belief "growing up with customers and employees" and ready to make more contribution to national defense and public security.
