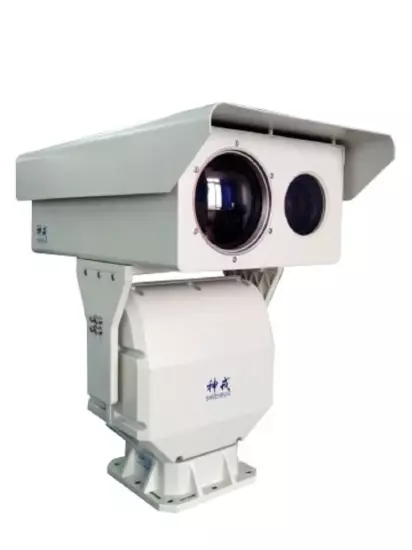

HD Dual Video Thermal Forest Fireproof System Used Thermal Camera

Model NO. SHR-HLV1020MLGIR75ATE Sensor CMOS HDMI Format 1080P Horizontal Resolution 540tvl Kind Autofocus Lens Certification CE, FCC, ISO9001: 2000 Feature Waterproof / Weatherproof, High Definition Effective Distance ≧30m Sensor Size 1/3 inch Remote Control With Remote Control Weight 21 Kg Transport Package Carton Specification 440mm× 213mm× 217mm Trademark CZVZ Origin Shandong Province, China Production Capacity 200 Units / Month

Packaging & Delivery

Package Size 60.00cm * 50.00cm * 40.00cm Package Gross Weight 30.000kg

Product Description

                                           Forest fire monitoring solutionsForest fire usually happen suddenly and randomly, and may cause huge losses in short time. So once there is a fire alarm, we need to take action immediately, but how we can receive the alarm message and response in a quick time? That' s what CZVZ software and camera can realize: the laser night vision camera and infrared thermal imaging camera are widely used for forest fire monitoring. Our software can support customer GIS system and obtain the fire object position data. The whole system includes the camera, the transmission system and display platform, it can work 24h/7days.This system is design for forest fire alarm. But it can be used for all long range fire alarm system.  SHR-HLV1020MLGIR75ATE HD Dual video thermal forest fireproof system   1. Product Features*  Adopting continuous zooming thermal imaging technology, imaging clearly, can search in large area and recognize objectives in long distance* 384×288 high resolution thermal detector with high temp sensitivity, NETD ≤ 50mK* Day and night 2 megapixels low illuminance color camera, realizing day and night continuous monitoring* Auto focusing function, realizing multiple focusing mode and triggering mode* Thermal imaging camera presetting function, remembering FOV of each preset bit, enhancing working efficiency* 3D locating function, can realize frame selection magnifying function and clicking to center function, reducing operating difficulty, enhancing device usability* Professionally designed housing, artistic, light, firm, anti-high temp, anti-corrosion, water proof, anti-acid rain.  2. Technical Specifications DistanceDay cameraDetect 2000 mThermalTargetfire(1m×1m)fire(2m×2m)Alarm distance1500m3000mAlarm detectAlarm termHigh temperature area take 2×2 pixelAlarm grade1~255Target size2×2~ 384×288 pixelAlarm targetSet 1-16 target, auto show high temperature targetAlarmVideo alarm with audioAlgorithmCalculation in 0.1S,no delay, no information lostHD lensFocal length8~250mmF valueF1.6~F6.1FOV2°~35.5°Auto irisDC driveCameraSensor1/2.8''Progressive Scan CMOSPixels2MPColor modeIntegration ICR double filter switch between day and nightShutter speedAuto/manualVideo controlAGC, AWB, support day/night mode switch auto/manualFog penetratingON/OFFWDRON/OFFBLCON/OFF and area optionalInterested areaSupport ON/FF, area optionalBack focus adjusting techSupport, remote controlNoise reduction3D digitalCode typeH.264/MJPEG/MPEG4Resolution1080p,Video rate32Kbps~16MbpsFrequency50Hz:25fps(1920×1080),25fps (1280×720) 60Hz:30fps(1920×1080),30fps (1280×720)Character addingCamera number, time, dateImage adjustmentLight, contrast, saturation, sharpInternet protocolTCP/IP/RTP/RTSP/HTTP/DNS/DDNS/DHCP/FTP/NTP/PPPOE/SMTP/UPNPThermal lensFocal length75mmFOV7.3°×5.5°Space resolution0.33mradDetectorDetector TypeUncooled FPA, (Vox)Pixel384X288Spectrum Range8~14μmNETD≤[email protected], 300Kfrequency25HzNon- uniformity correctionAuto/manualImage ProcessDDE, Pseudo ColorVideo outputPALPantiltBurden weight20kg(top load)Horizontal angleHorizontal 0°~360°Vertical angle-60°~+20°Pan speed0.01°~20°/sTilt speed0.01°~10°/sPresets200 Presets precision±0.2°Auto cruise2 paths, each path can set up 64 presetsAuxiliary switch1ProtocolPelco-D/Pelco-P optionalCommunication band rate2400/4800/9600/19200 bps OptionalSize265mm×180mm×315mm(L×W×H)Thunder proofPower 4000V, Video signal 2000VInterfacePowerDC30VInternet1×10Base-T/100Base-TX,RJ45VideoRS422,BNC video outputEnvironmental indicatorsOperation temperature-25ºC~+55ºCStorage temperature-40ºC~+65ºCInternational protectionIP66Salt fog proofPH6.5~7.2, Continuously spraying 48 hoursPowerWhole powerDC30VConsumption≤120WPhysicsWeight≤35kgSize540mm×343mm×560mm(L×W×H)InstallationOutdoor base     3 Our Services (1)  We generally offer one year warranty. Extended warranty is also available.  (2) Life-long technical support. Professional technical team and salesperson help you with troubleshooting procedures any time when needed. (3) We accept OEM. (4) We offer customized product.    4 Company Introduction China CZVZ Optics & Electronics Co., Ltd, which was founded in 2004, is a leading night vision equipment and rugged information equipment supplier, as well as a relying construction company of Shandong Province Academician Workstation and Night Vision Surveillance Engineering Technology Research Center. CZVZ adheres to independent innovation, developed the world's first laser night vision camera and the first uncooled continuous zoom infrared thermal imaging camera with independent intellectual property rights, its synchronous zoom laser night vision technology and continuous zoom thermal imaging technology have reached international advanced standard level, possess the world's largest market share in laser night vision market. CZVZ's laser night vision and infrared thermal imaging products have been widely used in national defense, safe cities, railways, highways, forest fire, oil and other fields, achieved all-weather surveillance, provided technical support for the maintenance of national security and social stability. CZVZ's rugged information equipment have been widely used in land, sea, air, the Second Artillery Corps, armed police and other branches of the military, greatly promoted the national defense information technology. In addition to domestic market, the company's products have been exported to more than 40 countries and regions all over the world. CZVZ always adheres to "military technology for civilian use " and "joint development of military products and civilian products" strategy, mastered the key technology in optics and rugged computer field, possess complete qualification for research and production of military equipment, directed or participated in a number of military research and production tasks. CZVZ insists on the belief "growing up with customers and employees" and ready to make more contribution to national defense and public security.
