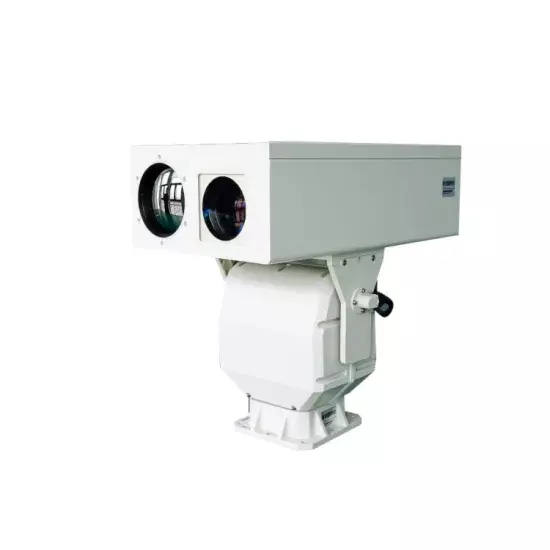

HD Dual Video Thermal Forest Fireproof Monitoring System

Model NO. SHR-HLV3020TIR155RT Sensor CMOS HDMI Format 1080P Horizontal Resolution 540tvl Kind Autofocus Lens Certification CE, FCC, ISO9001: 2000 Feature Waterproof / Weatherproof, High Definition, Vandal-proof Effective Distance 5000 M Sensor Size 1/1.8 " Remote Control With Remote Control Weight 45 Kg Transport Package Carton Specification 400mm× 400mm× 500mm Trademark CZVZ Origin Shandong Province, China Production Capacity 200 Units / Month

Packaging & Delivery

Package Size 65.00cm * 60.00cm * 50.00cm Package Gross Weight 35.000kg

Product Description

1 Product Features  High performance video process chip and H.264 video coding, support HD resolution video image Dual-stream function, short delay time; fully satisfy different network environment during practical applications Rich network protocol and good network adaptability, can satisfy all kinds of network environment Built-in Web Server, easy to operate and configure professional shell design, smart shape and low weight, can bear high temperature, anti-corrosion, water resistance and acid rain resistance 2 Specification DistanceDay camera5000mThermalTargetfire(1m×1m)fire(2m×2m)Alarm distance3000m6000mAlarm detectAlarm termHigh temperature area take 2×2 pixelAlarm grade1~255Target size2×2~ 384×288 pixelAlarm targetSet 1-6 target, auto show high temperature targetAlarmVideo alarm with audioCalculationCalculation in 0.1S,no delay,no information lostHD lensFocal length12.5~750mmFOV28.7°~0.5°2x extenderSupport(optional)Auto focusSupport(optional)Fog penetrationSupport(optional)CameraSensor1/1.8''Progressive Scan CMOSCode typeH.264/MJPEG/MPEG4Resolution1080p, CIF,Video rate32Kbps~16MbpsFrequency1~25FPS(50Hz),1~30FPS60Hz)Thermal lens Focal length30~150mmFOV3.1°×2.4°~15.2°×12.2°F valueF1.0~F1.2 Lens controlE zoom/E focus/Auto focus(optional)DetectorDetector Type Uncooled detector(VOX)Pixel324×256Spectrum Range8~14μmNETD≤[email protected],300Kfrequency25HzImage ProcessAGC, DDE, Pseudo ColorPantiltBurden weight50kg(top load)Horizontal angleHorizontal 0°~360°Vertical angle-45°~+45°Pan speed0.01°~12°/sTilt speed0.01°~8°/sPresets255 Auto cruise2 paths, each path can set up64 presetsThunder proof2000VInterfacePowerAC24VInternet1×10Base-T/100Base-TX,RJ45VideoRS422,BNC,alarm outputEnvironmental indicatorsOperation temperature -25ºC~+55ºCStorage temperature-40ºC~+65ºCInternational protectionIP66Salt fog proof PH6.5~7.2, Continuously spraying 48 hours PowerPower supplyAC24V±10%,attached AC220V~AC24V/5A waterproof power supplyConsumption≤120WPhysicsWeight≤45kgInstallationOutdoor base  3 Our Services (1)  We generally offer one year warranty. Extended warranty is also available.  (2) Life-long technical support. Professional technical team and salesperson help you with troubleshooting procedures any time when needed. (3) We accept OEM. (4) We offer customized product.    4 Company Introduction China CZVZ Optics & Electronics Co., Ltd, which was founded in 2004, is a leading night vision equipment and rugged information equipment supplier, as well as a relying construction company of Shandong Province Academician Workstation and Night Vision Surveillance Engineering Technology Research Center. CZVZ adheres to independent innovation, developed the world's first laser night vision camera and the first uncooled continuous zoom infrared thermal imaging camera with independent intellectual property rights, its synchronous zoom laser night vision technology and continuous zoom thermal imaging technology have reached international advanced standard level, possess the world's largest market share in laser night vision market. CZVZ's laser night vision and infrared thermal imaging products have been widely used in national defense, safe cities, railways, highways, forest fire, oil and other fields, achieved all-weather surveillance, provided technical support for the maintenance of national security and social stability. CZVZ's rugged information equipment have been widely used in land, sea, air, the Second Artillery Corps, armed police and other branches of the military, greatly promoted the national defense information technology. In addition to domestic market, the company's products have been exported to more than 40 countries and regions all over the world. CZVZ always adheres to "military technology for civilian use " and "joint development of military products and civilian products" strategy, mastered the key technology in optics and rugged computer field, possess complete qualification for research and production of military equipment, directed or participated in a number of military research and production tasks. CZVZ insists on the belief "growing up with customers and employees" and ready to make more contribution to national defense and public security.
