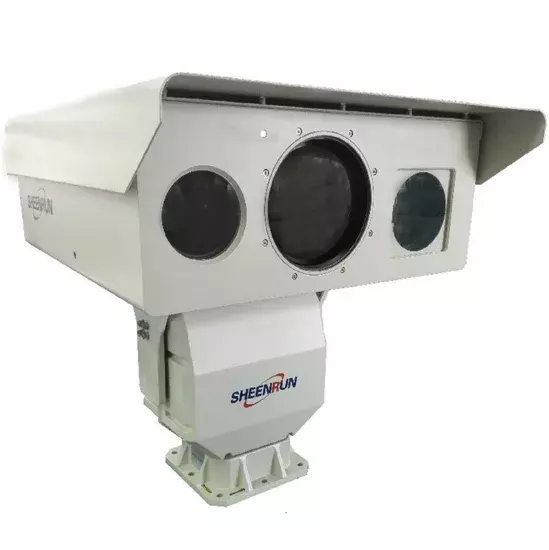

HD Daylight Camera and Laser Illuminatior and Thermal Imaging Camera Hybrid Surveillance System

Model NO. SHR-WHLVTIR155 Sensor CMOS HDMI Format 1080P Horizontal Resolution 540tvl Kind Autofocus Lens Certification CE, FCC, ISO9001: 2000 Feature Waterproof / Weatherproof, High Definition Effective Distance 1500 M Sensor Size 1/3 inch Remote Control With Remote Control Day Vision 3000m Night Vision 1500m Human Detection 4200m Car Detection 12000m Human Recognition 1050m Car Recongition 3000m Human Identification 520m Car Identification 1500m Weight 45 Kg Protection Grade IP66 Transport Package Carton Specification 400mm× 400mm× 500mm Trademark CZVZ Origin Shandong Province, China Production Capacity 200 Units / Month

Product Description

1 Product Features1. Three spectral imaging design, with advantage of visible light imaging clearly, thermal imaging camera detecting far and laser night vision range large2. Adopting continuous zooming thermal imaging technology, imaging clearly, can search in large area and recognize objectives in long distance3. Infrared detector with high temp sensitivity, with min temp resolution of 50mK4. Synchronous zooming laser illuminating system, long illuminating distance, large illuminating range, realizing monitoring in 0Lux complete black5. Day and night low illuminance 2 megapixels color to black camera, day and night continuous monitoring6. MCIC multi-tube core fusion mixed mode light homogenization technology, no speckle and dark ring, high edge definition7. Supporting fog penetration, backlight compensation, multistage wide dynamic8. Optional auto focusing function, realizing multiple focusing mode and triggering mode9. Optional thermal imaging camera presetting function, remembering FOV of each preset bit, enhancing working efficiency10. 3D locating function, can realize frame selection magnifying function and clicking to center function, reducing operating difficulty, enhancing device usability11. External MMA fine adjustment mechanism, no need to disassemble to complete laser alignment adjustment 12. Professionally designed shell, artistic, light, firm, anti-high temp, anti-corrosion, water proof, anti-acid rain     2 Specification Operating distanceVisible lightNight vision1500mDay vision3000mThermal imagingobjecthuman(1.8m×0.5m)vehicle(2.3m×2.3m)Detection distance420012000Recognition distance10503000Identification distance5201500High definition lensFocal length15.6~500mmFOV0.8°~25°Auto focusingsupporting(optional)Fog penetrationsupporting(optional)CameraSensor type1/1.8"Progressive Scan CMOSCoding mode H.264/MJPEG/MPEG4Video resolution1080P,CIF,supporting three streamVideo bit rate32Kbps~16MbpsVideo frame rate1~25f/s(50Hz),1~30f/s(60Hz)IlluminatorIlluminating lens60* zooming laser telephoto lensPower10WWave length810nmIlluminating angle0.5°~30°continuous changingLight  homogenizationMCIC multi-tube core fusion mixed mode light homogenization technologyInfrared lensFocal length30~150mmFOV2.5°×1.9°~12.4°×9.3°F valueF1.0~F1.2Lens controlelectric zooming, electric focusing(auto focusing optional)DetectorDetector typeuncooled microbolometer focal plane array(VOx)Effective pixels384x288/640x512(optional)Spectral range8~14μmTemp sensitivity≤[email protected],300KFrame rate25HzImage processingDDE, pseudo colorPan-tiltCarrying capacity50kg(top load)AngleHorizontal 360°continuous rotation,pitching: -60°~+20°speedHorizontal 0.01°~12°/s,pitching 0.01°~8°/sPreset bits255Cruising8 paths,10 bits each pathAnti-lightning2000VInterfacePower supply interfaceAC24VNetwork interface1×10Base-T/100Base-TX,RJ45Other interfacesRS422 communication,BNC video outputEnvironment indicatorsWorking temp-25ºC~+55ºCStorage temp-40ºC~+65ºCProtection gradeIP66Power supplyWhole machine power supplyAC24V±10%,appendant AC220V~AC24V/8A water proof power supplyWhole machine power consumption≤150WPhysical featuresWhole machine weight45kgInstallation methodOutdoor pedestal mounting 3 Our Services (1)  We generally offer one year warranty. Extended warranty is also available.  (2) Life-long technical support. Professional technical team and salesperson help you with troubleshooting procedures any time when needed. (3) We accept OEM. (4) We offer customized product.    4 Company Introduction China CZVZ Optics & Electronics Co., Ltd, which was founded in 2004, is a leading night vision equipment and rugged information equipment supplier, as well as a relying construction company of Shandong Province Academician Workstation and Night Vision Surveillance Engineering Technology Research Center. CZVZ adheres to independent innovation, developed the world's first laser night vision camera and the first uncooled continuous zoom infrared thermal imaging camera with independent intellectual property rights, its synchronous zoom laser night vision technology and continuous zoom thermal imaging technology have reached international advanced standard level, possess the world's largest market share in laser night vision market. CZVZ's laser night vision and infrared thermal imaging products have been widely used in national defense, safe cities, railways, highways, forest fire, oil and other fields, achieved all-weather surveillance, provided technical support for the maintenance of national security and social stability. CZVZ's rugged information equipment have been widely used in land, sea, air, the Second Artillery Corps, armed police and other branches of the military, greatly promoted the national defense information technology. In addition to domestic market, the company's products have been exported to more than 40 countries and regions all over the world. CZVZ always adheres to "military technology for civilian use " and "joint development of military products and civilian products" strategy, mastered the key technology in optics and rugged computer field, possess complete qualification for research and production of military equipment, directed or participated in a number of military research and production tasks. CZVZ insists on the belief "growing up with customers and employees" and ready to make more contribution to national defense and public security.
