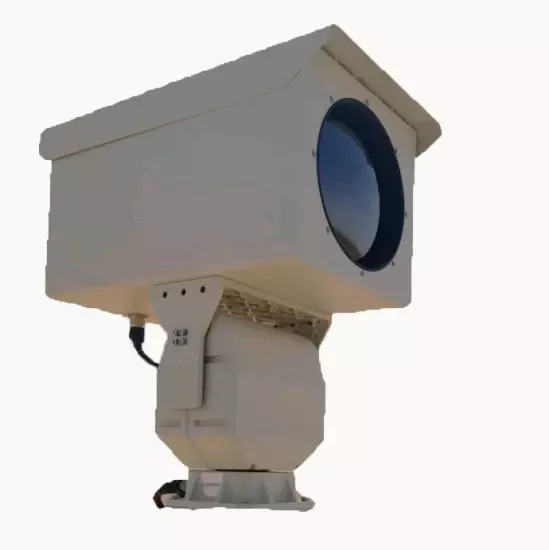

HD 1280X1024 High Resolution PTZ Long Range Thermal Camera System

Model NO. SHR-UDIR312A Sensor Vox Sensor HDMI Format 1280X1024p Kind Autofocus Lens Certification CE, RoHS Feature Waterproof / Weatherproof, High Definition Effective Distance 34km Power DC24V~DC60V Payload Capacity 50kg Protocol Pelco D Protection Grade IP66 Support Cruising, Presets Setup etc. Power Supply Interface DC30V Other Interface HDMI or IP Image Process Dde, Pseudo Color Video Output Ethernet Space Resolution 0.04~0.48mrad F Value F 1.0~F 1.2 Lens Control Electronic Zoom/Focus, Auto Focus Uncooled Fpa Detector(Vox) Uncooled Fpa Detector(Vox) Transport Package Wooden Box Origin China Production Capacity 100PCS/Month

Product Description

PTZ Uncooled thermal camera with 1280*1024 resolution Product Features: 1. 1280×1024 HD uncooled micro-measuring radiant calorimeter focal plane array detector 2. 12µm pixel,exquisite image,more clear on object with more details,far detect distance 3. High sensitivity, minimum temperature resolution up to 60mK, frame frequency 30Hz 4. 12x optical continuous zoom, can be a wide range of search, but also to identify distant targets, do not lose the target 5. Image de-noising processing, increase image detail enhancement function, output hot white/hot black/pseudo color image 6. Low power consumption, fast start-up, stable performance, clear image, uniform picture 7. Standard network interface control, high-definition video signal output 8. Simple operation, easy to use and maintain DistanceObjectPeople(1.8m×0.5m)Vehicle(2.3 m×2.3 m)Detection11900m34000mRecognition3960m8500mIdentification1980m4250mInfrared lensFocal length25~300mm, 12x optical zoomFOV2.9°x 2.3°~34.2°x 27.6°Space resolution0.04~0.48mradF valueF 1.0~F 1.2Lens controlElectronic zoom/focus, Auto FocusDetectorDetector typeUncooled FPA detector(vox)Pixel1280×1024(12μm)Spectrum8~14μmNETD≤[email protected], 300KFrame30HzNUCAuto/Manual/Background correctionImage processDDE, pseudo colorVideo outputEthernetPan/tiltRotation SpeedPan 0.01°/s~20°/s, Tilt 0.01°/s~10°/s Rotation rangePan 360°continuous, Tilt ±45°Accuracy±0.1°PowerDC24V~DC60VPayload capacity50kgProtocolPelco DProtection gradeIP66SupportCruising, presets setup etc.InterfacePower supply interfaceDC30VOther interfaceHDMI or IPEnvironmental indicatorsWorking temperature-25ºC~+55ºCStorage temperature-40ºC~+65ºCPhysical featureWeight≤60KgConsumption≤70WSize682mm*348mm*376mm(L*W*H)Installation methodFixed
