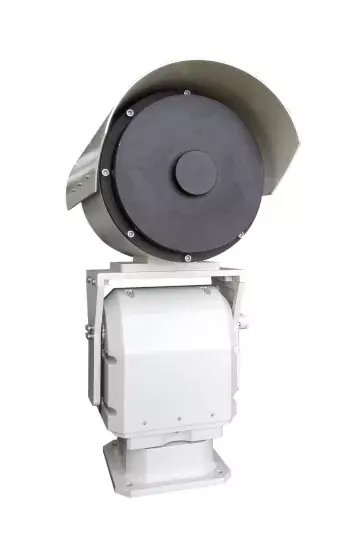

Harbor Security Used Long Range Day/Night Vision Thermal PTZ Camera

Model NO. SHR-TIR155 Sensor Uncooled Fpa Detector(Vox) HDMI Format 480P Horizontal Resolution 384X288 Kind Autofocus Lens Certification CE, FCC, ISO9001: 2000 Feature Waterproof / Weatherproof, High Definition, Vandal-proof Effective Distance 12000m Sensor Size 1/3 inch Remote Control With Remote Control Weight 5 Kg Detect Distance 4050m for Human; 11400m for Car Recognize Distance 1012m for Human; 2850m for Car Identify Distance 506m for Human; 1425m for Car Detector Uncooled Fpa Detector(Vox) Pixel 384×288 Spectrum 8~14μm Netd ≤[email protected],300K Frame 25Hz Focal Length 30~150mm 5× Continuous Zoom Transport Package Carton/Wooden Box Specification 400mm× 202mm× 200mm Trademark CZVZ Origin Shandong Province, China Production Capacity 200 Units / Month

Product Description

  1. Product Features Adopt continuous zooming thermal imaging technology, imaging clear, further detection distance, not only largescale search but also small scale observation; 384×288 High resolution uncooled microbolometer infrared focal plane arrays, vox, high sensitivity; Fine quality image, observe small target more clearly, further detection distance; Multi-position intelligent automatic focusing technology, rapid focusing can be achieved through a variety of focusing modes and triggering modes; Manually adjust brightness/contrast, digital zoom, auto/manual/background correction, ,better imaging; Image noise reduction processing, add DDE function; output hot white/ hot black/pseudo color; Digital video output, easy access to existing security monitoring platform; Precision casting aluminum alloy shell, sealed and waterproof, nitrogen inside, anti-harsh environment, overlength working lifetime.  2. Specification   Monitoring distanceObjectPeople(1.8m×0.5m)Vehicle(2.3m×2.3m)Detect distance4050m11400mRecognize distance1012m2850mIdentification distance506m1425mThermal lens   Focal length30~150mm 5× Continuous ZoomFOV2.93°×2.20°~14.59°×10.97°FF1.0Lens controlElectronic zoom/focus/auto focusDetectorDetector typeUncooled FPA detector(vox)Pixel384x288Spectrum8~14μmNETD≤[email protected],300KFrame25HzNUCAuto/Manual/Background adjustImage processDDE, pseudo colorVideo outputPALShieldMaterialSuper strength cast aluminum alloyStructureIntegrated shell designOtherSeal nitrogen filledInterfacePower supply interfaceDC12VOther interfaceRS485,BNC video outputEnvironmental indicators   Working temperature-25ºC~+55ºC(-40ºC~+55ºCOptional)Storage temperature-40ºC~+65ºCInternational protectionIP66Anti-vibrationAccord with GB/T 15211-1994 5.4 harsh grade 2Anti-impactAccord with GB/T 15211-1994 5.3 harsh grade 3Anti-thunder2000VPowerPower supplyDC12V(attached AC220V/DC12V power adapter)Power consumption≤8WPhysical featuresSize400mm×202mm×200mm (L×W×H, sunshield cover included)Weight≤5KgInstallationOutdoor base install   3 Our Services (1)  We generally offer one year warranty. Extended warranty is also available.  (2) Life-long technical support. Professional technical team and salesperson help you with troubleshooting procedures any time when needed. (3) We accept OEM. (4) We offer customized product.    4 Company Introduction China CZVZ Optics & Electronics Co., Ltd, which was founded in 2004, is a leading night vision equipment and rugged information equipment supplier, as well as a relying construction company of Shandong Province Academician Workstation and Night Vision Surveillance Engineering Technology Research Center. CZVZ adheres to independent innovation, developed the world's first laser night vision camera and the first uncooled continuous zoom infrared thermal imaging camera with independent intellectual property rights, its synchronous zoom laser night vision technology and continuous zoom thermal imaging technology have reached international advanced standard level, possess the world's largest market share in laser night vision market.
