Goreink GYTA53 Direct Burial Optical Fiber Cable, Sm 48 Cores, Underground

Model NO. G1G9-548 Material Shape Round Wire Allowed Lateral Pressure 100(N/100mm)<1000(N/100mm) Allowed Tensile Strength 100N<1000N Core Multicore Certification RoHS, CE, ISO9001 Brand CZVZ Sheath Material PE OEM Yes MOQ 1000m Small Order Accepted Suitable Underground Sample Available Transport Package Polywooden Drum Trademark CZVZ Origin China HS Code 85447000

Product Description



Product Description

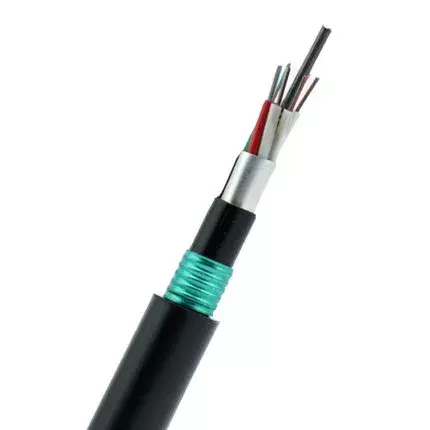

CZVZ GYTA53 Fiber optic cables are designed for outside plant applications and intended for use in communication network connects requiring cable to be direct burial. Its double sheath protection and stranded loose tube design provide stable performance over a wide temperature range and is compatible with any telecommunications-grade optical fiber. It is an FRP strength member with double sheath protections structure.

Features

|   Up to 288 cores |   Fiber code: GYTA53 |   Stranded loose tube design with Metallic strength member |   Double sheath protection  |   Good mechanical performance

Application

|   Widely used in FTTH access network. |   Telecommunication Networks |   CCTV Networks |   Data communications Networks |   Local Area Networks

Product Parameters

Fiber Type

Singlemode - G652.D

Wavelength

1310nm/1550nm

Attenuation(dB/km)

1310nm≤0.34

1383nm ≤0.34

1550nm ≤0.20

1625nm ≤0.24

Zero Dispersion Wavelength

1310-1324nm

Fiber Cutoff wavelength(nm)

≤1260

Cladding diameter(um)

125±1.0

Cladding material

SiO2

Cladding non-circularity(%)

≤1.0

Coating/cladding concertricity error(um)

≤12.0

Coating diameter(um)

245±7

Core diameter(um)

9±2.5

Core non-circularity(%)

≤6.0

Bending Diameter(mm)
