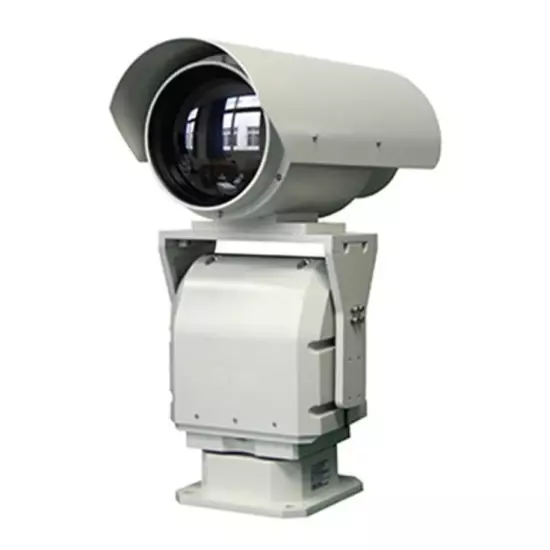

Factory Price Night Vision Surveillance Long Range Dual Sensor Thermal Camera

Model NO. SHR-TIR30R Detection Distance 720m for Human, 1980m for Vehicle Recognition Distance 180m for Human, 490m for Vehicle Identification 90m Human,240m Vehicle Focal Length 30mm Resolution 324X256 (640X512 Optional) Warranty One Year Pan/Tilt Small Type Pan/Tilt Platform Weight 7.5kg Protocol Pelco-D or Pelco-P Interface RS485,BNC Transport Package Aluminum Alloy Box Specification CE FCC ROHS Trademark CZVZ Origin Shandong Province, China Production Capacity 2000 Units / Month

Product Description

SHR-TIR30 Short Range PTZ Infrared Thermal Imaging Camera 1 Features   - 324x256 resolution, uncooled detector.  -  NETD 50mk. - Adopts Image Denoising tech, DDE tech, output black hot/white hot/palette colors. - Low power consumption, quick start -RS485, analog signal. - Easy to operate and maintain. - High aluminum alloy shell with nitrogen inside, can work under harsh  environment 24/7.   Distance Target Human (1.8m×0.5m) Vehicle(2.3×2.3) Detection distance 720m 1980m Recognition distance 180m 490m Identification distance 90m 240m Thermal lens Focal length 30mm FOV 15.2°×11.4° IFOV 0.83mrad Detector Detector Type Uncooled FPA Pixel 324×256(640*512 optional) Spectrum Range 8~14μm NETD ≤[email protected], 300K Frequency 25Hz Non- uniformity Correction Auto/manual Image Process AGC, DDE, Pseudo Color Video output NTSC/PAL Pantilt Rotate pan:0º ~ 360º tilt:+60°~ -60° Speed Pan 0.1°~8°/S;tilt 0.1°~6°/S; Presets 200 Communication Interface Pelco-D,Pelco-P optional Baud Rate 2400/4800/9600/19200 bps optional Install Top load Load at most 10kg Size 385mm×212.5mm×260mm(L×W×H) Interface Power AC24V Other RS485,BNC Environment Working temperature -25ºC~+55ºC Storage temperature -40ºC~+65ºC Protection IP66 Anti-vibration 10~55Hz,0.75mm Anti-impact 150m/s2,11ms Saltfrog proof under PH6.5~7.2, continuous spraying fog for 48 hours Power Total AC24V±10%,50Hz Consumption ≤50W Physical   features Weight 7.25kg Installaiton Outdoor base install
