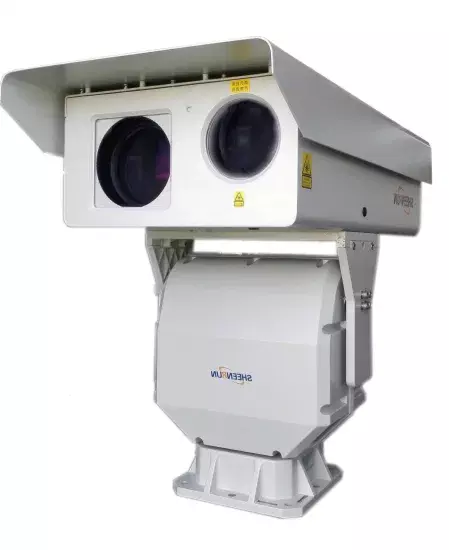

Factory Direct ODM 4km Long Range PTZ HD Night Vision Laser Camera

Model NO. HLV4020 HD Sensor CMOS Horizontal Resolution 520tvl Kind Autofocus Lens Certification CE, FCC, RoHS, ISO9001: 2000 Feature Waterproof / Weatherproof, High Definition, Vandal-proof, Auto BLC Effective Distance 10000m Sensor Size 1/3 inch Remote Control With Remote Control Day Vision 10km Night Vision 4km Weight 55kg Protection Grade IP66 Transport Package Wooden Case/Carton Specification 320mm X 206mm X 380mm Trademark CZVZ Origin Jinan, Shandong, China Production Capacity 5000

Product Description

Product Features 1) Adopt laser illuminating system, long lighting distance with large scope, uneasy to be discovered;2) Day & Night low illumination megapixels color to black camera, realize continuous monitoring day and night;3) Auto exposal control, AWB, AGC;4) High-efficiency video processing chips, H.264 code, HD images of millions resolution;5) Dual-stream function to meet the different network broadband; Rich network protocol, good adaptability;6) Mobile surveillance and alarm linkage, intelligence video monitoring;7) Built-in Web Server, convenient to control;8) Shifting pan-tilt, realize all directions no blind spot monitoring and high accurate orientation;9) Smart shell with professional design, light, firm, anti-corrosion, waterproof and acid rain proof.   Specification SHR-HLV4020AMinitoring distanceDay vision8000m-10000m Night vision4000mImaging lensFocal length16.7~1000mmFOV 0.45°~25°Visible light cameraSensor type1/1.8''Progressive Scan CMOSCamera controlAutomatic gain control, automatic white balance, support manual and automatic day and night mode conversionFog penetrationON/OFF (optional)Noise reduction3D noise reductionCoding modeH.265/H.264/MJPEGVideo Resolution1080p,supporting three streamVideo bit rate32Kbps~16MbpsVideo frame rate50Hz:25fps(1920×1080),25fps (1280×720) 60Hz:30fps(1920×1080),30fps (1280×720)Image AdjustmentBrightness, contrast, saturation, sharpnessNetwork protocolTCP/IP/RTP/RTSP/HTTP/DNS/DDNS/DHCP/FTP/NTP/PPPOE/SMTP/UPNPIlluminatorIlluminating lens100x zooming laser telephoto lensPower20WWave length810nmIlluminating angle0.3°~30°continuous changingPantiltLoad capacity50kg(top mount)AngleHorizontal 360°continuous rotation,pitching -45°~+45°(-60°~+20°)SpeedHorizontal 0.01°~12°/s,pitching 0.01°~8°/sPresets255, supporting lens zoom focus presetsAuto cruising2 paths, 64 preset bits each pathInterfacePower interfaceDC30VNeterwork interface1×10Base-T/100Base-TX,RJ45Environmental indicatorsWorking temp.-25ºC~+55ºCStorage temp.-40ºC~+65ºCPretection gradeIP66PowerPower supplyAC90~295V into DC30V, waterproof power supplyConsumption≤160WPhysical featuresSize795×353×558(L×W×H)mmWeight≤55kgInstallationoutdoor base mounting Product Application: Boarder security surveillance patrol Coastal & sea port long range monitor and search rescue Military/Police mission assistance Forest Fireproof alarm system Oilfields, railways, airports, harbors, large areas real-time monitoring Boat, ship, vehicle mounted camera
