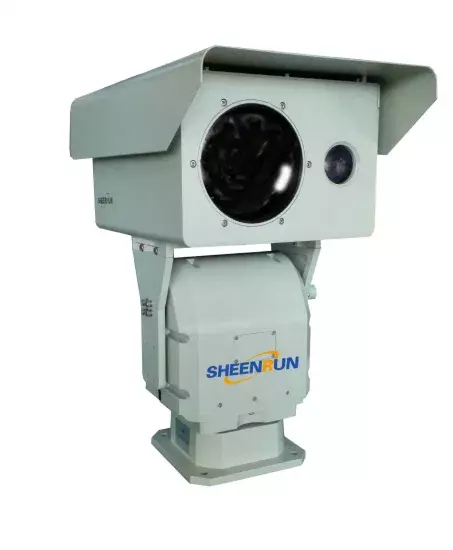

Factory Direct 10km Long Range PTZ Thermal Imaging Camera

Model NO. HLVTIR155R Sensor CMOS HDMI Format 1080P Horizontal Resolution 520tvl Kind Autofocus Lens Certification CE, FCC, CCC, ISO9001: 2000 Feature Waterproof / Weatherproof, High Definition, Vandal-proof, Auto BLC Effective Distance 9900m Sensor Size 1/3 inch Remote Control With Remote Control Pan-Tilt Auto Cruising and Scan Visible Light 1000m Sensor Type 1/2.8" Progressive Scan CMOS Total Pixels 2.1MP Lens Focal Length F=4.5~135mm,30* Optical Zooming Thermal Detector Uncooled Microbolometer Focal Plane Array(Vox) Pan-Tilt Preset Bits 255 Pan-Tilt Angle Horizontal 360 Degree Continuous Rotation Cruising 8 Paths,10 Bits Each Path Interface AC24V, RJ45, RS485, BNC Video Output Transport Package Wooden Case/Carton Specification IP66 Trademark CZVZ Origin Jinan, Shandong, China Production Capacity 5000

Product Description

Product Features 1 ) Adopting continuous zooming thermal imaging technology, imaging clearly, can search in large area and recognize objectives in long distance2) Infrared detector with high temp sensitivity, with min temp resolution of 50mK3) Day and night 2 megapixels low illuminance color camera, realizing day and night continuous monitoring4) Optional auto focusing function, realizing multiple focusing mode and triggering mode5) Optional thermal imaging camera presetting function, remembering FOV of each preset bit, enhancing working efficiency6) 3D locating function, can realize frame selection magnifying function and clicking to center function, reducing operating difficulty, enhancing device usability7) Professionally designed shell, artistic, light, firm, anti-high temp, anti-corrosion, water proof, anti-acid rain  Specification   Operating distanceVisible light1000mThermal imagingobjecthuman(1.8m×0.5m)Vehicle(2.3m×2.3m)Detection distance3600m9900mRecognition distance900m2470mIdentification distance450m1200mCamera and video codingSensor type1/2.8" Progressive Scan CMOSTotal pixels2.1MPLens focal lengthf=4.5~135mm,30* optical zoomingCamera controlAuto gain control, auto white balance, auto backlight compensation, supporting manual and auto day and night mode switchCoding formatH.264Video resolution1920x1080Video frame rate1~30f/sImage adjustmentbrightness, contrast ratio, saturationInfrared lensFocal length30~150mm,5* optical zoomingFOV3.1°×2.4°~15.2°×12.2°F valueF1.0~F1.2Lens controlelectric zooming, electric focusing(auto focusing optional)DetectorDetector typeuncooled microbolometer focal plane array(VOx)Effective pixels324×256Spectral range8~14μmTemp sensitivity≤[email protected],300KFrame rate25HzImage processingDDE, pseudo colorPan-tiltCarrying capacity22kg(top load)AngleHorizontal 360°continuous rotation,pitching -45°~+45°speedHorizontal 0°~9°/s,pitching 0.1°~4°/sPreset bits255Cruising8 paths,10 bits each pathAnti-lightning2000VInterfacePower supply interfaceAC24VNetwork interface1×10Base-T/100Base-TX,RJ45Other interfacesRS485,BNC video outputEnvironment indicatorsWorking temp-25ºC~+55ºCStorage temp-40ºC~+65ºCProtection gradeIP66Power supplyWhole machine power supply24VAC±10%,appendant 220VAC~24VAC/5A water proof power supplyWhole machine power consumption≤60WPhysical featuresWhole machine weight21kgInstallation methodOutdoor pedestal mounting
