Electro-Optical Uav Auto Tracking PTZ Night Vision IP Thermal Camera

Model NO. SHR-PT500HLV3020ZIR700 Video Capture System Video Camera Video Transmission System Optical Fiber Transmission Software Function Monitoring+Control Software Usage Computer Monitoring Software Client Software Client Software Model Surveillance Sensor CMOS Kind Autofocus Lens Technology Pan / Tilt / Zoom Horizontal Resolution 540tvl Whole Machine Power Consumption ≤120W Transport Package Carton Specification 400mm× 400mm× 500mm Trademark CZVZ Origin China Production Capacity 10 Units / Month

Product Description

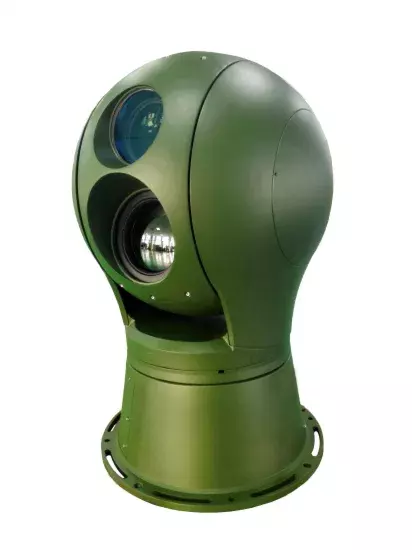

1. Overview Shandong CZVZ Electronics Co., Ltd. SHR-HLV3020ZIR700 Dual Sensor Electro-Optical System integrated cooled infrared thermal imager, visible light camera, gyro-stabilization system, PTZ and other parts. The system can realize unattended uninterrupted work and adopts cooled infrared thermal imaging night vision technology, which has the advantages of good concealment, strong ability of penetrating smog, and not limited by light sources. The effective combination of camera and thermal imager enables continuous monitoring of day and night.

2. Features

Adopting continuous zoom thermal imaging technology, it has a strong ability to penetrate fog and detect target in the distance. It can not only search in a wide range, but also can observe target in close range. Day and night 2 megapixels low illuminance color camera, cooperated with thermal imaging camera, realizes day and night continuous monitoring Multi-position intelligent identification autofocus technology enables fast focusing through multiple focus modes and trigger modes. The control software of the front-end equipment can realize online upgrade function through the network, which greatly facilitates the post-maintenance PTZ re-powered, PTZ self-test can return to the user's own zero or power off position, support remote restart function Intelligent identification tracking technology to quickly lock tracking targets Universal variable speed PTZ, which achieves all-round blind-free monitoring and achieves high-precision positioning Professional design shell, beautiful, light, strong, anti-high-temperature, corrosion resistance, waterproof, anti-acid-rain

3. Technical Data

  Operating distanceVisible light5000~8000m to see human.Thermal imagingobjecthuman(1.8m×0.5m)Vehicle(2.3m×2.3m)Detection distance15.4km19.5kmRecognition distance7km12kmIdentification distance4km8.4kmHD lensLens12.5~750mm, 60X optical zoomFOV0.6°~35°Aperture TypeAuto ApertureFocusManual/AutoCamera and video codingSensor type1/1.8" Progressive Scan CMOSTotal pixels2.1MPCamera controlAuto gain control, auto white balance, auto backlight compensation, supporting manual and auto day and night mode switchPenetrate fogOn/Off optionalPost-focusingSupport, Remote-testCoding formatH.265/H.264/MJPEGNoise reduction3D Digital noise reductionVideo resolution1920x1080, three stream supportedVideo frame rate50Hz:25fps(1920×1080),25fps (1280×720)60Hz:30fps(1920×1080),30fps (1280×720)Image adjustmentbrightness, contrast ratio, saturationInfrared lensFocal length35~700mm,20× optical zoomingLens controlelectric zooming, electric focusing (auto focusing optional)DetectorDetector typeUncooled microbolometer focal plane array(VOx)Effective pixels640×512Spectral range3.7~4.8μmTemp sensitivity≤[email protected],300KFrame rate25HzImage processingDDEStart time≤7m 30s (25ºC)Tracking moduleTracking algorithmCentroid/template matching tracking algorithmTarget sizeMinimum target contrast: 5%Minimum target size: 6 × 6 pixelsMaximum target size: 200 × 100 pixelsTracking speed4 pixels / frameHousingMaterialSuper strength investment casting aluminum alloyStructureIntegrated double window designWindow glassMicrocrystalline ultra - white optical glassTemperature controlBuilt-in temperature adjustment, support heating, heat dissipation, dehumidification and defrosting functionsPan-tiltAngleHorizontal 360°continuous rotation, pitching -45°~+45°SpeedHorizontal 0.01°~80°/s, pitching 0.1°~80°/sAcceleration80°/s2Preset bits255, Support lens zoom presetPreset precision±0.01°Cruising2 paths,64 bits each pathGyro-stabilization2 axis, precision ≤1mradAngle of returnSupportAuto-scan1 pathInterfacePower supply interfaceDC30V, Aviation waterproof plugNetwork interface1×10Base-T/100Base-TX, RJ45Environment indicatorsWorking temp-25ºC~+55ºCStorage temp-40ºC~+65ºCProtection gradeIP66Power supplyWhole machine power supply90VAC~305VAC to DC30V water proof power supplyWhole machine power consumption≤250WPhysical featuresWhole machine weight≤140kgDimension600×600×937(L×W×H)mmInstallation methodOutdoor pedestal mounting Note: The monitoring distance is affected by different attenuation coefficients, and the operating distance will be different. The specific situation depends on the scene.   4 Our Services (1)  We generally offer one year warranty. Extended warranty is also available.  (2) Life-long technical support. Professional technical team and salesperson help you with troubleshooting procedures any time when needed. (3) We accept OEM. (4) We offer customized product.    5 Company Introduction China CZVZ Optics & Electronics Co., Ltd, which was founded in 2004, is a leading night vision equipment and rugged information equipment supplier, as well as a relying construction company of Shandong Province Academician Workstation and Night Vision Surveillance Engineering Technology Research Center. CZVZ adheres to independent innovation, developed the world's first laser night vision camera and the first uncooled continuous zoom infrared thermal imaging camera with independent intellectual property rights, its synchronous zoom laser night vision technology and continuous zoom thermal imaging technology have reached international advanced standard level, possess the world's largest market share in laser night vision market. CZVZ's laser night vision and infrared thermal imaging products have been widely used in national defense, safe cities, railways, highways, forest fire, oil and other fields, achieved all-weather surveillance, provided technical support for the maintenance of national security and social stability. CZVZ's rugged information equipment have been widely used in land, sea, air, the Second Artillery Corps, armed police and other branches of the military, greatly promoted the national defense information technology. In addition to domestic market, the company's products have been exported to more than 40 countries and regions all over the world. CZVZ always adheres to "military technology for civilian use " and "joint development of military products and civilian products" strategy, mastered the key technology in optics and rugged computer field, possess complete qualification for research and production of military equipment, directed or participated in a number of military research and production tasks. CZVZ insists on the belief "growing up with customers and employees" and ready to make more contribution to national defense and public security.
