Dual-Sensor Thermal Imaging Camera for Miltary Vehicle Mounting Surveillance

Model NO. N-VLV1000IR104R Sensor CCD&Vox HDMI Format Analog Horizontal Resolution 540tvl Kind Autofocus Lens Certification CE, FCC, ISO9001: 2000 Feature Waterproof / Weatherproof, High Definition, Vandal-proof, Auto BLC Effective Distance ≥1000m Sensor Size 1/4 inch Remote Control Optional Visible Light Camera Monitoring Distance 1000m Thermal Imaging Camera Detection Distance 2.4 Km to Human Visible Light Camera Sensor 1/4" Exview Had CCD Thermal Imaging Camera Detector Uncooled Microbolometer Fpa(Vox) Visible Light Camera Lens 3.5mm~122.4mm Thermal Camera Lens 25mm~100mm Transport Package Wooden Case/Carton Specification 60× 60× 40cm Trademark SHEENRUN Origin China Production Capacity 1000

Product Description

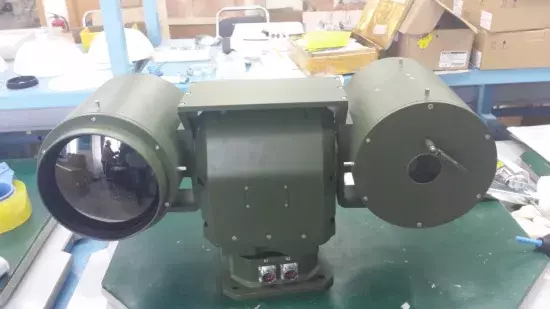

SHR-VLV1000HTIR104R Double Sensor Thermal Imaging Camera   Introduction :         SHR-VLV1000HTIR104R double spectrum night vision camera combines thermal imager, visible camera and pan-tilt together, has two video output, 360°horizontal rotate, PTZ design, can realize 24hrs monitoring.This product has two operation mode, day mode and night mode. In day mode, it uses CCTV camera to image; while under night mode, it uses thermal camera to image.         This product can be widely used in many occasions at night, harsh environment, long distance, large scope and hidden monitoring.Features:640*512,25HZ Vox detector 25--100mm 4X continuous zoom lens.thermal zoom technology, clear image, auto focus Day night low illumination color to black CCD camera, can realize continuous monitor Shift pantilt, realize full monitor and high precision position Easy operation, easy to use and maintain Hidden thermal, uneasy to be found Professional design, smart, low weight and anti harsh environment Low power consumption, stable performance Easily for integrating Laser range finder(Optional)Thermal Imager:Sensor             640*512,9HZ or 25Hz uncooled FPA Vox detector Thermal lens    100mm fixed Wave length      8~14μm NETD               ≤50mk F1.0,300K Image processing   AGC,DDEDay/Night CCD Camera:Sensor             1/4" Exview HAD CCD Valid pixels       440000,550TVL Zoom               36x optical zoom Focal length     3.4~122.4mm  FOV                 57.8° (H) to 1.7° (H) Min illumination    0.01Lx Zoom method    Auto/manual Shutter              1/1~1/10000sPan/tilt:Rotating Speed      Tilt 0°~30°/s, Pan 0°~22°/s Presets                   128(support object tracking) Scan and cruising function     Support Cruise function      2 pathsVideo Output:Video output          PAL or NTSC for thermal and visible Streaming Video        MPEG-4, H.264, or M-JPEGIP video               Video ServerEnvironmental:Operation Temperature       -30ºC~+ 60 ºC Storage Temperature         -40ºC~+ 85 ºC Protect Grade                 IP66 Anti-impact                  GB/T15412-94 Anti-vibration                 GB/T4857.10-2005 Anti-thunder                  2000vPower:Requirements 24 VAC/24 VDCSystem Compatibility:Compatibility with VMS and Video AnalyticsSystem Shape and dimension:System connection referenceCamera can be connected with other equipment to form a system.  Effect Demo:
