Dual-Sensor Thermal Day Camera 2.8km Human 8km Vehicle for Border Surveillance

Model NO. SHR-HVLV1000HTIR104R Sensor CMOS HDMI Format 1080P Horizontal Resolution 1920*1080P Kind Autofocus Lens Certification CE, FCC, RoHS, ISO9001: 2000 Feature Waterproof / Weatherproof, High Definition, Vandal-proof, Auto BLC Effective Distance 1km Remote Control With Remote Control Factory Yes Certificate CE Color White Video Compression Format H.264 Vehicle Camera PTZ Camera Spectrum 8~14μm Material Aluminum Alloy Power 5W Wave Length 810m Total Pixels 2.1MP Lens Aperture F1.6-3.5 Coded Format H.264 Bitrate 64kbps-4Mbps Preset 256 Auto Cruising 6 Paths Transport Package Carton Box or Wooden Box Origin China Production Capacity 500 PCS/Month

Product Description

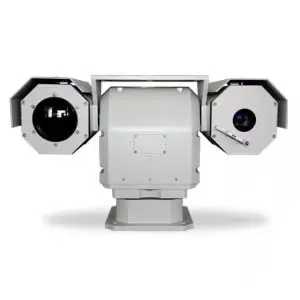

SHR-HVLV1000HTIR104 Dual-sensor Thermal Day Network Camera    See through the fog, smoke, dust and other hazardous atmospheres in total darkness Introduction SHR-HVLV1000HTIR104 double spectrum night vision camera combines thermal imager, visible camera and pan-tilt together, has two video output, 360°horizontal rotate, PTZ design, can realize 24hrs monitoring.This product has two operation mode, day mode and night mode. In day mode, it uses CCTV camera to image; while under night mode, it uses thermal camera to image. This product can be widely used in many occasions at night, harsh environment, long distance, large scope and hidden monitoring. night vision 400m Day vision 700m       Laser illuminator Power 5W Wave length 810m Illuminating angle 2°-50° synchronous continuous adjustment Even light LCMM even light technology             Visible light Camera Sensor 1/2.8" Progressive Scan CMOS Total pixels 2.1MP Lens f=4.7-94mm, 20x optical zoom Lens aperture F1.6-3.5 Minimum illumination 0.05Lux (color), 0.01Lux (black and white) Electronic shutter speed Auto and manual adjustment Camera control Auto gain control, auto white balance, auto backlight compensation, supporting manual and auto day and night mode switch         Video coding Coded format H.264   Video resolution 1920 x 1080 Bitrate 64Kbps-4Mbps Frame rate 1-25f/s(50Hz), 1-30f/s(60Hz) Subtitle overlay station logo, date, time Supporting protocol TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, UPnP, SNMP, FTP, 802.1x, QoS, HTTPS, IPv6 (SIP, SRTP optional)       Pan/tilt Rotate angle range Pan 360° continuous, tilt -90° to +90° Rotate speed range Pan 0°-80°/s, tilt 0°-60°/s Preset 256 Auto Cruising 6 paths         Environment Working Temperature -25ºC~+55ºC(-40ºC~+55ºC customized)   Storage -40ºC~+65ºC Protection grade IP66 Aniti-vibraion GB/T15412-94 Anti-thunder 2000V     Physical features Weight 8kg Diemnsion 240mm×374mm×243mm Installation Outdoor base installation System Shape and dimension Range Performances for SHR-HLV1000HTIR Thermal camera with 640*512 pixel detector Effect Demo
