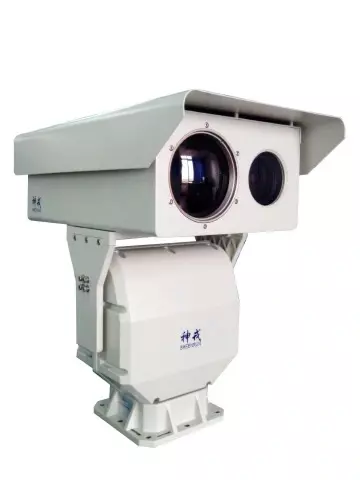

Dual-Sensor Forest Fire Detection PTZ Thermal Camera

Model NO. SHR-HLV1020TIR104RAT Sensor CMOS HDMI Format 1080P Horizontal Resolution 540tvl Kind Autofocus Lens Certification CE, FCC, ISO9001: 2000 Feature Waterproof / Weatherproof, High Definition Effective Distance 4 Km Sensor Size 1/3 inch Remote Control With Remote Control Weight 40 Kg Transport Package Carton Specification 540mm× 343mm× 560mm Trademark CZVZ Origin Shandong Province, China Production Capacity 200 Units / Month

Packaging & Delivery

Package Size 60.00cm * 50.00cm * 40.00cm Package Gross Weight 30.000kg

Product Description

                                           Forest fire monitoring solutionsForest fire usually happen suddenly and randomly, and may cause huge losses in short time. So once there is a fire alarm, we need to take action immediately, but how we can receive the alarm message and response in a quick time? That' s what CZVZ software and camera can realize: the laser night vision camera and infrared thermal imaging camera are widely used for forest fire monitoring. Our software can support customer GIS system and obtain the fire object position data. The whole system includes the camera, the transmission system and display platform, it can work 24h/7days.This system is design for forest fire alarm. But it can be used for all long range fire alarm system.   SHR-HLV1020TIR104RAT Dual-sensor Forest Fire Detection PTZ Thermal Camera   1. Product Features1. Adopting continuous zooming thermal imaging technology, imaging clearly, can search in large area and recognize objectives in long distance2. 324×256 high resolution thermal detector with high temp sensitivity, NETD ≤ 50mK3. Day and night 2 megapixels low illuminance color camera, realizing day and night continuous monitoring4. Auto focusing function, realizing multiple focusing mode and triggering mode5. Thermal imaging camera presetting function, remembering FOV of each preset bit, enhancing working efficiency6. 3D locating function, can realize frame selection magnifying function and clicking to center function, reducing operating difficulty, enhancing device usability7. Professionally designed housing, artistic, light, firm, anti-high temp, anti-corrosion, water proof, anti-acid rain  2. Technical Specifications DistanceDay cameraDetection distance 3000mThermal cameraTargetfire(1m×1m)fire(2m×2m)Alarm distance2000m4000mAlarm detectionAlarm termHigh temperature area take 2×2 pixelsAlarm   threshold value1~255 levelsTarget size2×2~ 324×256pixelAlarm targetSet 1-6 targets, show high temperature target automaticallyAlarmVideo alarm with audioCalculationCalculation in 0.1S,no delay,no information lostDay camera lensFocal length                     10~320mmF valueF2.5~F16FOV1.2º~38.5ºAuto irisDC driveDay cameraSensor1/1.8''Progressive Scan CMOSPixels2MPColor modeIntegration ICR double filter switch between day and nightShutter speedAuto/manualVideo controlAGC, AWB, support day/night mode switch auto/manualFog penetratingON/OFFWDRON/OFFBLCON/OFF and area optionalInterested areaSupport ON/FF, area optionalBack focus adjusting techSupport, remote controlNoise reduction3D digitalCode typeH.264/MJPEG/MPEG4Resolution1080p,Video rate32Kbps~16MbpsFrequency50Hz:25fps(1920×1080),25fps (1280×720)60Hz:30fps(1920×1080),30fps (1280×720)Character addingCamera number, time, dateImage adjustmentLight, contrast, saturation, sharpInternet protocolTCP/IP/RTP/RTSP/HTTP/DNS/DDNS/DHCP/FTP/NTP/PPPOE/SMTP/UPNPThermal lensFocal length25-100mmFOV4.6°×3.7°~18.2°×14.6°Space resolution0.25~1.00mradThermal detectorDetector TypeUncooled detector(Vox)Pixel324x256Spectrum Range8~ 14μmNETD≤[email protected], 300KFrequency25HzNon- uniformity correctionAuto/manualImage ProcessAGC, DDE, Pseudo ColorVideo outputPALPantiltBurden weight50kg(top load)Horizontal angleHorizontal 0º~360ºVertical angle-45º~+45ºPan speed0.01º~20º/sTilt speed0.01º~12º/sPresets200Presets precision±0.1ºAuto cruise8 paths, each path can set up 10 presetsAuxiliary switch2Thunder proof2000VSize320mm×206mm×380mm(L×W×H)InterfacePowerDC30VInternet1×10Base-T/100Base-TX,RJ45VideoRS422,BNC,alarm outputEnvironmental indicatorsOperation temperature-25 ºC~+55 ºCStorage temperature-40 ºC~+65 ºCInternational protectionIP66Salt fog proofPH6.5~7.2, Continuously spraying 48 hoursPowerWhole powerDC30VConsumption≤150WPhysical featuresWeight≤40kgSize540mm×343mm×560mm(L×W×H)InstallationOutdoor base    3 Our Services (1)  We generally offer one year warranty. Extended warranty is also available.  (2) Life-long technical support. Professional technical team and salesperson help you with troubleshooting procedures any time when needed. (3) We accept OEM. (4) We offer customized product.   4 Company Introduction China CZVZ Optics & Electronics Co., Ltd, which was founded in 2004, is a leading night vision equipment and rugged information equipment supplier, as well as a relying construction company of Shandong Province Academician Workstation and Night Vision Surveillance Engineering Technology Research Center. CZVZ adheres to independent innovation, developed the world's first laser night vision camera and the first uncooled continuous zoom infrared thermal imaging camera with independent intellectual property rights, its synchronous zoom laser night vision technology and continuous zoom thermal imaging technology have reached international advanced standard level, possess the world's largest market share in laser night vision market. CZVZ's laser night vision and infrared thermal imaging products have been widely used in national defense, safe cities, railways, highways, forest fire, oil and other fields, achieved all-weather surveillance, provided technical support for the maintenance of national security and social stability. CZVZ's rugged information equipment have been widely used in land, sea, air, the Second Artillery Corps, armed police and other branches of the military, greatly promoted the national defense information technology. In addition to domestic market, the company's products have been exported to more than 40 countries and regions all over the world. CZVZ always adheres to "military technology for civilian use " and "joint development of military products and civilian products" strategy, mastered the key technology in optics and rugged computer field, possess complete qualification for research and production of military equipment, directed or participated in a number of military research and production tasks. CZVZ insists on the belief "growing up with customers and employees" and ready to make more contribution to national defense and public security.
