Name:

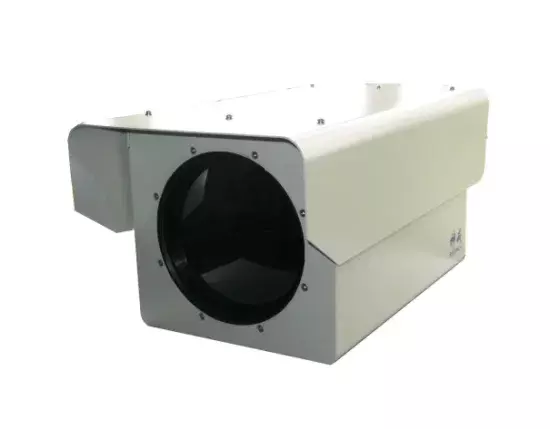

Dual Fov Thermal Camera with 75 mm/300 mm Lens

Detail:
Model NO. SHR-TIR75-300R Sensor CMOS HDMI Format 1080P Horizontal Resolution 540tvl Kind Autofocus Lens Certification CE, FCC, ISO9001: 2000 Feature Waterproof / Weatherproof, High Definition, Vandal-proof Effective Distance 2.5 Km/10 Km Sensor Size 1/4 inch Remote Control With Remote Control Weight ≤10 Kg Transport Package Box Specification 405mm× 245mm× 258mm Trademark Czvz Origin Shandong Province, China Production Capacity 200 Units / Month
Price: $25,000.00
Why Can We Provide this Competitive Price?
With digital management and bulk purchases from original manufacturers and authorized suppliers globally, Router-switch.com guarantees quality and authenticity at a competitive price.
Coupon
Up to $80 Coupons
Get Now
$10.00
Order Over $100
RS10
$20.00
Order Over $2000
RSTW
$50.00
Order Over $5000
RSFI
$80.00
Order Over $8000
RSEI
Availability: In Stock
$ 25,000.00 In stock 3 Years
3 years warranty
Quote now, save up to 8%.
United States
Payment:
  • Pay by wire transfer.
  • Pay with your paypal.
  • Pay with your webmoney.
  • Pay with your onafriq.
  • Pay with your Visa credit card.
  • Pay with your Mastercard credit card.
  • Pay with your Discover Card.
  • Pay by Western Union.
More
Support:
TZS, XAF, TZS payment.
  • Genuine Guarantee
  • Price Protection
  • Bulk Order Rebate
  • 100% Moneyback

Dual Fov Thermal Camera with 75 mm/300 mm Lens

Price: $25,000.00
Overview
Model NO. SHR-TIR75-300R Sensor CMOS HDMI Format 1080P Horizontal Resolution 540tvl Kind Autofocus Lens Certification CE, FCC, ISO9001: 2000 Feature Waterproof / Weatherproof, High Definition, Vandal-proof Effective Distance 2.5 Km/10 Km Sensor Size 1/4 inch Remote Control With Remote Control Weight ≤10 Kg Transport Package Box Specification 405mm× 245mm× 258mm Trademark CZVZ Origin Shandong Province, China Production Capacity 200 Units / Month

Product Description

  Dual Fov Thermal Camera with 75 mm/300 mm Lens   Dual Fov Thermal Camera with 75 mm/300 mm Lens   Dual Fov Thermal Camera with 75 mm/300 mm LensSHR-TIR75-300R Dual FOV Thermal Camera
     Features   Uncooled microbolometer infrared focal plane arrays,vox 25µm pixel, image quality fine, observe small target more clearly, further detection distance High sensitivity, NETD can reach 50mk and frame at 25Hz, good fog penetrate Dual FOV lens, can expand the search scope, and also identify distant goals, do not lose the target, switch quickly Advanced image noise reduction process, DDE(digital image details enhancement) function, outputting hot white/ hot black/ pseudo color image Low power consumption, quick start, stable performance Standard RS485 interface control, analog video signal output Simple operation, easy to use and maintain Precision cast aluminium alloy housing, seal waterproof, nitrogen inside, anti-harsh environment, super long work life Technical data  Monitoring DistanceObjectHuman (1.8m×0.5m)Vehicle (2.3m×2.3m)Detection1800/7200m4950/19800mRecognition450/1800m1240/4950mIdentification220/900m600/2400mDetectorTypeUncooled microbolometer FPA (Vox)Resolution324×256, pixel 25μmSpectrum8~14μmNETD≤50mKFrame25HzFFCAuto/ manual/ background correctionImage processDDE/pseudo colorVideo outputPAL/NTSCLensFocal length75/300mm, dual FOV lensFOV6.2°× 4.9°~1.5°× 1.2°F valueF1.0/F1.2Lens controlE-zoom/focusInterfacePowerDC12VOthersRS485, BNC video outputEnvironmental indicatorsOperation temperature-25ºC~ +55ºC(-40ºC~ +55ºC customized)Storage temperature-40ºC~ +65ºCProtectionIP66Vibration10~ 55Hz, 0.75mmAnti-impact150m/, 11msSalt-fog proof PH 6.5~7.2, continuously spraying 48 hours,  surface with no changePowerWhole powerDC12V (Equip with AC220V/DC12V power adapter)Power consumption8WPhysical featuresWeight≤10kgSize405mm x 245mm x 258mmInstallation methodOutdoor base install

Specification

Dual Fov Thermal Camera with 75 mm/300 mm Lens Specification

Model NO. SHR-TIR75-300R Sensor CMOS HDMI Format 1080P Horizontal Resolution 540tvl Kind Autofocus Lens Certification CE, FCC, ISO9001: 2000 Feature Waterproof / Weatherproof, High Definition, Vandal-proof Effective Distance 2.5 Km/10 Km Sensor Size 1/4 inch Remote Control With Remote Control Weight ≤10 Kg Transport Package Box Specification 405mm× 245mm× 258mm Trademark Czvz Origin Shandong Province, China Production Capacity 200 Units / Month
