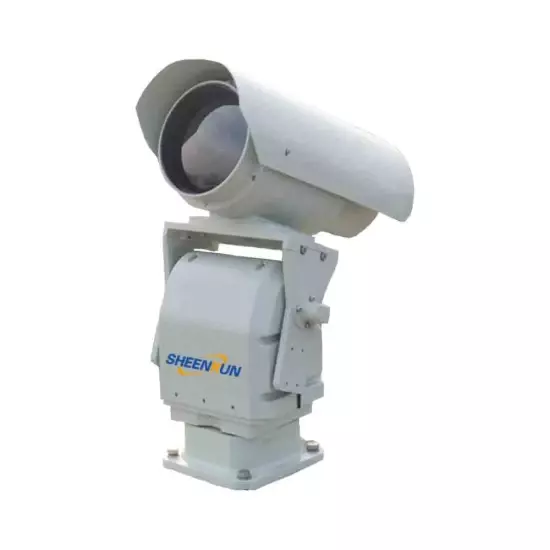

Desert Border 7km Human Detect Distance PTZ Thermal Imager Camera

Model NO. SHR-TIR104 thermal camera Sensor CMOS HDMI Format 1080P Horizontal Resolution 480tvl Kind Autofocus Lens Certification CE, FCC, CCC, ISO9001: 2000 Feature Waterproof / Weatherproof, High Definition, Mini Size, Vandal-proof, Auto BLC Sensor Size 1/3 inch Remote Control With Remote Control Weight 4kg Transport Package Wooden Case/Carton Specification IP66 Trademark CZVZ Origin Jinan, Shandong, China Production Capacity 5000

Packaging & Delivery

Package Size 65.00cm * 60.00cm * 45.00cm Package Gross Weight 25.000kg

Product Description

SHR-DIR104A Continuous Zooming Infrared Thermal Camera SHR-DIR104A continuous zoom thermal imaging camera, adopts continuous zoom thermal imaging technology, both for a wide range of search, but also to identify distant targets. The product overcomes the shortcomings of the fixed focal length or dual field of view thermal imaging at home and abroad, imaging clear, powerful, stable performance in the zooming process. At the same time, the product has a strong and excellent sealing performance of the shell filled with nitrogen. Not affected by rain and snow, dust, it can work in harsh environments. Set of uncooled focal plane infrared detectors, advanced electronic and optical systems in one, it is able to penetrate the dust, smoke, rain and snow, providing the perfect image! The product can meet the military requirements such as night observation, identification, tracking and analysis of various thermal targets, and can work round the clock in patrolling law enforcement, military investigation, security monitoring and long-distance search and rescue.   Features

1) 324×256 (640/1024) High resolution uncooled microbolometer infrared focal plane arrays,vox 2) 25µm super small pixel,image quality fine,observe small target more clearly,further detection distance 3) High sensitivity, NETD can reach 50mk and frame at 25Hz 4) Word originate 25~100mm continuous zooming,can search in a wide range as well as identify target far,don't lost target 5) Image noise reduction processing,add DDE function; output hot white/ hot black/pseudo color 6) Low power consumption, quick start-up, stable performance, image clearly with high uniformity 7) RS 485 interface control, analog video signal output 8) Simple operation,easy to use and maintain 9) Precision casting aluminium alloy shell,sealed and waterproof,nitrogen inside, anti-harsh environment,overlength working lifetime

Thermal camera specification



Monitoring distanceObjectPeople(1.8m×0.5m)Vehicle(2.3m×2.3m)Detect distance2400m6600mRecognize distance600m1650mIdentification distance300m800mThermal lensFocal length25~100mm,4x optical zoomFOV4.6°×3.7°~18.2°×14.6°F1.0Lens controlElectronic zoom/focus(auto focus is optional)DetectorDetector typeUncooled FPA detector(vox)Pixel324×256,pixel 25µmSpectrum8~14μmNETD≤50mKFrame25HzNUCAuto/Manual/Background correctionImage processDDE,pseudo colorVideo outputPALInterfacePower supply interfaceDC12VOther interfaceRS485,BNC Video outputEnvironmental indicatorsWorking temperature-25ºC~+55ºCStorage temperature-40ºC~+65ºCInternational protectionIP66Anti-vibrationGB/T 4857.10-2005Anti-impactGB/T 15412-94 Free drop test methodAnti-thunder2000VPowerPower supplyDC12V(attached AC220V/DC12V power adapter)Power consumption≤8WPhysical featuresWeight≤4KgSize390mm×174mm×173mm(L×W×H,contain sunshield cover)InstallationOutdoor base install Company Profile
