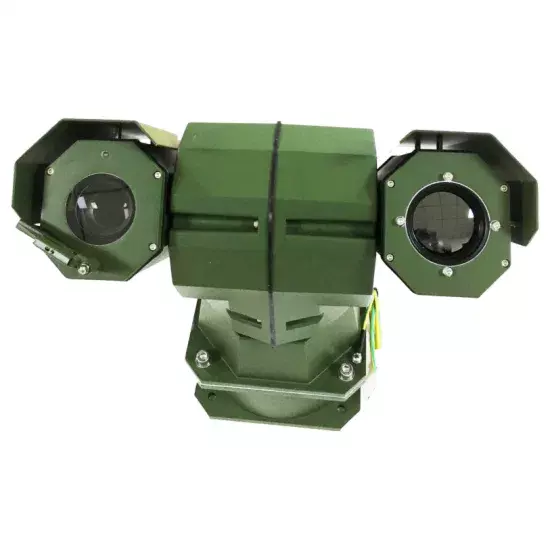

Daylight and Thermal Dual Sensor Surveillance Camera for Pond Security

Model NO. HLV330DIR5 Sensor CMOS HDMI Format 1080I Horizontal Resolution 540tvl Kind Manual Focus Lens Certification CE, FCC, ISO9001: 2000 Feature Waterproof / Weatherproof, High Definition, Mini Size, Vandal-proof Effective Distance ≧30m Sensor Size 1/3 inch Remote Control With Remote Control Thermal Camera Lens 50mm Thermal Camea Sensor Vox Transport Package Carton Specification 240mm× 374mm× 243mm Trademark CZVZ Origin Shandong Province, China Production Capacity 200 Units / Month

Packaging & Delivery

Package Size 45.00cm * 35.00cm * 30.00cm Package Gross Weight 14.000kg

Product Description

Product features1. Integrating infrared thermal imaging, visible light camera and pan-tilt controlling system, realizing day and night omni-directional monitoring2. Adopting thermal imaging technology, not limited by light source, imaging clearly3. Day and night 2 megapixel low illuminance color camera, realizing details observing4. High intelligence, simple to operate, easy to use and maintain5. 3D locating function, realizing frame selection magnifying and clicking to center, reducing operating difficulty, enhancing device usability6. Universal variable speed pan-tilt, realizing omni-directional no blind angle monitoring and high precision locating Specification  Monitoring distanceVisible light1000mThermal imagingobjectHuman(1.8m×0.5m)Vehicle(2.3m×2.3m)Detection distance1350m3800mRecognition distance338m950mIdentification distance169m475mCamera and video codingSensor type1/2.8" Progressive Scan CMOSTotal pixels2.1 MPLens focal lengthf=4.5~135mm,30* optical zoomingCamera controlAuto gain control, auto white balance, auto backlight compensation, supporting manual and auto day and night mode switchCoding formatH.264Video resolution1920x1080Video frame rate1~30F/SImage adjustmentbrightness, contrast ratio, saturationThermal imaging cameraDetector typeuncooled microbolometer focal plane array(Vox)Effective pixels384×288Spectral range8~14μmTemp sensitivity≤[email protected],300KFocal length50mmFOV8.78°×6.59°Frame rate25HzLens controlElectric focusing(auto focusing optional)Image processingDDE, pseudo colorPan-tiltAngleHorizontal 360°continuous rotation, pitching -90°~+90°speedHorizontal 0°~80°/s, pitching 0°~60°/sPreset bitsMax 256Cruising6cruising paths,20 bits each pathAnti-lightningTVS 6000VInterfacePower supply interfaceDC12VNetwork interface1×10Base-T/100Base-TX,RJ45Other interfacesRS485,BNC video outputEnvironment indicatorsWorking temp-25ºC~+55ºCStorage temp-40ºC~+65ºCRelative humidity10%~90%Anti-salt fogcontinuous spraying for 48 hours at PH 6.5-7.2,surface with no changesProtection gradeIP66Power supplyWhole machine power supplyDC12V, appendant 220VAC~12VDC/3A water proof power supplyWhole machine power consumption≤30WPhysical featuresWhole machine weight≤8 kgInstallation methodOutdoor pedestal mounting   Effect Image
