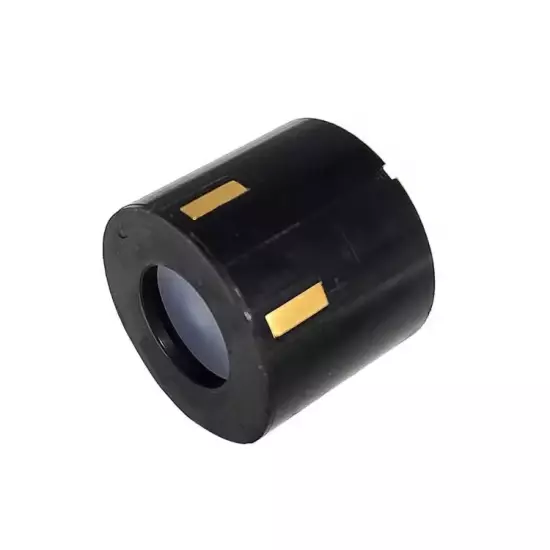

Danv Image Intensifier Night Vision Tube Mx 10160

Model NO. DA-Image Intensifier Tube Style Head-mounted Structure Binocular Kind Image Intensifier Night Vision Operation Principle Low-light Night Vision Shell Material Plastic Customized Customized Fom 1600/1700 Snr 25 Magnification 1X Resolution 64 Lp/mm Fov 40 Degree Electric Connection End Lead/Contacts Sensitivity (2856K) 800 μa/Lm Image Intensifier Tube Gen2+ / Gen 3 Waterproof IP65(IP67 Optional) Battery Type Lithium Batteries Cr123X1 Weight 80g Brand Name CZVZ Model Number Mx10160 Name Mx 10160 Figure of Merit 1600 Transport Package Safety Box Provided Specification 14X8X10 cm Trademark DA-Image Intensifier Tube Origin China HS Code 9005809000 Production Capacity 200PCS/Month

Product Description

DANV Image Intensifier Night Vision Tube MX 10160

Product Description



FOM1400+ image intensifier tube is a basic version product, which adopts a high-contrast optic fiber inverter and input enhancement technology with optional autogating. When the FOM reaches more than 1400, it can present excellent image quality in low light conditions. It is a cost-effective product.

FOM1600+ image intensifier tube adopts new MCP processing technology and new photocathode process. It is equipped with autogating and has the characteristics of high all-weather reliability. Compared with NVT4, its sensitivity is increased to more than 800, and the SNR is greater than 25.

FOM1800+ image intensifier tube uses the latest S25R photocathode manufacturing technology. The photocathode sensitivity is higher than 1000μA/lm@2856K, and it has high sensitivity in the near-infrared band. The spectral range is from 380nm to 1100nm, with higher spectral sensitivity  in the near-infrared band, capable of imaging 1064nm lasers with halo reduced to less than 0.7mm.

PRODUCT      SPECIFICATIONSFOM1400+1600+1800+2000+Sensitivity  (μA/lm)700+750+/850+1000+1000+SNR23+25+28+28+Resolution(lp/mm)64+64+64-7264-72Photo CathodeS25+S25+S25RS25ROperating voltage (V)2.2-3.42.2-3.42.2-3.42.2-3.4Operating current (mA)15252525Luminance gain  (cd/m²/lx)8000-120009000-1200010000-2000010000-20000Maximum output brightness  (cd/m²)4~84~84~104~10EBI  (μlx)≤0.25≤0.25≤0.25≤0.25Uniformity of luminance(2856K)3:13:13:13:1Cathode effective diameter (mm)≥17.5≥17.5≥17.5≥17.5Power supplyNon Auto-gate/Auto-gateNon Auto-gate/Auto-gateAuto-gateAuto-gateFluorescent powderP22/P43/P45P43/P45P43/P45P43/P45Weight (g)≤80≤80≤80≤80Power dissipation (mW)33-5155-8555-8555-85 Specification

REAL FOM ValueFOM value we provide is the real figure of merit, FOM1600 is FOM1600, FOM 2000 is FOM2000, never and ever lies. See below test report from NNVT , it's real Gen 3rd, FOM=60*30.98=FOM1858

Auto-gating Available

Autogating is an extremely critical feature for IITs' life that dynamically and automatically controls the bright into the image intensifier, so that auto-gating function can well help IITs avoid damage due to brightlight.

In Stock!!!CZVZ has over 300 pcs Gen 2+ image intensifier tubes and over 100 pcs Gen 3 Image intensifier tubes in stock now, so you can not only get your tubes very fast, but also receive your PVS-14, PVS-31and PVS-7 in a short time!
