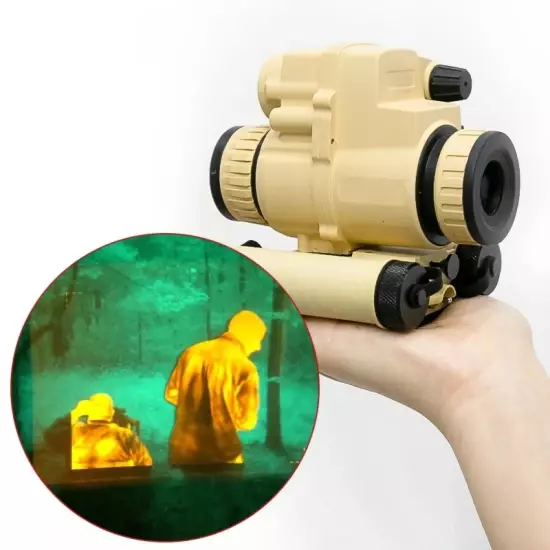

Da-Fin3/6 384/640 Fusion Day and Night Thermal Night Vision Monocular

Model NO. DA-FIN3/6 Style Customized Structure Monocular Kind Fusion Thermal Monocular Operation Principle Low-light Night Vision Shell Material Customized Customized Customized Magnification 1X Fom, Typical 1400 Transport Package Box Specification ≤ 380 g Trademark DA Origin China

Product Description

Product Description

DA-FTN3/6 is an enhanced night vision goggles,night vision monocular that combines Gen2+(EU Gen3) night vision and thermal imaging technology to see the target clear in night, dark, and in extreme environments such as smoke, fog, rain, and snow. It can also be widely used in patrols, search and rescue, drug control, arrest of criminal suspects and other scenarios. Due to its water resistance IP67, the device performs well even in harsh weather conditions and challenging environments.

DA-FTN3/6 is equipped with a 640x512 resolution(DA-FTN3/6 equipped with a 384x288 resolution), 12μm high-sensitivity thermal detector and Gen2+/EU Gen 3 night vision image intensifier tube. The DA-FTNM  can be used as a handheld device or mounted on a helmet. And the user-friendly interface and comfortable ergonomic operation control make the equipment very easy to use. The device offers different image views: thermal, night vision, and enhanced fused images, and can also be easily adapted to different ambient conditions. The DA-FTNM is also equipped with a manual gain control that adjusts image brightness to provide the highest image quality even in changing light conditions.DA-FTNM can be used for more than 8 hours with two 18650 batteries in full function mode, and more than 60 hours in low light. In addition to the ordinary black and white thermal modes, the DA-FTNM  also has an orange thermal mode, which can outline contours and highlight targets.



Advantage



Component



Product Parameters



Thermal Imaging Parameters

Sensor

640*512px or 384*288px optional

IRField of View

25.8°×19.1°

Infrared Focal Length

16 mm

Gain Adjust

Support

Contrast Adjust

Support

Gen2+/EU Gen3 Night Vision Parameters

Photocathode Type

18 mm S25+

Photocathode Sensitivity, Typical

600-900

Resolution

≥60 lp/mm

Luminous Gain, Typical

10000 fl/fcd

Signal to Noise Ratio, Typical

23

FOM, Typical

1400

Low Light Field of View

40°

Low Light Focal Length

25 mm

Focal Length Range

0.25 m to infinity

Gain Adjust

Support





Product Model

DA-FTNM

Lens Parameters

Magnification

1x

Exit Pupil Diameter

15 mm

Exit Pupil Distance

25 mm

Diopter

-3.5~+2.5

Compass Indication

Direction, Pitch Angle, Roll Angle

Display Mode

Black/White/Orange Hot, Silhouette, Target Highlighting, Breath Reminder

Effective Distance(DA-FTN3/6)

Human

(IR mode 1.7 m *0.5 m)

Recognize

200 m

Identify

400 m

Detect

1500 m

Vehicle

(IR mode 4.6 m * 2.3 m)

Recognize

500 m

Identify

1000 m

Detect

3000 m

Physical Parameters

Working Time

Full Function Mode

≥8 hours

Low Light Mode

≥60 hour

Operating Temperature

-40ºC~+60ºC

Weight

≤380 g
