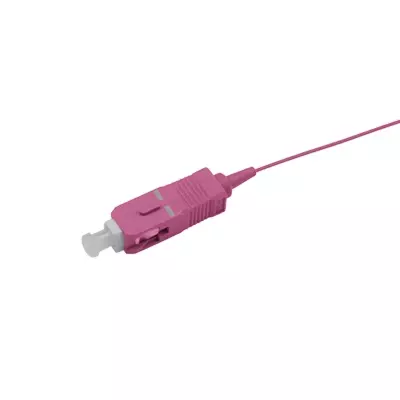

Czvz Om4 Sc Optical Fiber Pigtail Fiber Optic Patch Cord, 0.9mm LSZH

Model NO. G314-131 Material Shape Round Wire Allowed Lateral Pressure 100(N/100mm)<1000(N/100mm) Allowed Tensile Strength 100N<1000N Core Double Core Certification RoHS, CE, ISO9001 Brand CZVZ Sheath Material LSZH Connector Sc/Upc Cable Type Simplex Fiber Type mm Om4 Diameter 0.9mm Jacket LSZH Length Customized OEM Yes MOQ 1 Trial Order Accepted Samll Order Accepted Sample Free of Cost Delivery Time 1-3 Working Days Packing CZVZ or Customized Transport Package CZVZ Bag Specification 1m or customized Trademark CZVZ Origin China HS Code 85447000

Product Description



  Product Description

CZVZ Fiber Optic Patch cord is ideal for supporting high-speed network connections. It has an LSZH(Low Smoke Zero Halogen) jacket which protects from toxic and corrosive gases in poorly ventilated spaces and other areas where it is most critical. This cable also provides backward compatibility with existing 50/125 equipment and the performance headroom required to support LED and VCSEL laser light sources.

Features

|   High quality zirconia ferrules |   Low insertion loss and high return loss |   Series are qualified at 850nm and 1300nm |   100% tested to guarantee high performance |   Buffer Material: PVC |   Buffer OD: 900 µm |   Polishing way: UPC or APC |   Outer jacket:LSZH |   Installation Tensile Load: 150 N |   Long-Term Tensile Load: 50 N |   Crush load:500N |   Choice of connectors configuration |   Choice of length

  Application

|   Widely used in FTTH access network. |   Telecommunication Networks |   CCTV Networks |   Data communications Networks |   Local Area Networks

Product Parameters

Product

Fiber optic pigtail

Fiber Count

Simplex

Strength Member

Aramid Yarn

Cable Type

900um Tight Buffered

Cable Color

SM( Yellow) , MM(Orange),OM3,OM4(Aqua)

Jacket

LSZH/Riser

        About Us

FAQ

1. What is MOQ? - Most of the products do not require MOQ, we can produce from small qty.  2. Can we do ourself packing and printing? - Yes, we can do OEM with your customized packing. Please feel free to contact us for more clarifications.
