Czvz mm to Sm Fiber Optic Mode Converter, Fiber Media Converter

Model NO. GM05-22 Material Shape Square Allowed Lateral Pressure 100(N/100mm) Allowed Tensile Strength <100N Core Double Core Certification RoHS, CE, ISO9001 Brand CZVZ Sheath Material Metal OEM Yes MOQ 1 Samll Order Accepted Sample Provided Delivery Time as Per The Order Packing Customized Bandwidth 10/100/1000m Fiber Type Sm Dual Fiber Transport Package Neutral Trademark CZVZ Origin China HS Code 85447000

Product Description



Product Description

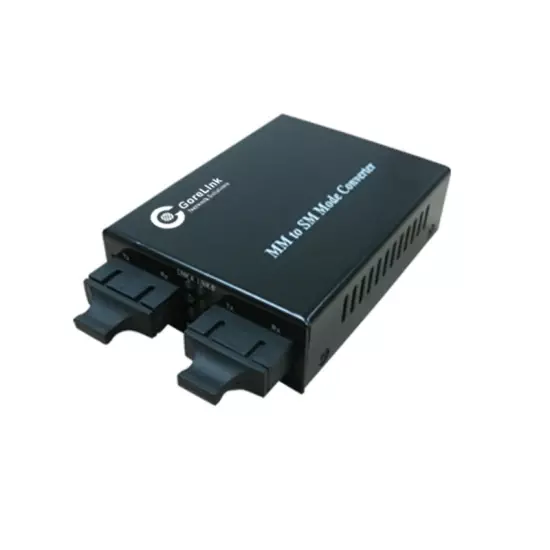

CZVZ Single Mode to Multimode Fiber Media Converter provides transparent conversion between single mode and multimode fiber networks, providing a cost-effective way to utilize two different types of fiber cabling. The SM to MM Fiber media converter supports a total fiber connection distance of up to 10 KM. Designed to offer a durable and convenient fiber conversion solution, the Single Mode to Multimode Fiber Media Converter features an all-steel chassis and can be wall-mounted for out-of-the-way installations.

Features

|   Easy to use and install |   Cost-effective way to utilize two different types of fiber cabling |   Converts single mode fiber to multi-mode fiber and vice-versa |   Supports 9/125um Single Mode or Multi-Mode fiber cabling

  Application

|   Apply to Urban Intelligent Traffic |   Monitoring System (ITS), Safe City |   Fiber network system |   CCTV, Security

Product Parameters

Interface

Fiber Port 1

For Multimode Dual SC port

Fiber Port 2

For Singlemode Dual SC port

LED Indicators

Power: PWR; Link;  Link/Act

Network Media

Fiber

Multi-mode

850nm -550M

1310nm -2KM

Singlemode

20/40/60/80KM

Fiber Wavelength

MM

850nm

1310nm

SM

1310nm

1550nm

Properties

Packet Buffer Memory

256K

MAC Table Size

4K

MTBF

 >100,000 hours

Forwarding Mode

Store and Forward

Power Supply

Input power

5V DC 2A

Power consumption

≤5W

Fiber Cable

MM 50/125um,62.5/125um,SM 9/125um

  Detailed Photos
