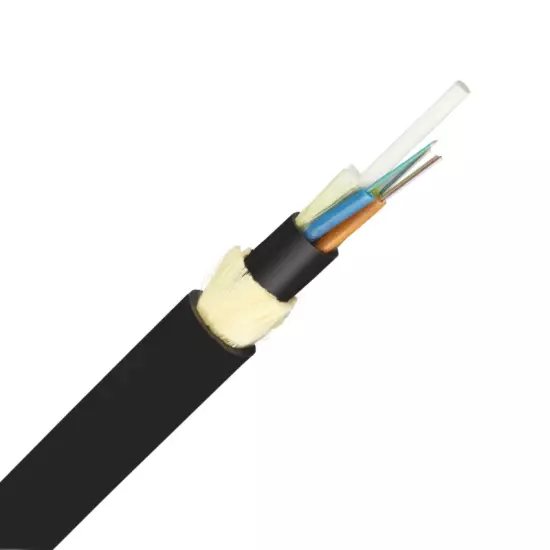

Czvz Double-Jacket Singlemode 2-144 Cores ADSS Optical Fiber Cable, Suitable for Outdoor Aerial Application

Model NO. G1T9-524 Material Shape Round Wire Allowed Lateral Pressure 100(N/100mm)<1000(N/100mm) Allowed Tensile Strength 100N<1000N Core Multicore Certification RoHS, CE, ISO9001 Brand CZVZ Sheath Material PE OEM Yes MOQ 1000m Small Order Accepted Suitable Outdoor Aerial Sample 1-2m Free Transport Package Polywooden Drum Trademark CZVZ Origin China HS Code 85447000

Product Description



Product Description

CZVZ ADSS (All-dielectric Self-supporting) cable is designed for aerial installation and deployment, which is suitable for various outdoor applications. This comprehensive introduction will cover the definition, structure, advantages, and applications of ADSS cables. It is designed for outside plant aerial and duct applications in local and campus network loop architectures from pole-to-building to town-to-town installations.

Features

|   Widely used for applications near high-voltage power distribution lines |   Small span 100m |   Gel filled Loose tube with FRP strength member |   Light weight and small size |   Resistance to lightning stroke and electromagnetic interference |   Tested to meet or exceed TIA & GR-409-CORE standards

Application

|   Widely used in FTTH access network. |   Telecommunication Networks |   CCTV Networks |   Data communications Networks |   Local Area Networks

Product Parameters

Fiber Type

Singlemode G652D

Fiber count

4-144 cores

Central Strength member (CSM)

Material

FRP

Loose Tube

Material

PBT

Color

Full color spectrum

Inner jacket

Material

PE

Color

Black

Non-metal reinforced pieces

Material

Aramid yarn+water blocking yarn

Outer Jacket

Material

PE

Min. bending radius

Static

12.5 times cable diameter

Dynamic

25 times cable diameter

Crush

Short term

3000N/100mm

Torsion

Load: 150N; number of cycles:10; twist angle:±180°

No obvious addition attenuation, no fiber break and no cable damage

Span

100m



Optical Fiber Characteristics For G652D & G657A

Fiber Type

Singlemode - G652.D

Wavelength

1310nm/1550nm

Attenuation(dB/km)

1310nm≤0.34

1383nm ≤0.34

1550nm ≤0.20

1625nm ≤0.24

Zero Dispersion Wavelength

1310-1324nm

Fiber Cutoff wavelength(nm)

≤1260

Cladding diameter(um)

125±1.0

Cladding material

SiO2

Cladding non-circularity(%)

≤1.0

Coating/cladding concertricity error(um)

≤12.0

Coating diameter(um)

245±7

Core diameter(um)

9±2.5

Core non-circularity(%)

≤6.0

Bending Diameter(mm)
