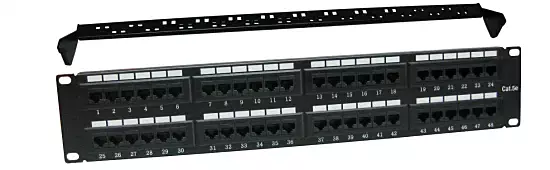

Czvz 2u 19" UTP CAT6/CAT6A 48 Port Patch Panel

Model NO. PP01-24U6 Port Number 16~48 Usage Audio, UTP Type Category 6 OEM Yes MOQ 1 Samll Order Accepted Sample Free of Cost Delivery Time 1-3 Working Days Packing Customized Transport Package Box Trademark CZVZ Origin China HS Code 85199000

Product Description

Product Description

CZVZ Unshielded CAT.6 Patch Panel is a fully loaded patch panel designed to be used within Gigabit System. It features our high-performing CAT 6 connectors specifically designed to meet the difficult challenges of 1 Gb/s transmission. providing the perfect solution for any voice or LAN application. For hassle-free connections, this Ethernet patch panel offers straight Cat6 ports with 110 type termination, making it easy to insert and remove your cables. The clear numbering on the front and back of the network patch panel enables quick and easy identification of cable runs for efficient system management. All sockets in the panel are commonly linked through the panel and can be grounded to the rack using the earth wire provided. When combined with Cat6 UTP Modules and Cable, the link will perform well in excess of Category 6 specifications.

Features

|   T568A & T568B wiring sticker on PCB |   The Cat 6 channel transmission performance complies with TIA/EIA 568 C.2 1G & ISO/IEC 11801 standard |   Fits Standard 19" Racks and Cabinets Numeral marking of ports on the front side of the panel |   Color and numeral marking of IDC modules on the rear side of the panel |   Provides Excellent Performance for Data Networks |   Requiring Maximum Speed and Bandwidth |   Exceeds ANSI/TIA/EIA-568-C.2 Category 6 requirements |   Backwards Compatible with All Lower Rated Category Components |   Rear cable management bar |   Cage nuts and mini cable ties included |   110 Style Termination Blocks

  Application

|   Premise wiring Voice/Data |   Local Area Networks |   Suitable for systems with a high level of noise and interference |   Applied in Category 6 connection

Product Parameters   ComplianceConform to TIA/EIA 568C.2 Category 6ISO/IEC 11801:2002 CLASS E&ANSI/TIA/EIA568B.2-1Type48 PortCategoryCategory 6DesignUnshieldedConnection Type110Panel FrameCold Rolled Steel with powder coating in Black colorRJ45 HousingPBT+15% GF UL 94V-0RJ45 ContactMaterial: PC UL 94V-0Phosphor Bronze with 50-60 micro-inch Nickel PlatedContact Min.3mm 50Mio-inch Gold PlatedIDC HousePC,UL 94V-2Phosphor Bronze with 50micro-inch Tin-Lead PlatedOver 50-60 micro-inch Nickel PlatedCable wire22-26AWG stranded and SolidJack HousingABS ,High Impact, Flame Retardant Plastic, UL 94V-0Jack Life750 Times Min.Insertion Force30N Max.Retention Strength7.7kgs between Jack and PlugVoltage Rating125 VAC RMSCurrent Rating1.5 AMPContact Resistance100 Milliohms Max.Insulation Resistance1000 Megohms Min @500 VDCDielectric Strength750 VAC RMS 60Hz,1MinOperating Temperature-40~70ºCStorage Temperature-40~85ºCLength(mm)482.6Width(mm)44.4Depth(mm)30.9Mounting method19" Rack mountingColorBlack   |   T568A & T568B wiring sticker on PCB |   The Cat 6 channel transmission performance complies with TIA/EIA 568 C.2 1G & ISO/IEC 11801 standard |   Fits Standard 19" Racks and Cabinets Numeral marking of ports on the front side of the panel |   Color and numeral marking of IDC modules on the rear side of the panel |   Provides Excellent Performance for Data Networks |   Requiring Maximum Speed and Bandwidth |   Exceeds ANSI/TIA/EIA-568-C.2 Category 6 requirements |   Backwards Compatible with All Lower Rated Category Components |   Rear cable management bar |   Cage nuts and mini cable ties included |   110 Style Termination Blocks   About Us
