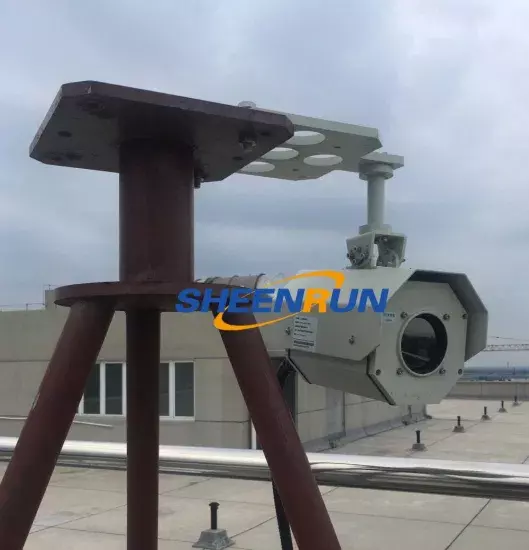

Customized Short Range 1km Thermal Camera

Model NO. SIR 20 Sensor CMOS HDMI Format 1080P Horizontal Resolution 480tvl Kind Autofocus Lens Certification CE, FCC, ISO9001: 2000 Feature Waterproof / Weatherproof, High Definition, Mini Size, Vandal-proof, Auto BLC Effective Distance 1320m Sensor Size 1/3 inch Remote Control With Remote Control Power Supply DC12V International Protection IP66 Power Supply Interface DC12V Focal Length 20mm Detect Distance People(1.8m X 0.5m) 480m Detect Distance Vehicle(2.3m X ;2.3m) 1320m Transport Package Wooden Case/Carton Specification 251mm x 115mm x 117mm Trademark CZVZ Origin Jinan, Shandong, China Production Capacity 5000

Product Description

  SIR-20 Thermal Camera  Product Features  384×288 High resolution uncooled focal array detector  image quality fine,observe small target more clearly,further detection distance  High sensitivity, NETD can reach 60mk and frame at 25Hz  Image noise reduction processing,add DDE function; output hot white/ hot black/pseudo color  Low power consumption, quick start-up, stable performance, image clearly with high uniformity  RS 485 interface control, analog video signal output  Simple operation,easy to use and maintain  Precision casting aluminium alloy shell,sealed and waterproof,nitrogen inside, anti-harsh environment,overlength working lifetime Monitoring distance Object People(1.8m×0.5m) Vehicle(2.3m×2.3m) Detect distance 480m 1320m Recognize distance 120m 330m Identification distance 60m 160m Thermal lens Focal length 20mm FOV 22.9°(HFOV) x 18.2° (VFOV) F value 1.0 Lens control Electronic zoom/focus(auto focus is optional) Detector Detector type Uncooled FPA detector  Pixel 324x256 Spectrum 8~14μm NETD ≤60mK Frame 25Hz NUC Auto/Manual/Background correction Image process DDE,pseudo color Video output PAL Interface Power supply interface DC12V Other interface RS485,BNC Video output Environmental indicators Working temperature -25ºC~+55ºC Storage temperature -40ºC~+65ºC International protection IP66 Anti-vibration GB/T 4857.10-2005 Anti-impact GB/T 15412-94 Free drop test method Anti-thunder 2000V Power Power supply DC12V(attached AC220V/DC12Vpower adapter) Power consumption ≤8W Physical features Weight ≤1.8Kg Size 251mm×115mm×117mm(L×W×H,contain sunshield cover) Installation Outdoor base install
