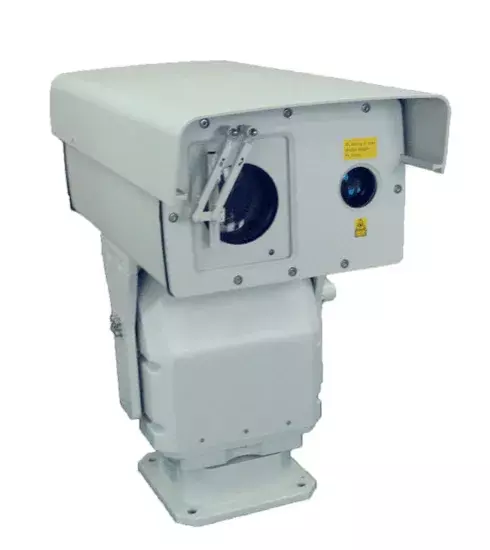

CMOS Sensor Pan Tilt Head IR Laser Night Vision Camera

Model NO. SHR-HLV3020 Sensor CMOS HDMI Format 1080P Horizontal Resolution 640X512 Resolution Kind Autofocus Lens Certification CE, FCC, ISO9001: 2000 Feature Waterproof / Weatherproof, High Definition, Vandal-proof Effective Distance 6.5km Remote Control With Remote Control Detection Distance Day Vision: 6.5km, Night Vision:3km Laser Illumination Lens 100mm Zoom Laser Telephoto Lens Laser Illuminator Power 20W Illuminator Wave Length 810nm Visible Light Camera Sensor 1/1.8" Progressive Scan CMOS Video Code Format H.264/H.265/Mjpeg Pantilt Load Capacity 50kg Top Mount Pantilt Preset 255 Pantilt Cruising Function 2 Paths,64 Presets Each Path Protection Grade IP66 Transport Package Carton/Wooden Package Trademark CZVZ Origin Shandong, China Production Capacity 1000set/Month

Packaging & Delivery

Package Size 60.00cm * 50.00cm * 70.00cm Package Gross Weight 50.000kg

Product Description

CMOS Sensor Pan Tilt Head IR Laser Night Vision Camera Product Description



Features: > Synchronous zooming laser illuminating system, long illuminating distance, large illuminating range, can monitor in 0LUX completely black > Day and night low illuminance 2 megapixel color to black camera, day and night continuous monitoring > MCIC multi-tube core fusion mixed mode light homogenization technology > Supporting fog penetration, backlight compensation, multistage wide dynamic  > Optional auto focusing function, realizing multiple focusing mode and triggering mode > Supporting camera back focal length fine adjustment technology and camera remote debugging  > Supporting long focal length speed limit and 3D locating function > Abundant network protocol and good network applicability, adapting all kinds of netork environment > External MMA fine adjustment mechanism, no need to disassemble to complete laser alignment adjustment   Technical Data:                      Model                                                   SHR-HLV3020 Monitoring distance Night vision 3000m Day vision 6500m Laser illuminator Power 20W Illumination lens 100mm zoom laser telephoto lens Wave length 810nm Angle 0.3°-30° continuous change Light homogenization MCIC even light technology Imaging lens Focal length 12.5-750mm FOV 0.6°-35° Auto focus Support(optional) Fog penetration Support(optional) Visible light camera Sensor 1/1.8" Progressive Scan CMOS Coding mode H.264/H.265/MJPEG Video resolution 1080P, CIF, supporting three data rates Video bitrate 32Kbps-16Mbps Video frame rate 1-25f/s(50Hz), 1-30f/s(60Hz) Pantilt Angle Pan 360° continuous, tilt -45° to +45(-60°~+20° optional) Speed Pan 0.01°-20°/s, tilt 0.01°-10°/s Presets 255, supporting lens zoom focus presets, 2paths, 64 presets each path Anti-lighting 2000V Load Capacity 50kg top mounted Interface Power supply DC 30V Network interface 1x10base-T/100Base-TX, RJ45 interface Environmental indicators Working temperature -25ºC~÷55ºC Storage temperature -40ºC ~÷65ºC Protection level IP66 Power supply Power AC 90V-295V to DC30V/5A ±5% /2.5A, waterproof power adapter Consumption ≤150W Physical features Weight 50kg Installation Outdoor base install   Application



Application:   It is widely used for the workshop monitoring, power station inspection, high speed railway,  road patrol, forest anti fire and coastal defense etc. Packaging & Shipping



   Package&Shipment:   Wooden / carton package means will be supplied to ensure the transport safety.   FAQ

  FAQ:

 Q: 1. Is sample order available?        Yes, we can accept the sample order for testing. Q: 2. Do you have the MOQ requirement?         The MOQ is 1 piece. Q: 3. Do you support technical supporting for the installation and operation?          Yes, we have professional technician to supply solution for you. Q: 4. What is the lead time?          It depends on the order quantity. Q: 5. How to ship the products?         For small order, it's usually shipped by express, like FEDEX, DHL, UPS or TNT etc.         For bulk order, it can be shipped as customer's need. Q: 6.What is the warranty for the product?        The warranty is 1 year. Q: 7. How about your after sale service?         Any problem about our product, please contact with us at any time. Q: 8. Do you accept the OEM product?          Yes, we can produce the product as customer requirement.   Company Profile

Company Introduction:

More Products You Can Review, Pls Click The Picture for Detail Information              Long Range Thermal Camera                                             Multisensor Thermal Camera                                  Heavy Duty Pan Tilt
