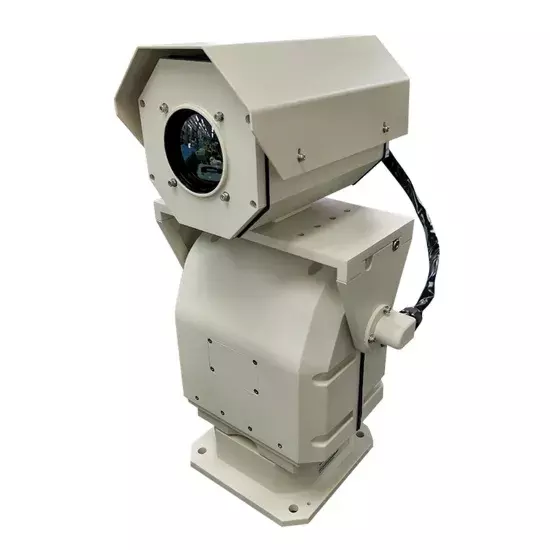

City/Crossroad Monitoring PTZ Thermal Camera

Model NO. SHR-TIR63 Sensor Uncooled Vox HDMI Format PAL/NTSC Kind Autofocus Lens Certification CE, FCC, ISO9001: 2000 Feature Waterproof / Weatherproof, High Definition, Auto BLC Effective Distance ≧30m Remote Control With Remote Control Detection Distance 1.4km to Human, 4km to Vehilce Recognition Distance 360m to Human, 990m to Vehilce Lens 20~60mm,3* Optical Zoom Detector Uncooled Detector Vox Resolution 324*256 Transport Package Wooden Case/Carton Specification CE, FCC Trademark SHEENRUN Origin China Production Capacity 1000 Units / Month

Product Description

1  Product Features   *  324×256 High resolution uncooled microbolometer infrared focal plane arrays,vox *  25µm super small pixel,image quality fine,observe small target more clearly,further detection distance *  High sensitivity, NETD can reach 50mk and frame at 25Hz *  Word originate 20~60mm continuous zooming,can search in a wide range as well as identify target far,don't lost    target *  Image noise reduction processing,add DDE function; output hot white/ hot black/pseudo color *  Low power consumption, quick start-up, stable performance, image clearly with high uniformity * RS 485 interface control, analog video signal output * Simple operation,easy to use and maintain * Precision casting aluminium alloy shell,sealed and waterproof,nitrogen inside, anti-harsh environment,overlength working lifetime 2 Technical indicators    Monitoring distanceObjectPeople(1.8m×0.5m)Vehicle(2.3 m×2.3 m)Detect distance1440m3960mRecognize distance360m990mIdentification distance180m480mThermal lensFocal length20~60mm,3x optical zoomFOV7.6°×6.1°~22.6°×18.2°F1.0Lens controlElectronic zoom/focus(auto focus is optional)DetectorDetector typeUncooled FPA detector(vox)Pixel324×256,pixel 25µmSpectrum8~14μmNETD≤50mKFrame25HzNUCAuto/Manual/Background correctionImage processDDE,pseudo colorVideo outputPALInterfacePower supply interfaceDC12VOther interfaceRS485,BNC Video outputEnvironmental indicatorsWorking temperature-25ºC~+55ºCStorage temperature-40ºC~+65ºCInternational protectionIP66Anti-vibrationGB/T 4857.10-2005Anti-impactGB/T 15412-94 Free drop test methodAnti-thunder2000VPowerPower supplyDC12V(attached AC220V/DC12Vpower adapter)Power consumption≤8WPhysical featuresWeight≤1.8KgSize251mm×115mm×117mm(L×W×H,contain sunshield cover)InstallationOutdoor base install 3 Demo photo                         4 Company photos
