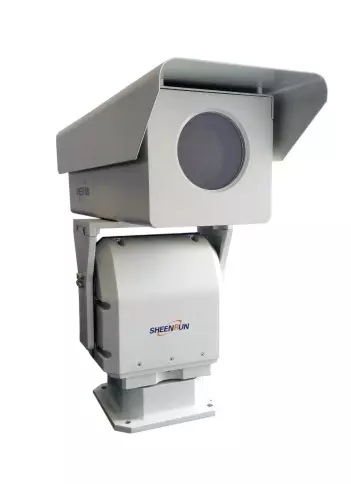

China Sheenrun Daylight Camera 2km (HV1020)

Model NO. SHR-HV1020 Sensor CMOS HDMI Format 1080P Horizontal Resolution 600tvl Kind Autofocus Lens Certification CE, FCC, ISO9001: 2000 Feature Waterproof / Weatherproof Effective Distance 2km Sensor Size 1/1.8′′ Remote Control With Remote Control Daytime Vision Distance 2km Pixel 2.1 Mega Pixel International Protection IP66 Transport Package Carton / Wooden Case Specification CE FCC Trademark CZVZ Origin Shandong Province, China Production Capacity 1000 Units / Month

Product Description

1 Technical indicators   Monitoring  distance Daytime vision 2000m Imaging lens Focal length 10~320mm,3x IR correction HD lens Aperture F2.5~F1500 FOV 1.2°~38.5° Automatic focus optional Camera sensor 1/1.8 inch progressive scan CMOS Color mode integrated ICR double filters day and night switch,  day and night dual mode parameter settings Minimum illumination 0.1Lux(color), 0.01 Lux(black and white) Shutter speed 1/25~1/100000 seconds Effective pixel 2 mega pixel Camera control Support auto iris, auto white balance, support manual  and automatic day and night mode switch WDR ON / OFF backlight  compensation ON / OFF and regional options Interested area ON / OFF and regional options Back focus  trimming technologies support,remote debugging Noise reduction 3D digital noise reduction, signal to noise ratio>50dB Coding format H.264 Video resolution 2 mega pixel progressive scanning CCD,moving  images do not have sawtooth,Can output HD 1080P  exceptional color performance image Video bit rate 32Kbps~16Mbps Video frame rate 50Hz:25fps (1920 × 1080) Subtitles superimposed Logo, date, time Image adjustment Brightness, contrast, saturation, sharpness Network  protocol TCP/IP,HTTP,DHCP,DNS,DDNS,FTP,NTP, PPPOE,RTSP,UDP,UPNP,SMTP,RTP shield material Precision casting aluminum alloy structure Integrated single window design Window glass 4mm microcrystal ultra clear optical glass Surface spraying PTA three-resistance (moisture-proof, fungi-proof and salt fog-proof) coating ,seawater corrosion resistant pantilt upload 18kg Pan angle 360° Tilt angle -60°~+20° Pan speed 0.1°~9°/s Tilt speed 0.1°~4°/s presets 255 Presets precision ±0.2° Self cruising 8 paths, each path can set 10 presets Auxiliary switch 2 sets Lightning proof 2000V dimensions 265×180×315(mm) interface Power interface DC30V Internet interface RJ45,10M/100M adaptive Ethernet port Environmental  indicators Working temperature -25ºC~+55ºC Storage temperature -40ºC~+65ºC International protection IP66 Anti-salt fog 48 hours of continuous spray under PH 6.5-7.2 Power Working power DC30V,equipped with waterproof wide power supply Whole device  power consumption ≤80W Physical  features Whole device weight ≤20kg(pantilt included) installation Outdoor base installation      2  After-sale service   -  We offer one year warranty.    - Email/ Skype/ Trade manager online to support.   - Life-long technical support.   - Professional technical team and salesperson help you with  troubleshooting procedures via Internet and Phone any time  when needed.   - Door-to-door service if necessary.
