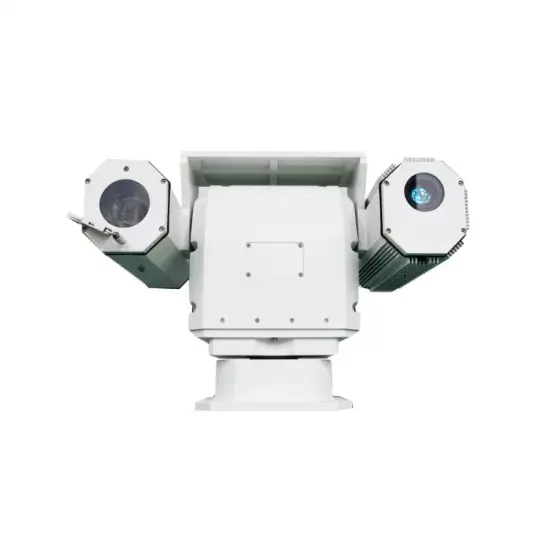

CCTV Long Range 1000m Day Night Vision HD IP Multi Sensor Network Laser PTZ Camera

Model NO. SHR-HLV535 Sensor CMOS Horizontal Resolution 1920X1080 Resolution Kind Autofocus Lens Certification CE, FCC, ISO9001: 2000 Feature Waterproof / Weatherproof, High Definition, Vandal-proof Effective Distance ≧30m Sensor Size 1/3 inch Remote Control With Remote Control Laser Illuminator Power 5W Illuminator Wave Length 810nm Visible Light Camera Lens 4.3-129nm, 30X Optical Zoom Video Code Format H.264/H.265/Mjpeg Pantilt Preset 256 Pantilt Cruising Function 6 Paths Protection Grade IP66 Detection Distance in Day Time 1000m Detection Distance in Night Timee 800m Transport Package Carton/Wooden Package Specification 240mmx374mmx243mm Trademark CZVZ Origin Shandong, China Production Capacity 1000set/Month

Product Description

CCTV Long Range 1000m Day Night Vision HD IP Multi Sensor Network Laser PTZ Camera   Features: > Adopting laser illuminating system, far illuminating distance, wide illuminating range, can monitor in 0LUX completely black > Day and night low light megapixel color to black camera, day and night continuous monitoring > Auto white balance, auto gain control, auto exposure control > High performance video processing chip and H.264 high efficiency video code, providing millions of high definition video frame  > Dual stream function, small time delay, fully satisfying different network banwidth > Fully supporting ONVIF, GB/T28181 providing SDK, can dock with main monitoring platform in domestic and overseas > Capturing and videoing, supporting WEB browsing video, provide access to NVR platform to conduct parameter configuration and operation state management > Adopting high performance power supply program, wide voltage input, low power consumption, suitable for special power supplying mode such as solar power  Technical Data:                      Model                                                   SHR-HLV535 Monitoring distance Night vision 800m Day vision 1000m Laser illuminator Power 5W Wave length 810nm Angle 0.7°-50° Light homogenization MCIC Visible light camera Sensor 1/2.8" Progressive Scan CMOS Total pixels 2.1MP Lens focal length 4.3-129mm,30x optical zoom Lens aperture F1.6-4.4 Min Lux 0.05Lux(color), 0.01Lux(black and white) Camera control Auto gain control, auto white balance, auto backlight compensation, supporting manual and auto day and night mode switch Video coding Coded format H.264/H.265/MJEPG Video resolution 1920x1080 Bitrate 64Kbps-4Mbps Frame rate 1-25f/s(50Hz), 1-30f/s(60Hz) Pantilt Angle Pan 360° continuous, tilt -90° to +90° Speed Pan 0°-80°/s, tilt 0°-60°/s Presets 256 Cruising function 6 paths Interface Network interface 1x10Base-T/100Base-TX,RJ45 Power supply interface 1xDC 24V socket, for external power adapter Audio interface 1xLine In, 1xLine out Alarm interface 1 switch input, 1 switch output Environmental indicators Working temperature -25ºC~÷55ºC(-40ºC to +55ºC optional) Storage temperature -40ºC ~÷65ºC Protection level IP66 Anti-Vibration GB/T 15211-1994 5.4 SEVERITIES LEVEL 2 Anti-impact GB/T 15211-1994 5.3 SEVERITIES LEVEL 3 Anti-salt fog GB/T2423.17-2008 Power supply Power DC 24V±5% /2.5A, equipped with 220VAC~24VDC/4.2A, waterproof power adapter Consumption ≤60W Physical features Weight ≤14kg Size(including sunshield cover) 240mmx374mmx243mm (LXWXH) Application:                        High altitude monitoring system                                  Railway monitoring system                                  Harbor monitoring system         Package&Shipment:   Wooden / carton package means will be supplied to ensure the transport safety.   FAQ: 1. Q: Is your company manufacturer?           Yes, CZVZ is the thermal camera and laser camera manufacturer since year 2004. 2. Q: Can you supply OEM service?          Yes, CZVZ can do OEM products as customer's requirement. 3. Q: What is the product's lead time?          It is confirmed by the order quantity. 4. Q: What is the warranty?          It is generally 1 year warranty, extend warranty is available. 5. Q: How will the product be shipped?          For sample order, it will be shipped by DHL, FEDEX, UPS or TNT.          For bulk order, we can arrange the shipment as customer requirement. 6. Q: How about your after sale service?          Any problem about our product, you can contact with us at any time. Our team will supply technical service for you. Company Introduction: CZVZ company, which was founded in year 2004, is one of the largest manufaturer of long range thermal imaging camera and laser night vision camera, as well as a relying Academician serveillance Engineering Technology Research Center in China. CZVZ adheres to independent innovation, which developed the world's first laser night vision camera,  and the continuous zoom infrared thermal imaging technology has reached the international advanced standard level.  The laser night vision and infrared thermal imaging products have been widely used in nation defense, safe cities, railways, highways, forest fire, oil and other fields, achieved all-weather surveillance, provided technical support for the maintenance of national security and socal stability. The company photo:  The exhibition:
