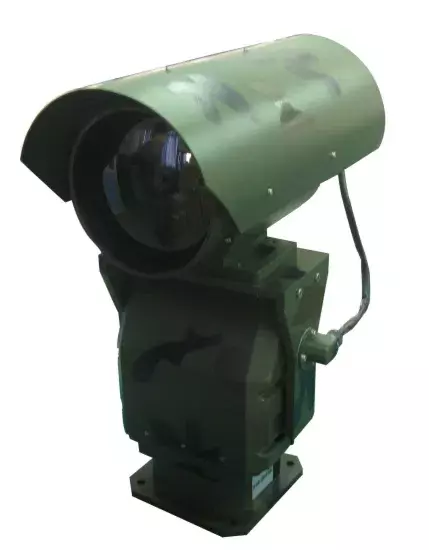

Border Wall Defence IP Long Range Uav Detection PTZ Night Vision Thermal Imaging Security Camera

Sensor CMOS HDMI Format 1080P Horizontal Resolution 384X288 Resolution Kind Autofocus Lens Certification CE, FCC, ISO9001: 2000 Feature Waterproof / Weatherproof, High Definition, Vandal-proof Effective Distance ≧30m Sensor Size 1/3 inch Remote Control With Remote Control Thermal Lens F Value 1.0 Detector Type Uncooled Fpa Detector Detector Resolution 384X288, Pixel 17um Netd Less Than 50mk Video Output PAL/NTSC Pantilt Preset 200 Protection Grade IP66 Transport Package Carton/Wooden Package Specification 265mmx180mmx432mm Trademark CZVZ Origin Shandong, China Production Capacity 1000set/Month

Product Description

Border Wall Defence IP Long Range UAV Detection PTZ Night Vision Thermal Imaging Security Camera   Features: > High resolution uncooled microbolometer infrared focal plane array, vox > 17um pixel, image quality fine, observe small target more clearly, further detection distance > high sensitivity, NETD can reach 50mK and frame at 25Hz > Image noise reduction processing, add DDE function;  output hot white/hot black/psudo color > Lower power consumption, quick start-up,stable performance, image clearly wih high uniformity > RS 485 interface control, analog video signal output > Simple operation, easy to use and maintain > Precision casting aluminum alloy shell, sealed and waterproof, nitrogen inside, anti-harsh environment, super long working lifetime.  Technical Data:                      Model                                                   SHR-TIR104R Monitoring distance Object Human(1.8mx0.5m) Vehicle(2.4mx2.4m) Detection 2800mm 8000mm Recognition 700mm 2000mm Identification 350mm 1000mm Thermal lens Focal length 25~100nm, 4x optical zoom FOV 3.7°x 2.8° ~ 14.9°x11.2° F value F1.0 Lens control E-zoom, E-focus(auto focus is optional) Detector Type Uncooled microbolometer FPA detector (vox) Resolution 384x288, pixel 17um Spectrum 8-14um NETD ≤50mK Frame rate 25Hz FFC Auto/manual/background correction Image process DDE, pseudo color Video output PAL/ NTSC Pan-tilt Load capacity 18kg Rotate angle  Pan: 0°~360°; Tilt: +20°~-60° Rotate speed Pan: 0.1°/s ~9°/s; Tilt: 0.1°/s ~ 4°/s Preset 200 Auto cruise 8 paths, each has 10 presets Interface RS422, RS485 Protocol Pelco-D, Pelco-P optional Power supply AC 24V±20%, 50/60Hz; DC 28V±20% Power consumption ≤80W Protection level IP66 Environmental indicators Working temperature -25ºC~÷55ºC Storage temperature -40ºC ~÷65ºC Anti-Vibration GB/T 4857.10-2005 Anti-impact GB/T 15412-94 Free drop test method Anti-thunder 2000V Physical features Weight ≤14kg Size(including sunshield cover) 390mmx180mmx488mm (LXWXH) Installation Outdoor base installation Application:     Harbor Monitoring System                                    Patrol Vehicle Surveillance System                           Oilfield Monitoring System         Package&Shipment:   Wooden / carton package means will be supplied to ensure the transport safety.   FAQ: 1. Q: Is your company manufacturer?           Yes, CZVZ is the thermal camera and laser camera manufacturer since year 2004. 2. Q: Can you supply OEM service?          Yes, CZVZ can do OEM products as customer's requirement. 3. Q: What is the product's lead time?          It is confirmed by the order quantity. 4. Q: What is the warranty?          It is generally 1 year warranty, extend warranty is available. 5. Q: How will the product be shipped?          For sample order, it will be shipped by DHL, FEDEX, UPS or TNT.          For bulk order, we can arrange the shipment as customer requirement. 6. Q: How about your after sale service?          Any problem about our product, you can contact with us at any time. Our team will supply technical service for you. Company Introduction: CZVZ company, which was founded in year 2004, is one of the largest manufaturer of long range thermal imaging camera and laser night vision camera, as well as a relying Academician serveillance Engineering Technology Research Center in China. CZVZ adheres to independent innovation, which developed the world's first laser night vision camera,  and the continuous zoom infrared thermal imaging technology has reached the international advanced standard level.  The laser night vision and infrared thermal imaging products have been widely used in nation defense, safe cities, railways, highways, forest fire, oil and other fields, achieved all-weather surveillance, provided technical support for the maintenance of national security and socal stability. The company photo:  The exhibition:   You may also like :
